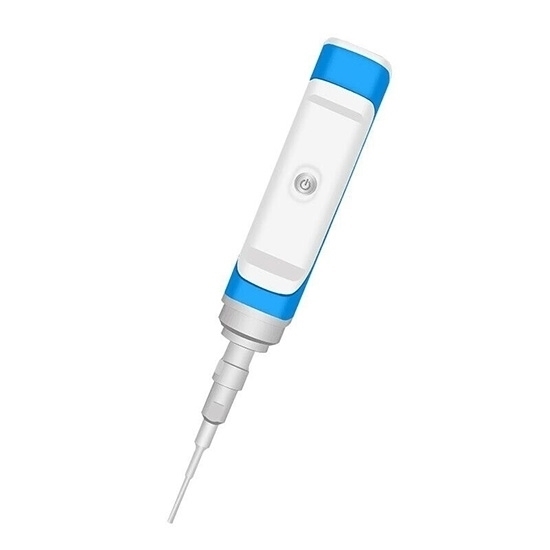

0.1-300ml Handheld Ultrasonic Homogenizer

Portable ultrasonic homogenizer can be hand-hels or can be fixed with a bracket. 0.1-300ml mini handheld homogenizer used in a variety of ways, especially for the ultrasonic treatment of trace or small amount of sample.

Features:

• Integrated structure design, compact shape, lightweight and exquisite.
• Adotps with titanium alloy material which has high strength, strong corrosion resistance and long service life.
• Frequency tracking and amplitude compensation adopt automatic mode, with stable load and high electro-acoustic conversion rate.

Specification:

• Model: ATO-HUH-MINI300 (300ml)
• Power: 300W
• Input Voltage: 100-230VAC
• Frequency: 30 KHz
• Capacity: 0.1-300 ml
• Horn Material: titanium alloy
• Optional Horn: 1.5, 2, 3, 6, 8 mm
• Single Interval Time: 0.1-99.9s
• Single Ultrasound Time: <30 min
• Operation Mode: continuously

Dimension:

Application:

Tips: Is the Sonicator a Homogenizer?

Yes, a sonicator can be considered a type of homogenizer. A sonicator, also known as an ultrasonic homogenizer, is a device that uses high-frequency sound waves to disrupt and break down samples. It operates by creating cavitation, which produces intense vibrations that can disrupt cell walls, break apart particles, and emulsify substances. This process effectively homogenizes samples by reducing particle size and achieving uniformity. However, it's worth noting that there are other types of homogenizers available, such as mechanical homogenizers and bead mill homogenizers, which utilize different mechanisms for achieving sample homogenization.
