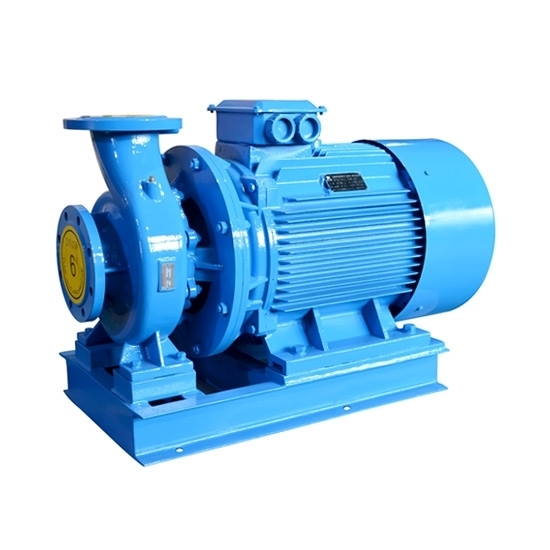

    100 hp Horizontal Centrifugal Pump, Single Stage

    $12,154.09
    Good price centrifugal pump has 100 hp motor power, with horizontal structure. 3-phase centrifugal water pump with same diameter of inlet and outlet 80mm (3 inches), optional input voltage from AC 220V to 480V, input frequency 50Hz/ 60Hz for selection. Horizontal centrifugal pump can be used for high-rise building pressurized water supply, HVAC & refrigeration water circulation, etc.
    *
    *
    SKU: ATO-HCP-075kW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Centrifugal water pump featuring maximum flow 130 m³/h (572 gpm), maximum head 132m (433ft) and 315mm nominal diameter of impeller. Single stage centrifugal water pump has advantages of stable operation, low noise, low failure rate, convenient maintenance, and less land occupation.

    Features:

    1. The centrifugal pump has the horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
    2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
    3. Horizontal centrifugal pump can be operating in series and parallel connection according to the requirements of flow and head.
    4. The installation angle of pump outlet can be 0°, 90° and 180° to meet different connection occasions.

    Specification

    • Model: ATO-HCP-80-315I
    • Power: 100 hp (75 kW)
    • Number of stages: Single stage
    • Input voltage: AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    • Input frequency: 50Hz/ 60Hz
    • Inlet diameter: 80mm (3 inch)
    • Outlet diameter: 80mm (3 inch)
    • Flow (min. flow to max. flow): 70 m³/ h (308gpm), 100 m³/ h (440gpm), 130 m³/ h (572gpm)
    • Head (max. head to min. head): 132m (433ft), 125m (410ft), 114m (374ft)
    • Efficiency: 55%/ 66%/ 67%
    • Nominal diameter of impeller: 315mm
    • Size: 650*1210*560mm
    • Weight: 675kg

    Dimension (mm)

    Boundary dimension h H L a A
    325 650 1210 125 85
    Base dimension L1 B I b h1 4-φd1
    900 560 820 360 100 4-φ22
    Flange dimension D D1 n-φd
    φ200 φ160 8-φ18

    Horizontal centrifugal pump dimension

    Tips: Requirements for the Centrifugal Water Pump Installation Position.

    The premise of continuous operation of the centrifugal pump is that the suction pipe must be filled with water before the pump start-up, otherwise the water will not be sucked up. In order to ensure that the suction pipe has no evacuation phenomenon due to pumping termination, it is necessary to solve the problem that the water suction pipe can be filled with water in both water pump stoppage and operation conditions. There are two installation position on site:

    1. The pump spindle is located below the water surface of the suction pool. This method is also called self-irrigation method. In other words, regardless of whether the water pump is running or not, the suction pipe is always under the action of the hydrostatic pressure of the water surface and the hydrostatic pressure of the water level of the pool to the center height H of the suction pipe, the suction pipe is always in a status of full of water.
      This method is quite common. The water pump can be started and stopped at any time requiring no measures.
    2. The water pump spindle is above the suction water level. When the water pump stops operating, the water in the suction pipe will flow back into the pool by the elevation difference. The suction pipe will be drained. If the water pump is started once again, it is required to fill in the suction pipe. However, such an operation is not practical. At this moment, it is only required to install one bottom valve on the end of the suction pipe(namely play the role of the  check valve), the emptying condition of the suction pipe can be stopped.
      In such installation means, one water pump can be connected on the water outlet pipe of the water pump for water filling. The air in the suction pipe and pump body can be eliminated through the vent valve on the pump body. Generally, if the bottom valve has no fault, the water pump can work normally.
    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months
