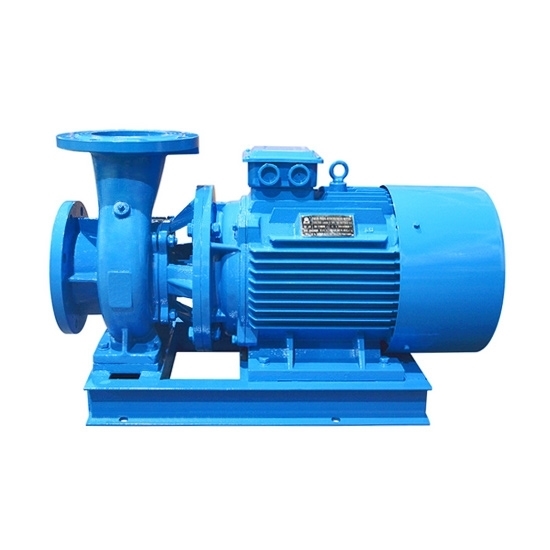

    10 hp Horizontal Centrifugal Pump, Single Stage

    $2,518.44
    Single stage centrifugal pump has horizontal structure, maximum flow 8.3 m³/ h (36.5 gpm), maximum head 82m (269ft), centrifugal water pump with same diameter of inlet and outlet 40mm (1-1/ 2 inch), 0°, 90° and 180° installation angle of outlet. 3 phase horizontal centrifugal pump with cheap price can be used for cool water pressurization in air conditioner, refrigeration equipment, bathroom, etc.
    *
    *
    SKU: ATO-HCP-7500W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Horizontal end suction centrifugal pump has optional input voltage AC 220V/ 240V/ 380V/ 400V/ 415V/ 460V to 480V, optional input frequency 50Hz/ 60Hz, 2900rpm motor speed. Small centrifugal pump has a wide range of performance adaptations, small size, simple structure, easy operation, and low operating costs.

    Features:

    1. The centrifugal pump has the horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
    2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
    3. Horizontal centrifugal pump can be operating in series and parallel connection according to the requirements of flow and head.
    4. The installation angle of pump outlet can be 0°, 90° and 180° to meet different connection occasions.

    Specification

    • Model: ATO-HCP-40-250
    • Power: 10 hp (7.5 kW)
    • Number of stage: Single stage
    • Input voltage: AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    • Input frequency: 50Hz/ 60Hz
    • Inlet diameter: 40mm (1-1/2 inch)
    • Outlet diameter: 40mm (1-1/2 inch)
    • Flow (min. flow to max. flow): 4.4 m³/ h (19.4gpm), 6.3 m³/ h (27.7gpm), 8.3 m³/ h (36.5gpm)
    • Head (max. head to min. head): 82m (269ft), 80m (262ft), 74m (243ft)
    • Efficiency: 24%/ 28%/ 28%
    • Nominal diameter of impeller: 250mm
    • Size: 465*640*330mm
    • Weight: 125kg

    Dimension (mm)

    Boundary dimension h H L a A
    260 465 640 80 55
    Base dimension L1 B I b h1 4-φd1
    450 330 400 230 80 4-φ14
    Flange dimension D D1 n-φd
    φ150 φ110 4-φ18

    Horizontal centrifugal pump dimension

    Tips: Centrifugal Pump Troubleshooting - Overtemperature.

    1. Check the centrifugal pump

    The motor operates with load for a long period, rising the motor temperature. The start is too frequent, or the motor with fixed short-period or discontinuous working system works continuously. The start-up times should be restricted, thermal protection should be accurately selected, and the fixed amount indicated on the motor should be followed.

    2. Check the motor

    Wrong wiring. The △ is connected into Y wrongly, causing the rapid temperature rise of the motor. The stator winding has the problem of interphase short circuit, interturn short circuit or local earthing. In not serious condition, the motor is too hot in some parts. In serious condition, the insulation burnt.

    3. Check the power supply

    The voltage is higher or lower. Under a specific load, if the voltage variable scope exceeds +10% - -5% of the rated value, the motor will be overheated. The three-phase voltage of the power source is asymmetric. If the imbalance degree of the three-phase voltage exceeds 5%, the winding will be overheated. It has phase-deficient operation.

    4. Reason of the working environment

    If the motor winding is wet or has dust or oil being attached on the winding, the insulation will be reduced. The insulation resistance of the motor should be measured, and it is required to conduct regular sweeping and drying treatment.

    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months
