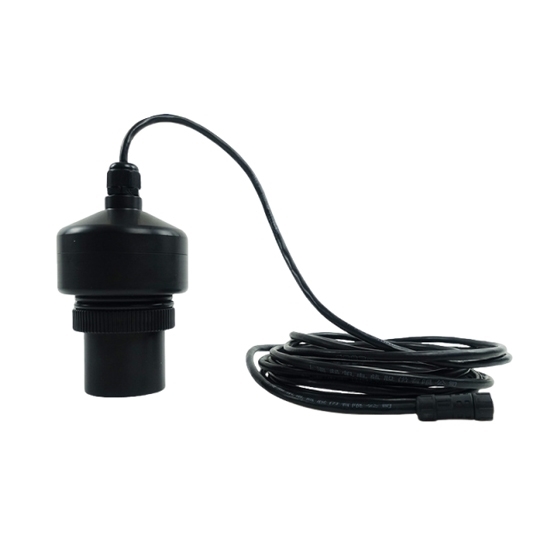

High protection grade IP68 ultrasonic level sensor, to ensure normal operation in humid environments, adapted to the temperature range of -20℃ to 60℃, humidity ≤ 90% RH. device is compact, lightweight and easy to install, support standard G2 thread installation, is the cost-effective choice for tank monitoring, water treatment, liquid level detection.
Specification
Model |
ATO-UC-05PGNZXL |
Sensor Thread |
G2 |
Measuring Range |
1~8m |
Blind Range |
0.35-0.4 meters |
Supply Voltage |
DC 12V, output 1 channel RS485 MODBUS protocol |
Display |
None |
Cable Length |
1 meter |
Cable Outlet |
4-core |
Ambient Temperature |
-20~+60℃ |
Operating Pressure |
One standard atmospheric pressure |
Ambient Humidity |
≤90%RH non-condensing |
Net Weight |
≤1kg |
Feature
- High Protection Level: IP68, short response time.
- Special Function: Complete address setting through RS485 (only 485 output instrument has this function).
- Output Mode: RS485 output, related to power supply voltage.

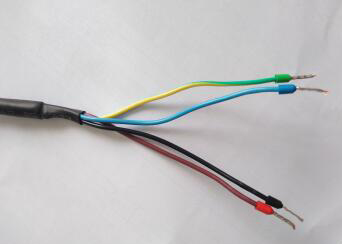

Wiring Drawing
RS485 Communication Wiring Method |
Power Supply |
Red wire or brown wire: 12VDC+ |
Black wire: 12VDC- |
RS485 Communication |
Blue wire: A |
Yellow or yellow-green wire: B |

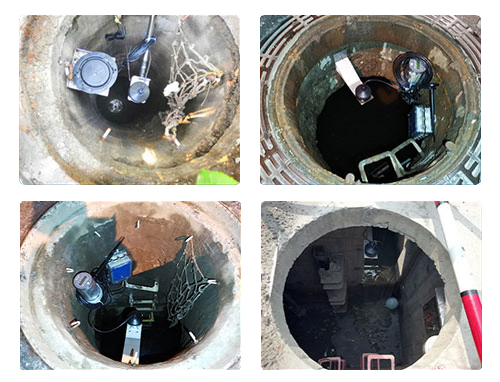

Application
Tips: Wireless ultrasonic level sensor measurement principle
The ultrasonic probe emits ultrasonic pulses, which propagate through the air to the measured water surface, and then return to the ultrasonic probe through the air after reflection, because the time of emission and reception are able to be known, and according to this time × speed of sound ÷ 2 = the distance between the emitting surface of the probe and the water surface.
Calculation formula: D = C * t/2
(divided by 2 because the sound wave is actually a round trip from emission to reception, D is the distance, C is the speed of sound, and t is the time).
If the time difference between emission and reception is 0.01 seconds, the speed of sound is 340 meters/second.
340 meters/second x 0.01 seconds = 3.40 meters
3.40 meters ÷ 2 = 1.70 meters
That is, the distance between the transmitting surface of the probe and the water surface is 1.70 meters.
