Why Do You Need Stepper Motor Drivers?

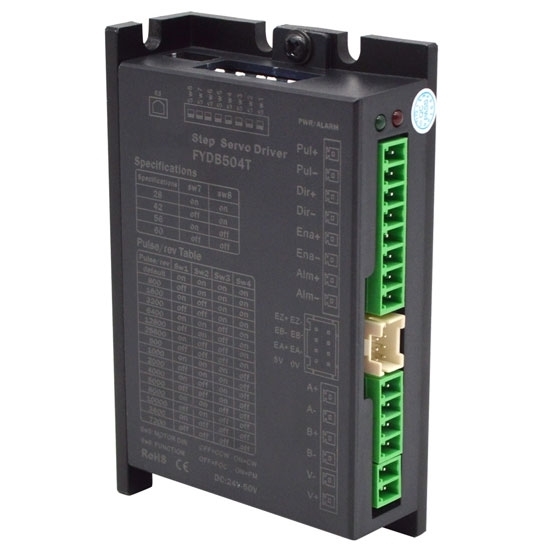

A stepper motor driver is an electronic device used to control the movement of a stepper motor. A stepper motor is a device that converts electrical impulses into mechanical rotation and is characterized by precise position control and a relatively simple drive method. Stepper motor drivers play a key role in many applications, from industrial automation to consumer electronics. ATO store will detail why stepper motor drivers are needed and how they are used in various fields.

Characteristics and Drive Requirements

Stepper motors are characterized by "stepping," where each time an electrical pulse is input, it takes a step forward at a fixed angle. This precise position control allows stepper motors to be used in many applications, for example:

• Precision Positioning: Stepper motors allow precise position control without sensor feedback, which is important in applications that require fixed-point operation, such as CNC machine tools and 3D printers.
• Open-loop Control: Stepper motors can realize motion control through open-loop control, which simplifies the design and debugging process of the control system compared to closed-loop control (which requires position feedback).
• High Torque at Low Speed: Stepper motors are still able to provide high torque at low speeds, which makes them excellent in applications where precise positions need to be driven and torque is required.

There are Problems with Driving Stepper Motors Directly Via Electrical Pulse Signals

• Current Control: Stepper motors require a certain amount of current at each step to ensure stable motion, and direct use of electrical pulse signals can result in insufficient current, which can affect theperformance of the stepper motor.
• Micro-step Motion: In some applications, stepper motors are required to realize smaller step angles, which requires micro-step control of the motor, i.e., a complete step is decomposed into multiple tiny steps.
• Pulse Speed Control: For high-speed motion, stepper motor drives require precise pulse sequences to ensure stable motion without out-of-step or oscillation.

Functions

• Current Control: Stepper motor drivers can control the output current to ensure that the stepper motor has enough current at each step to achieve stable motion.
• Microstepping Control: Stepper motor drivers enable micro stepping control, breaking a full step into multiple tiny steps to achieve finer motion.
• Pulse Generation: The stepper motor driver can generate a precise sequence of pulses to control the stepper motor to move at the desired speed and direction.
• Protection: The stepper motor drivers usually have protection features such as over-current and over-temperature to prevent damage to the motor due to abnormal conditions.
• Communication Interface: Some stepper motor drivers provide communication interfaces (such as UART, CAN, etc.), which enable users to send control commands through external devices and realize more complex control logic.

Application Areas

1. 3D Printers: Stepper motor drivers are used to control the precise movement of print heads, stages, and other components to achieve complex 3D printing.
2. CNC Machine Tools: Stepper motor drivers are used to control the movement of tools on the workpiece to achieve precision cutting.
3. Textile Machinery: Stepper motor drivers are used to control the movement of components in textile machinery, such as weaving and sewing.
4. Medical Equipment: Stepper motor drivers are used to accurately control the movement of medical equipment, such as surgical robots, drug dispensers, etc.
5. Automation Equipment: Stepper motor drivers are used for factory automation in a variety of robotic arms, conveyor belts, and other equipment control.
6. Camera Lens Control: Stepper motor drivers are used in high-end cameras to control the focus and zoom of the lens.
7. Solar Tracker: Stepper motor drivers are used to adjust the angle of solar panels to maximize sunlight capture.

Stepper motor drivers are a key component in realizing precise control of stepper motors. They solve problems such as current control, micro-stepping control, and pulse generation, allowing stepper motors to play an important role in many applications. From industrial automation to consumer electronics, stepper motor drivers are pushing the boundaries of technology to enable more precise and efficient control of mechanical motion.
