Vacuum Pump Price List
Vacuum pump refers to the device that uses mechanical, physical, chemical or physicochemical methods to extract air from the pumped container to obtain vacuum. Generally speaking, a vacuum pump is a device for improving, producing, and maintaining vacuum in a confined space by various means. ATO offers you oilless diaphragm vacuum pump and oil-sealed rotary vane vacuum pump to meet your different applications. The rotary vane vacuum pumps have 1 stage and 2 stage available. They have advantages of light weight, compact size, high efficiency and low noise. Here is an ATO vacuum pump price list for your reference. For more products information, please check the directory of vacuum pump.
Vacuum Pump Price List
| Product | Flow Rate | Power | SKU | Price |
| Oil Free Diaphragm Vacuum Pump | 10L/min | 20W | ATO-VP-1015L | $276.92 |
| 15L/min | 30W | ATO-VP-1015L | $335.08 | |
| Product | Free Air Displacement | Power | SKU | Price |
| 2 Stage Rotary Vane Vacuum Pump | 2.5 CFM/3 CFM | 1/3 HP | ATO-VP-2RS1 | $388.46 |
| 4.5 CFM/5 CFM | 1/2 HP | ATO-VP-2RS2 | $499.23 | |
| 6 CFM/7 CFM | 3/4 HP | ATO-VP-2RS3 | $596.15 | |
| 10 CFM/12 CFM | 1 HP | ATO-VP-2RS4 | $730.96 | |
| 1 Stage Rotary Vane Vacuum Pump | 2.5 CFM/3 CFM | 1/4 HP | ATO-VP-RS1 | $267.88 |
| 3.5 CFM/4 CFM | 1/3 HP | ATO-VP-RS1.5 | $338.15 | |
| 4.5 CFM/5 CFM | 1/3 HP | ATO-VP-RS2 | $416.92 | |
| 6 CFM/7 CFM | 1/2 HP | ATO-VP-RS3 | $482.87 | |
| 8 CFM/9 CFM | 3/4 HP | ATO-VP-RS4 | $563.84 | |
| 10 CFM/12 CFM | 1 HP | ATO-VP-RS6 | $761.53 | |
| Product | Max Gas Volume | Power | SKU | Price |
| Water Ring Vacuum Pump | 27 m3/h | 1 HP | ATO-WRVP-01 | $859.87 |
| 52 m3/h | 2 HP | ATO-WRVP-02 | $972.83 | |
| 80 m3/h | 3 HP | ATO-WRVP-03 | $1,492.21 | |
| 110 m3/h | 5 HP | ATO-WRVP-05 | $1,619.25 | |
| 165 m3/h | 5.5 HP | ATO-WRVP-055 | $2,217.95 | |
| 230 m3/h | 7.5 HP | ATO-WRVP-075 | $2,553.91 | |
| 280 m3/h | 10 HP | ATO-WRVP-10 | $3,006.57 | |
| 400 m3/h | 15 HP | ATO-WRVP-15 | $3,759.26 | |
| 500 m3/h | 20 HP | ATO-WRVP-20 | $5,931.82 |
Note: The prices in the table list are for reference only. If want to get current quotation and other customized products information, please contact us now. Generally, you can get a discount on ATO.com.

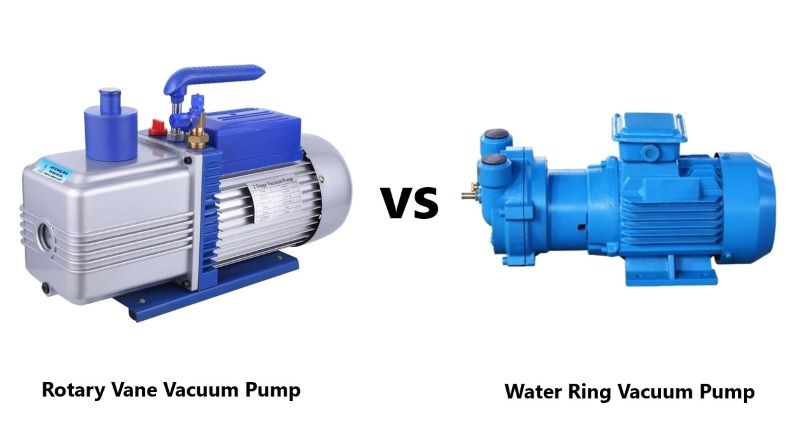

Differences between rotary vane vacuum pump and water ring vacuum pump:
- Working principles: The rotary vane vacuum pump uses rotating vanes placed in slots on a rotor, which expand and contract the working chamber as the rotor turns, thus achieving suction and exhaust. On the other hand, the water ring vacuum pump employs a rotor inside a pump casing to form a water ring, and the variations in the water ring’s volume facilitate suction and exhaust.
- Performance: The rotary vane vacuum pump can reach a higher vacuum level and features a compact design with straightforward operation and maintenance. However, it relies heavily on oil, requiring regular lubrication changes. The water ring vacuum pump operates smoothly and quietly, effectively handling gases containing water vapor or corrosive elements, but it offers a relatively lower vacuum level and demands high-quality working liquid (water), consuming some amount of water during operation.
- Application scenarios: The rotary vane vacuum pump is widely used in laboratories, pharmaceuticals, and electronics industries where a higher vacuum level is needed. Conversely, the water ring vacuum pump is suitable for chemical, pharmaceutical, and food processing industries that need to remove large amounts of water vapor or other gases, particularly in environments requiring efficient moisture handling.
