    Ultrasonic Thickness Gauge Price List

    The ultrasonic thickness gauge is a kind of portable measuring instrument that adopts ultrasonic measuring principle. The ultrasonic pulse emitted by the probe passes through the measured object to reach the material interface and the pulse is reflected back to the probe, so the thickness of the material can be determined by accurately measuring the time that the ultrasonic wave propagates through the material. The ultrasonic thickness gauge is suitable for a variety of material thickness measurements which can be propagated in its internal by the ultrasonic wave at a constant speed and can be reflected from the back.

    The thickness measuring instrument can be widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection industry and other testing fields. In addition to accurate measurement of various plates and various processing parts, various pipes and pressure vessels in the production equipment can also be tested to monitor the degree of thinning after corrosion in the use of them. Therefore, ultrasonic thickness gauge is a necessary special equipment for material protection.

    Portable Ultrasonic Thickness Gauges

    The ultrasonic thickness gauge on ATO store can measure the thickness quickly, non-invasive and accurately. With high reliability and accuracy, the thickness gauge comes with various functions in different models and comes with various probes to meet the needs of different measuring ranges. It can measure the thickness of metal material, high-temperature pipe, plate (steel plate, aluminum plate), plastic, iron pipe, PVC pipe, glass and other materials. With the thru-coating function (for some models), the ultrasonic thickness gauge can also non-invasively measure coated materials such as paint layers on the surface of the workpiece. The table below introduces a price list and simple function comparison of ATO ultrasonic thickness guage. For the detailed functions of each models, please move to the product page - ultrasonic thickness gauge.

    ATO ultrasonic thickness gauge price list

    Name Model Total Measuring Range Price Function
    Handheld Ultrasonic Pipe Thickness Gauge ATO-UM-1 0.8mm-100mm $952.38 N/A
    ATO-UM-1D $1,269.84 Thru coating
    Portable Ultrasonic Pipe Thickness Gauge ATO-UM-2 0.8mm-100mm $1,349.21 N/A
    ATO-UM-2D $1,571.43 Thru coating
    Digital A-Scan Ultrasonic Thickness Gauge ATO-UM-4 0.6mm-508mm (0.025"-20.00") $1,904.76 N/A
    ATO-UM-4D $2,063.49 Thru painting
    ATO-UM-4DL $2,285.71 Thru paint + Data logger
    Digital A & B-Scan Ultrasonic Thickness Gauge ATO-UM-5 0.6mm-508mm (0.025"-20.00") $3,079.36 N/A
    ATO-UM-5D $3,809.52 Thru coating
    ATO-UM-5DL $4,349.20 Thru coating + Data logger
    High Precision Digital Ultrasonic Thickness Gauge ATO-PM-5 1.5mm-27mm (Interface-Echo)
      0.25mm-13.5mm (Echo-Echo)
    $5,619.05 N/A
    ATO-PM-5DL $6,253.97 Data logger

    Note: The prices in the table are just for your reference. If you want to get the latest quotation, please contact us now.

    Tips: Ultrasonic Thickness Gauge Thru-Coating Measurement Principle

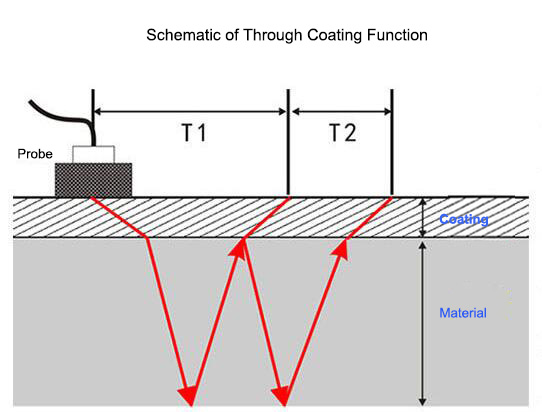

    In the standard measuring mode, the ultrasonic thickness gauge is to test the time difference T1 (See Figure) between the pulse emitted from the probe and the echo reflected back (pulse-echo).
    In the thru-coating measuring mode, the gauge is to measure the time difference T2 (See Figure) between two continuous echoes (pulse-echo and echo-echo).Schematic of Through Coating Function
