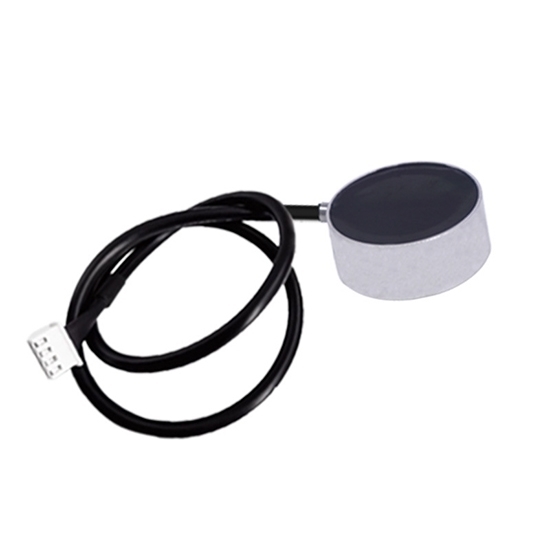

Non Contact Ultrasonic Level Sensor, 0.5-1.5M

5 out of 5 based on 1 reviews | Write a review

$725.99

This non-contact ultrasonic level sensor is specially designed for the accurate detection of water-based liquids, and is capable of providing stable level data in the range of 0.5m to 1.5m, and communicating with the system through the RS232/RS485 interface to ensure real-time data transmission.

Communication Interface *

SKU: ATO-UDS-15

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-efficiency non-contact liquid level sensor is compact in design, supports DC12~48V voltage, adapts to a variety of working environments, and the protection grade is up to IP67, dustproof and waterproof, and can operate stably under the operating temperature from -20℃ to 80℃.

Specification

Model	ATO-HX-LLD
Working Voltage	DC12~48V
Working Current	≤ 25mA
Measuring Range	5~150cm
Communication Interface	RS232/RS485
Measuring Liquid	Water
Measuring Resolution	0.1mm
Measuring Accuracy	±0.5%FS
Protection Class	IP67 dustproof and waterproof
Working Temperature	-20℃~80℃
Storage Temperature	-25℃~85℃
Communication Interface Parameters	Communication rate 9600bit/s
Thickness of Measured Container	≤20mm
Net Weight	Approx. 105g

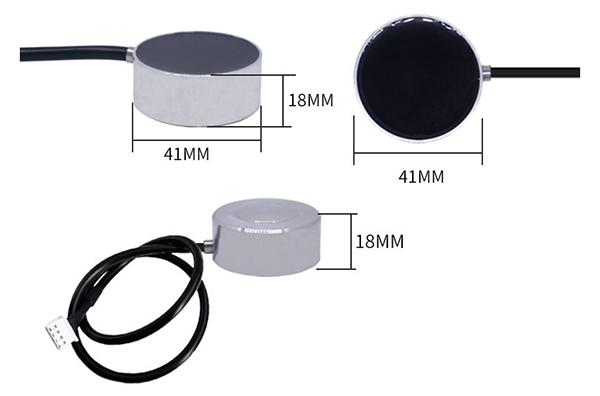

Dimensional Drawing (unit: mm)

Ultrasonic level sensor 1.5m size

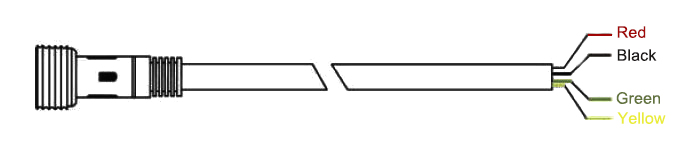

Pin Description

Ultrasonic level sensor 1.5m pin description

Wire Color	Functional Description	Detailed Description
Red core wire	Sensor power supply cable	Connect to the positive terminal of the power supply (supply voltage range DC12~48V)
Black core wire	Sensor power supply cable	Connect to the negative terminal of the power supply
Green core wire	Sensor signal cable	Signal line identified as RX/A, connect to TX/A terminal of user's equipment.
Yellow core wire	Sensor signal cable	Signal line identified as TX/B/voltage analog, connect to the RX/B voltage analog terminal of the user's device.

Application

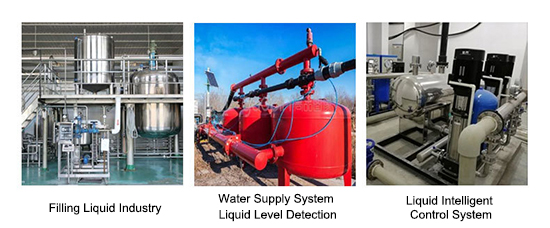

Ultrasonic level sensor 1.5m application

Tips: What is a non-contact ultrasonic level sensor?

A non-contact ultrasonic level sensor is a device that measures the position of a liquid or solid surface using ultrasonic technology. It utilizes ultrasonic pulses emitted from the sensor, reflected back to the sensor through the surface of the medium, and then determines the height of the liquid level by calculating the reflection time. Due to its non-contact working principle, this sensor is suitable for monitoring liquid or solid surfaces, avoiding the problem of traditional contact sensors being susceptible to contamination, wear and tear or corrosion.

Taking 1.5 meters as an example, the measurement range of this non-contact ultrasonic level sensor is usually between 0.2 meters and 1.5 meters. The exact effective measuring range will vary depending on environmental conditions such as temperature, humidity, air pressure, etc. Therefore, it is necessary to ensure that the sensor and the measured medium are matched before use to ensure accurate measurement results.
