    Single Phase to Three Phase Converter Price List

    ATO single-phase to three-phase converter adopts AC-DC-AC circuit structure and adopts SPWM modulation control technology, which can convert ordinary single-phase power to industrial three-phase power. After the single-phase to three-phase inverter power conversion, the three-phase power output is a standard pure sine wave, and the harmonic distortion rate (THD) is less than 2%, which is suitable for all types of loads.

    Static phase converter can solve some production inconveniences caused by three-phase power restrictions, and also solve some user requirements that cannot be applied to three-phase power due to space constraints. Phase converters are widely used in lathes, milling machines, grinders, drills, sawing machines, metalworking and woodworking equipment and printing presses.

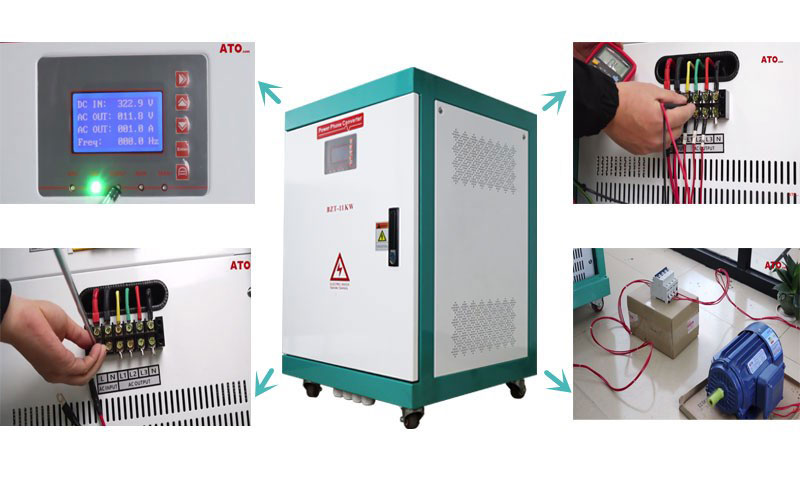

    ATO phase converter

    ATO provides you with 110V/120V/220V/230V/240V/415V/440V/480V single phase to 220V/380V/400V/415V/440V/480V three phase converter, frequency 50Hz/60Hz, other input voltage, output voltage Both can be customized, please contact us.

    Single phase to three phase converter price list

    Name Model Price Power Input Voltage Output Voltage
    4 hp Single Phase to Three Phase Converter ATO-PHC-04 $2,267.90 3kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    5 hp Single Phase to Three Phase Converter ATO-PHC-05 $3,045.59 3.7kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    7.5 hp Single Phase to Three Phase Converter ATO-PHC-7d5 $3,207.90 5.5kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    15 hp Single Phase to Three Phase Converter ATO-PHC-015 $5,998.36 12kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    20 hp Single Phase to Three Phase Converter ATO-PHC-020 $6,862.97 15kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    25 hp Single Phase to Three Phase Converter ATO-PHC-025 $8,947.26 18.5kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    30 hp Single Phase to Three Phase Converter ATO-PHC-030 $12,307.69 25kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    40 hp Single Phase to Three Phase Converter ATO-PHC-040 $14,769.23 30kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    50 hp Single Phase to Three Phase Converter ATO-PHC-050 $15,987.21 40kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    65 hp Single Phase to Three Phase Converter ATO-PHC-065 $29,871.28 50kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    80 hp Single Phase to Three Phase Converter ATO-PHC-80 $31,240.29 60kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    105 hp Single Phase to Three Phase Converter ATO-PHC-105 $33,984.62 80kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v
    135 hp Single Phase to Three Phase Converter ATO-PHC-135 $36,153.85 100kW 110v/120v/220v/230v/240v/415v/440v/480v 220v/380v/400v/415v/440v/480v

    Note: The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us. Generally, it's cheaper than the price in the table.

    Single phase to 3 phase converter feature

    1. Single phase to 3 phase converter input voltage, output voltage, frequency and phase can be customized.
    2. Pure sine wave output, transient response is less than 50ms, waveform distortion is minimal, conversion efficiency is high, and output voltage is stable.
    3. The static phase converter uses a low frequency transformer to ensure that the input voltage and output voltage are completely electrically isolated to avoid interference.
    4. Using SVPWM space vector algorithm, high conversion efficiency, high instantaneous power, low no-load loss, conversion efficiency can reach more than 94%, and no-load loss is small.
    5. The output AC power supply is suitable for all types of appliances, power tools, motors, etc. Has a higher driving load capacity.
    6. Phase converter has the function of filtering out grid interference and interference at the same time, with stable voltage and frequency power performance, and provides a more stable and pure power supply environment for back-end equipment.
    7. Complete output protection function, with output overvoltage, overload, short circuit, overheating, self-diagnostic protection and other protection functions.
    8. High conversion efficiency, high instantaneous power and low load loss.
    9. Two start modes: step-down start and variable frequency start. Customers can set the startup mode according to the load type. Reduce the use of frequency converters, thereby reducing equipment investment costs, easy wiring and control.
