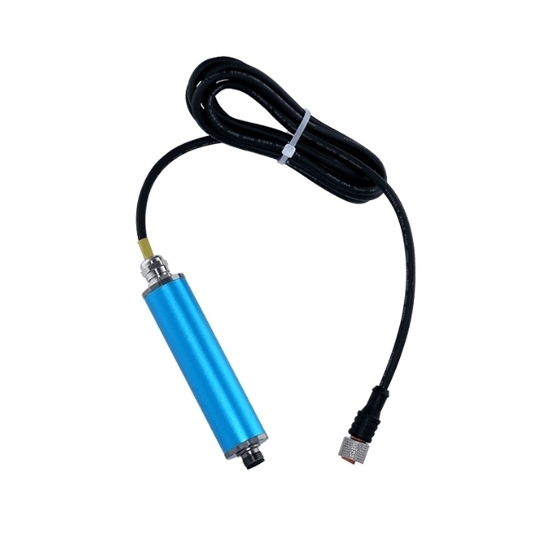

Signal Amplifier for Torque Sensor, RS485/0-5V/0-10V/4-20mA

Write a review

$126.98

Signal amplifier for torque sensor supports RS485, 0-5VDC, 0-10VDC, and 4-20mA outputs, with a supply voltage of 12~28VDC and <0.02% linearity. It has low output impedance (<1Ω for voltage), minimal temperature drift (≤0.02%FS/10K), and supports standard loads of ≥10kΩ (voltage) or ≤400Ω (current). With a 3.3V <20mA sensor power supply and input signal range of 0.82mV/V, it ensures stable performance. Operating within 0~60°C and 0%~95%RH, it supports up to 1000m transmission for RS485.

Output Signal *

SKU: ATO-TQS-FD01

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The signal amplifier supports RS485, 0-5VDC, 0-10VDC, and 4-20mA outputs with 12~28VDC supply, <0.02% linearity, and low impedance. It operates in 0~60°C, supports RS485 up to 1000m, and suits R&D, control, automotive, energy, and mechanical engineering.

Specification

Model	ATO-FD01
Input Side
Output Signal	RS485	0~5VDC	0~10VDC	4~20mA
Supply Voltage	12~28VDC	12~28VDC	12~28VDC	12~28VDC
Linearity	<0.02%	<0.02%	<0.02%	<0.02%
Output Impedance	/	<1Ω	<1Ω	/
Temperature Drift	≤0.02%FS/10K (23°C reference)	≤0.02%FS/10K	≤0.02%FS/10K	≤0.02%FS/10K
Standard Load	/	≥10kΩ	≥10kΩ	≤400Ω
Residual Ripple	≤100mV	≤100mV	≤100mV	≤10mV
Residual Ripple at 400Ω	≤10mV	≤10mV	≤10mV	≤10mV
Power Circuit Max Current	30mA	30mA	30mA	30mA
Max Transmission Distance	≤1000m	≤10m	≤10m	≤100m
Response Frequency	≤10Hz	≤30Hz	≤30Hz	≤30Hz
Output Side
Sensor Power Supply	3.3V <20mA
Power Supply Voltage Temperature Coefficient	<25ppm/K (reference temperature 23°C)
Input Signal	0.8~2mV/V
Input Impedance	10⁹Ω
Attached Cable Length	2m
Environmental Temperature
Operating Temperature	0~60°C
Operating Humidity	0%~95%RH (Non-condensing)
Total Weight	≈160g (including 2m cable)
Material
Material (Housing)	6061 Aluminum
Connector Material	Inner: PUR Polyurethane
	Outer: PVC Polyvinyl Chloride (Black)
	Pin Material: Copper Alloy
	Locking Mechanism: Yellow Copper Lock
	Sealing Material: FKM (Fluoroelastomer)
Cable Material	PUR Polyurethane (Black), 5-core shielded cable Ø4±0.2mm

Feature

Signal Amplification: Enhances the torque sensor signal to ensure stable and accurate transmission.
Improved Anti-Interference Capability: Effectively minimizes the impact of external electrical noise, providing more reliable measurements.
High Measurement Accuracy: Increases the precision of torque sensor outputs, suitable for applications requiring detailed and accurate data.
Extended Transmission Distance: Boosts the signal strength to support longer-distance transmission without loss of data integrity.
Multiple Output Options: Supports RS485, 0-5V, 0-10V, and 4-20mA output signals, making it compatible with various systems and devices.
Wide Voltage Support: Can operate effectively across a range of power supply voltages for greater flexibility.
Data Integrity: Ensures minimal signal distortion, preserving data quality during amplification and transmission.

Dimensions

Signal amplifier for torque sensor size

Wiring Diagram

Signal amplifier for torque sensor wiring diagram

Represents shielded cable. All marked grounding points must be effectively grounded. It is recommended to use shielded dual-core signal cables. To avoid ground loops, the shielding layer should adopt single-ended grounding. At the pressure transmitter end, the shielding layer should be left floating, and grounded at the control cabinet end.

Application

Application for research and development, measurement, control and control technology, vehicle technology, energy and environmental technology, mechanical engineering.

Signal amplifier for torque sensor application

Tips: Are there any special considerations for using the amplifier?

For optimal performance, it is recommended to use shielded cables to minimize electromagnetic interference. Grounding the shielding layer at one end (single-ended grounding) can further reduce potential ground loops, which may affect signal quality. Additionally, proper installation within the specified environmental conditions ensures long-term reliability and accuracy.
