Radar Level Transmitter for Solid, Non-contact, 0-40M

$1,891.59

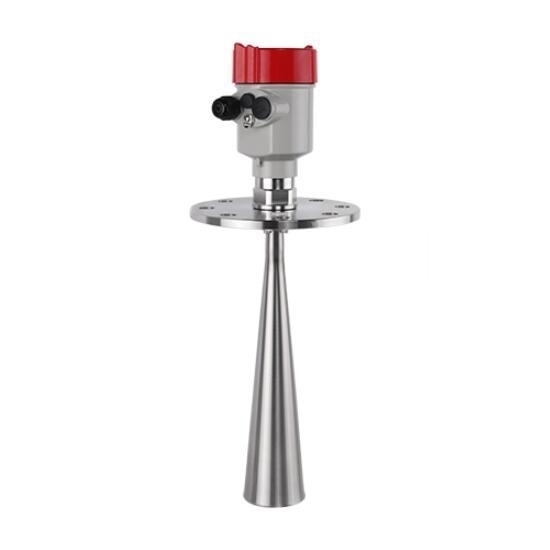

Radar level sensor is a non-contact solid measurement at factory price. Measuring range: power 0-10m, 0-20m or 0-35m, granules 0-12m, 0-25m or 0-40m, chunks 0-15m, 0-25m or 0-40m, selectable output signal of 4-20mA, RS485 or 4-20mA+HART, power supply of DC 12-24V or AC 220V, installation of DN80, DN100 or DN125 flange. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, horn and installation accessory for measuring various solids.

Output Signal *
Power Supply *
Flange Diameter *

SKU: ATO-LEVS-RD903

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Ultrasonic radar level transmitter for non-contact power, granule, chunk and other solids measurement has maximum measuring range 0-40m, can transmit and output 4-20mA, HART or RS485 signal to remote control system.

Specification

Model	ATO-LEVS-RD903
Shipping Weight	7.5kg
Measuring Range	Powder 0-10m, Granules 0-12m, Chunks: 0-15m	Powder 0-20m, Granules 0-25m, Chunks: 0-25m	Powder 0-35m, Granules 0-40m, Chunks: 0-40m
Accuracy	±10mm
Resolution	1mm
Display	LCD Display
Measured Interval	1s (according to parameter setting)
Adjustment Time	1s (according to parameter setting)
Microwave Frequency	26GHz
Output Signal*	4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*	DC 12-24V, AC 220V/50Hz
Material	Shell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304 Stainless Steel
Horn Antenna Size*	Φ78mm	Φ98mm	Φ123mm
Pressure	-0.1 ~ 2.0MPa
Shock Resistance	10m/s², (10~150)Hz
Communication Protocol	Modbus
Medium	Corrosive Liquids, Vapors, Volatile Liquids
Storage Temperature	-40~+100℃
Process connection (antenna) temperature	-40~+150℃
Medium Temperature*	-40~+130℃, -40~+230℃
Protection Class	IP67
Electrical Connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*	DN80 Flange	DN100 Flange	DN125 Flange
Warranty	12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

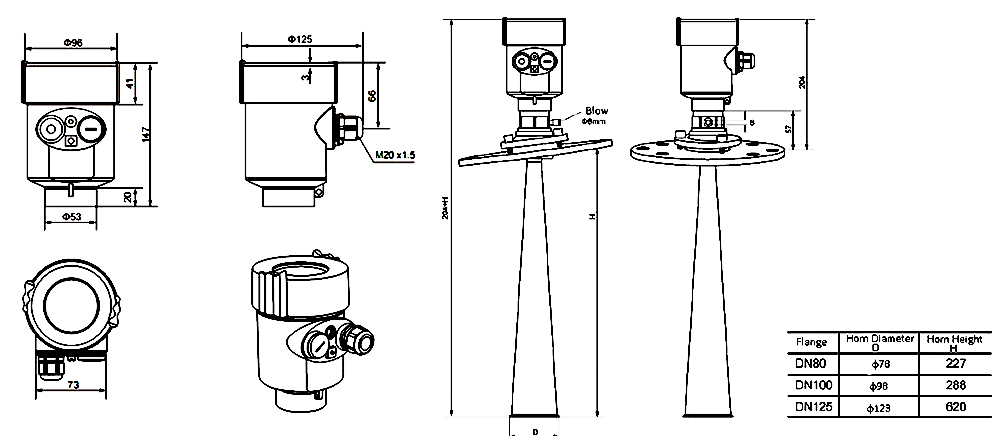

Dimensions (Unit: mm)

Dimensions of radar level sensor

Installation

Radar level sensor 10m installation

Wiring

Radar level sensor 10m wiring

Detail

Tips: How does a radar level sensor work?

The working principle of radar level sensor is based on TDR technology, which is based on pulses of electromagnetic energy transmitted along the probe tube. Therefore, when the radar pulse reaches the surface of the liquid in the processing tank with a higher dielectric constant than air, the pulse will be reflected back to the electronics unit. Equipped with a high-speed electronic timing circuit, it can calculate the passing time and measure the liquid level in the tank. It can accurately measure the liquid level.
