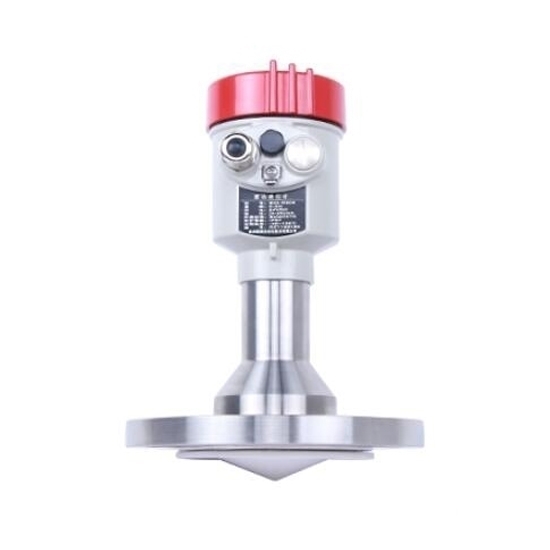

Radar Level Sensor, Non-contact Corrosive Liquid Measurement, 0-20M

$1,732.89

Factory price radar level sensor is a non-contact measurement for measuring various highly corrosive liquids. Measuring range from 0 to 20m, selectable output signal of 4-20mA, RS485 or 4-20mA+HART, power supply of DC 12-24V or AC 220V, flange installation of DN50~DN200. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, and installation accessory.

Output Signal *
Power Supply *
Flange Diameter *

SKU: ATO-LEVS-906

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Ultrasonic radar level sensor for non-contact various highly corrosive liquid level measurement has maximum measuring range 0-20m, can transmit and output 4-20mA, HART or RS485 signal to remote control system.

Specification

Model	ATO-LEVS-RD906
Shipping Weight	7.5kg
Measuring Range	0-20m
Accuracy	±10mm (Range 10m), ±15mm (Range 20m)
Resolution	1mm
Display	LCD Display
Measured Interval	1s (according to parameter setting)
Adjustment Time	1s (according to parameter setting)
Microwave Frequency	26GHz
Output Signal*	4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*	DC 12-24V, AC 220V/50Hz
Material	Shell Aluminum, Process Connection 304 Stainless Steel, Tetrafluoroethylene
Pressure	-0.1 ~ 4.0MPa
Shock Resistance	10m/s², (10~150)Hz
Communication	Protocol Modbus
Medium	Hygienic Liquid Storage Container, Highly Corrosive Liquids
Storage Temperature	-40~+100℃
Process connection (antenna) temperature	-40~+150℃
Medium Temperature	-40~+150℃
Protection Class	IP67
Electrical Connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*	DN50, DN80, DN100, DN125, DN150, DN200 Flange
Warranty	12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

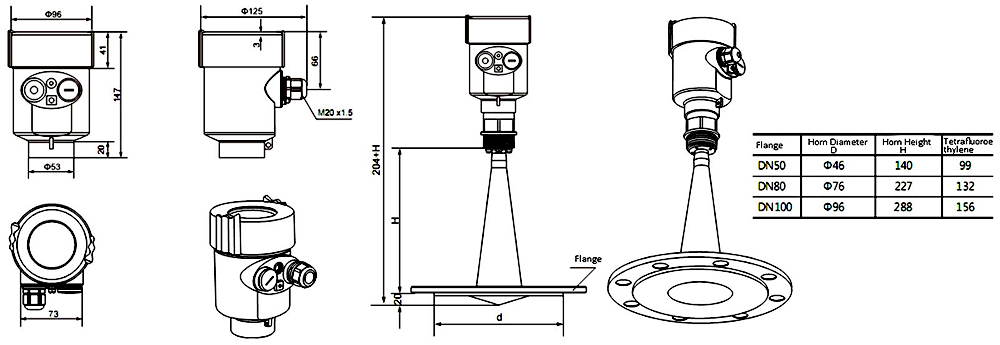

Dimensions (Unit: mm)

Dimensions of radar level sensor

Installation

Radar level sensor 10m installation

Wiring

Radar level sensor 10m wiring

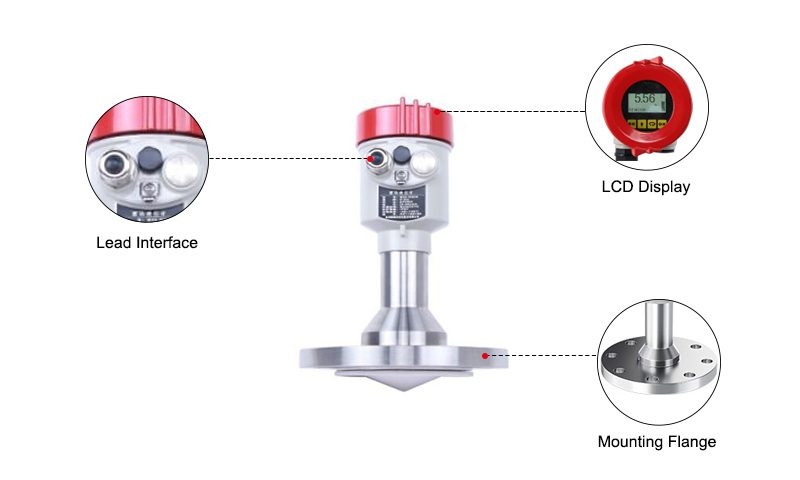

Detail

Tips: What are the advantages of radar level sensor?

The radar level sensor enables continuous level measurement of liquids, particles and slurries. The measurement of radar level sensor is not affected by medium change, temperature change, inert gas and steam, dust, foam, etc. Radar level transmitter is suitable for use in explosion-hazardous areas.
