    Pneumatic Cylinder Price List

    What are the types of pneumatic cylinder?
    The pressure of the compressed gas can be converted into the pneumatic actuator of mechanical energy in the pneumatic drive. The pneumatic cylinder has two types of reciprocating linear motion and doing reciprocating oscillation. The pneumatic cylinders that do reciprocating linear motion can be divided into four kinds of single-acting cylinders, double-acting cylinders, diaphragm cylinders and impact cylinders.

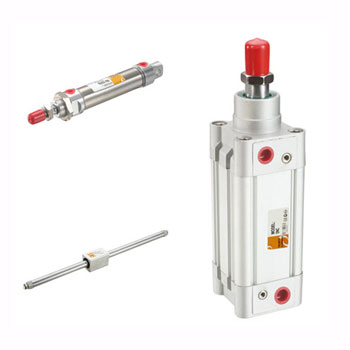

    pneumatic air cyinder.
    1. Single acting pneumatic cylinder
    Only one end has a piston rod, it can produce air pressure from the piston side of the gas supply polymerization, air pressure push the piston to produce thrust outstretched and return by spring or self-weight.
    2. Dual/ double acting pneumatic cylinders
    Alternating gas supply from both sides of the piston, output force in one or two directions.
    3. Diaphragm cylinder
    Replace the piston with a diaphragm, output the force in only one direction, and reset with a spring. Its sealing performance is good, but the itinerary is short.
    4. Impact cylinder
    This is a new type of component. It converts the pressure of the compressed gas into the kinetic energy of the piston high speed (10~20 m/s) movement to do the function.
    5. Rodless air cylinder
    The general name of the cylinder is without piston rod. There are two categories of magnetic cylinders and cable cylinders.
    ATO provides single and double acting pneumatic cylinders, standard pneumatic cylinders, mini pneumatic cylinders and rodless air cylinders. If the price list does not have bore size and stroke as specified, please contact us. Other bore size and stroke length can be customized. More details and latest prices please move to the product page of Pneumatic cylinder.
    ATO pneumatic cylinder price list

    Name Model Price (USD) Bore x Stroke (mm) Acting Type
    Pneumatic Cylinder,100mm Bore, 50mm Stroke ATO-CP-DNC 115.49 50 x 100 Double Acting
    147.26 63 x 200
    155.89 80 x 50
    185.69 100 x 50
    217.00 100 x 100
    Pneumatic Cylinder, 25mm Bore,75mm Stroke, Mini ATO-CP-MA 79.25 25 x 80
    86.89 20 x 200
    106.66 25 x 300
    127.69 32 x 600
    136.89 40 x 300
    Pneumatic Cylinder, 20mm Bore, 75mm Stroke, Mini ATO-CP-MSA 57.89 20 x 75 Single Acting
    79.25 25 x 80
    86.89 20 x 200
    106.66 25 x 300
    127.69 32 x 60
    136.89 40 x 300
    Rodless Air Cylinder, 25mm Bore, 300mm Stroke ATO-CP-3B3R 245.67 20 x 200 Double Acting
    289.46 25 x 300
    649.21 40 x 600
    689.74 40 x 900

     Note: The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us. Generally, it's cheaper than the price in the table.
