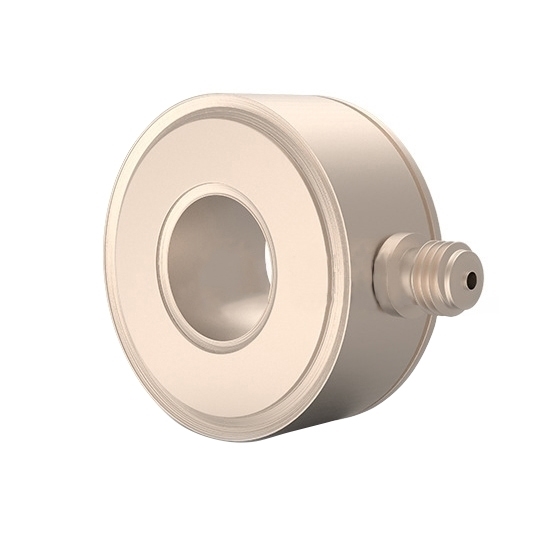

Piezoelectric Force Sensor, 0 to 30000N

$691.19
Purchase piezoelectric force sensor at factory price. This piezoelectric load cell with 0 to 30000N measuring range, measures force by converting mechanical stress into an electrical charge through the piezoelectric effect, which is commonly used in applications requiring precise force measurements, such as in industrial automation, robotics, and quality control.
*
*
SKU: ATO-FS-SACL030LA
30-day Returns
Free Shipping
Delivery date: 6-12 days

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

0 to 30000N piezoelectric force sensor is highly sensitive, capable of detecting very small forces, and is typically used in dynamic applications due to its rapid response time.

Specification

Model ATO-SACL030LA
Charge Sensitivity (20±5°C) ≈4pC/N
Measuring Range 0~30000N
Overload Capacity 120%
Matched Transmitter ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller ATO-DPM-DY800 (Click it to the controller page)
Linearity ≤1%F.S
Hysteresis ≤1%F.S
Repeatability ≤1%F.S
Capacitance ≥18pF
Insulation Resistance >1013Ω
Resonant Frequency ≥40kHz
Operating Temperature Range -54°C~120°C
Weight 18g
Housing Material High-Strength Stainless Steel
Installation Through Hole φ10
Sensitive Material Quartz
Output Mode Side L5 Socket
Connection Cable 2m Double-Ended L5 Low-Noise Cable


Feature

  • Precise and Accurate Measurement: Designed for high precision, this sensor ensures stable and accurate force measurement, with a measurement range of up to 30,000N.
  • High-Quality Construction: Made from high-strength stainless steel, offering enhanced durability and resistance to wear, ensuring long-lasting use even under heavy loads.
  • Superior Sensitivity: Offers precise sensitivity, delivering reliable and consistent results with stable signal output, even in dynamic conditions.
  • Elegant Appearance: Features a sleek, polished design with finely processed surfaces, offering both functional and aesthetic appeal.
  • Versatile and Robust: Ideal for various industrial applications, including force measurement, load testing, and control systems, with a robust design that can withstand a variety of challenging environments.

Dimension (Unit: mm)

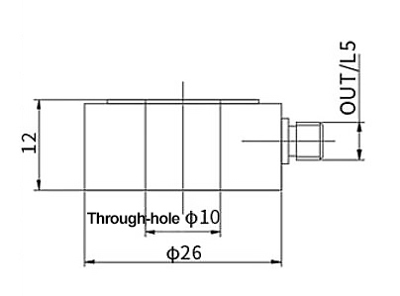

Piezoelectric force sensor dimension

Application

Piezoelectric force sensor application

Tips: What is a piezoelectric force sensor?

A piezoelectric force sensor is a device that measures force by utilizing the piezoelectric effect, where certain materials generate an electric charge when mechanically stressed. These sensors are typically made from piezoelectric crystals like quartz. When a force is applied to the sensor, it deforms the crystal structure, generating an electrical charge proportional to the force applied.

These sensors are highly sensitive and can measure dynamic forces over a wide frequency range, making them ideal for applications requiring precise force measurement in rapidly changing environments, such as automotive testing, aerospace, and industrial machinery monitoring. They are especially useful for detecting small forces or short-duration impacts. However, piezoelectric force sensors are less effective for measuring static or slowly changing forces due to charge leakage over time.
