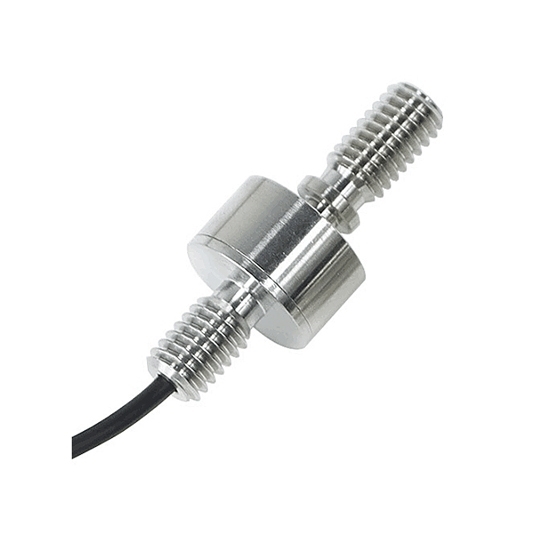

    Miniature Tension and Compression Load Cell 3kg/20kg/100kg to 500kg

    Miniature Tension and Compression Load Cell 3kg/20kg/100kg to 500kg

    4.8 out of 5 based on 8 reviews | Write a review
    $172.49

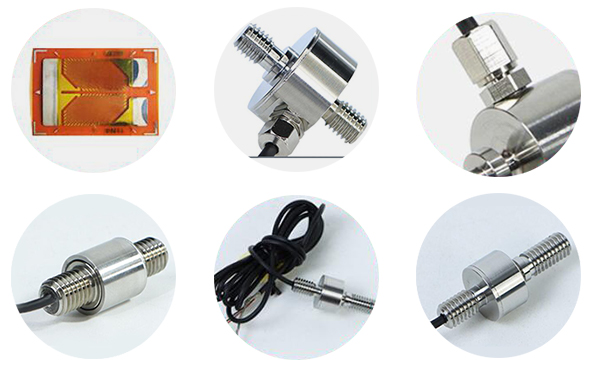

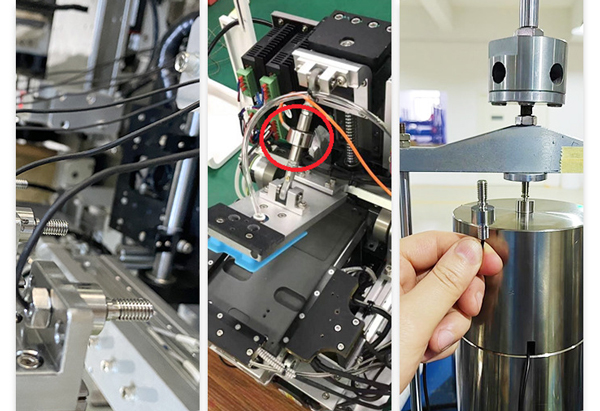

    Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.
    *
    *
    SKU: ATO-LC-TC02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Miniature tension and compression load cells have capacity range from 1kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg to 500kg. Load cell capacity can be customized according to customer requirements.
    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

    Specification:

    Model ATO-LCC-DYMH-106
    Weight 0.1kg
    Capacity range * 1kg~500kg
    Matched Display Controller ATO-DDC5-CHB
    Accuracy 0.5%F.S (linearity + hysteresis + repeatability)
    Sensitivity 1.0±20%mV/V (Low range variations may differ)
    Creep ±0.1%F.S/30min
    Zero output ±5%F.S
    Temperature effect on zero ±0.05%F.S/10℃
    Temperature effect on output ±0.05%F.S/10℃
    Temperature compensation range -10℃~+60℃
    Operating temperature -20℃~+80℃
    Input impedance 350±30Ω
    Output impedance 350±5Ω
    Insulation resistance ≥2000MΩ
    Safety overload 120%F.S
    Overload limit 200%F.S
    Bridge voltage (excitation voltage) DC 5-15V
    Material Stainless steel
    Protection class IP66
    Cable length 2m (Φ2mm)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

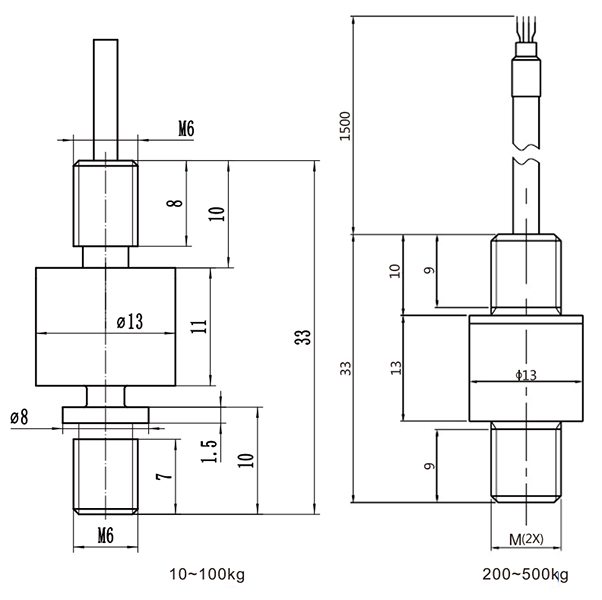

    Dimension (unit: mm):

    Capacity M
    3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg M6 (standard thread pitch: 1mm)
    200kg, 300kg, 400kg, 500kg M8 (standard thread pitch: 1.25mm)

    Miniature tension and compression load cell 3kg to 500kg dimension

    In this video, ATO will show you how to wire a strain gauge load cell with a display controller.

    Low Profile Micro Compression Button Load Cell 100kg
    This video introduces the specs, design features and applications of a low profile miniature button load cell DYHW-110 that's intended for compression force measurement. The maximum load capacity it can bear is 100kg. It can achieve 0.5%F.S accuracy with 150%F.S safety overload and temperature compensation.

    Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
    The shear beam load cell is a common load cell. Its working principle is based on the deformation of the elastomer when it is acted upon by an external force. This deformation will cause the resistance of the elastomer to change, thereby achieving the measurement of the external force. It is typically used to measure forces in the small to medium range and its working principle is based on the shear effect of elastically deforming materials. This type of force measuring element is usually made of metal or polymer materials. Because of its high elastic modulus and shear modulus, it can produce stable shear deformation when subjected to external forces.

    Existing reviews of Miniature Tension and Compression Load Cell 3kg/20kg/100kg to 500kg
    Compare the sampling rates of these
    I am interested in the following 3 load cells:
    https://www.ato.com/miniature-tension-and-compression-load-cell-3kg-to-500kg
    https://www.ato.com/tension-and-compression-load-cell-1kg-to-200kg
    https://www.ato.com/small-load-cell-5kg-to-5-ton
    I am interested in the 50kg, 30kg, and 20kg capacity version of all of them. I am just looking to compare the sampling rates of all of them and see which one best fits my application.
    From: Ardebilis | Date: 11/12/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The sampling rates of these two models SKU: ATO-LC-TC02 and SKU: ATO-LC-TC01 are higher, about 5KHz.
    Pressure/load sensor
    Do you have a pressure/load sensor which can be integrated in the horizontal axis which is perpendicular. I am interested in forces up to 60N.
    From: Levi | Date: 08/07/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our load cell SKU: ATO-LC-TC02 can be integrated in the horizontal axis to measure thrust force. No problem, you can buy online directly.
    A problem of load cell accuracy
    I already had switched the green and white cable so that the order was green, white, red, and black. This gave me an inclining positive value as you said but that does not seem to be the problem. When I measure the signal being outputted directly from the load cell, it seems to affect the accuracy if the signal is a negative value. I'm measuring the signal over the S- and S . So when I first tried to calibrate I went through the process as mentioned in the description. But when I removed the weight and put it back it seemed to be way off. So I checked the S- and S  and saw the values being negative. Then I calibrated the zero level til I had a positive value on the S- and S  readings and then the accuracy seemed to be right. Although the zero level was now 2V. How do I fix this?
    From: tzivia | Date: 05/02/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Regarding our previous suggestion, first you need to ensure that the voltage signal output by the measuring transmitter is positive after the load cell and the transmitter are wired correctly. You can only perform the calibration step if the output signal is confirmed to be positive, not if the signal is negative.When calibrating, you need to complete 2 steps. First perform no-load zero calibration, and adjust the zero potentiometer to display the signal output to 0. After the completion, perform load target point calibration. For example, if the weight is 50Kg, which is equivalent to 10% of the full scale of 500Kg, then the output voltage signal should be 10% of 5V, which is 0.5V. You need to adjust the span potentiometer until the output signal shows 0.5V.
    I want to buy a Miniature Tension and Compression Load Cell 3kg sensor for my application. And I have two questions.
    I want to buy a Miniature Tension and Compression Load Cell 3kg sensor for my application. And I have two questions.
    1. If I power the sensors with 5 volts, what type of output voltage should I expect for the full range? 0 - 5 V? Do I need an external amplifier?
    2. Our application will apply a small (0.05 Nm) torque on the sensor. (if the sensor's main axis is in the Z direction, the torque is around the Rx/ Ry axes). Can you tell me if that is an issue with this sensor? Does it affect the measured force?
    From: DeLisle | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The default output voltage of the sensor is mV, if you want to output a 0-5V signal, then you have to purchase/add a transmitter/amplifier;
    2. For your application to apply a small (0.05 Nm) torque to the sensor, please, provide a schematic diagram showing how it will be, for further confirmation.
    Load cell reading
    When we connect 2 load cell to display controller via junction box, what would be the reading refers to?
    From: Tiffy | Date: 23/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    When two load cells are connected to the controller through a junction box, the weight value of the two load cells read by the controller is usually the actual weight value, not the sum of the weights measured by the sensor separately!
    I need a load cell that can sustain weight.
    I need a load cell which will be constantly under weight (up to 300kg ). In my application, I need to monitor the reduction of that weight (the weight load will decrease by a multiplier of 5KG), and then output that difference in weight change.
    Basically a "reverse load cell" or an "unload cell".
    My main concern, how do your load cells show under constant weight for prolonged periods, does such a cell exist which is able to handle this scenario?
    From: Mbelken | Date: 25/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our load cell sensors support the usage described below.
    But we don't know where the sensor will be installed, the specific size requirements, etc. So I cannot recommend a certain model.
    Please, provide photos of your application, and where will the load cell be installed?
    Parameters of load cell
    Looking for a disc type compressive load cell capable of a max load of ~300kg. What outputs do your load cells have? What is the resolution/accuracy?
    From: Rivera | Date: 15/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The output of our load cell is 0-20mV.
    After purchasing our ATO load cell, you can buy our special digital panel meter to obtain readings directly, or buy our transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4 -20mA.
    See all our load cell specs including resolution/accuracy, and price on: https://www.ato.com/load-cell.
    Questions about 3kg/20kg/100kg to 500kg load cell
    I want to know if your 3kg/20kg/100kg to 500kg load cell is affected by magnetic field?
    From: Brendon | Date: 08/03/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the output voltage signal of the load cell from 3kg/20kg/100kg to 500kg will be affected by the magnetic field, which is proportional to the strength of the magnetic field.
    Load more reviews...
