    Miniature Compression Load Cell 5kg/10kg/30kg/50kg/100kg

    Miniature Compression Load Cell 5kg/10kg/30kg/50kg/100kg

    5 out of 5 based on 4 reviews | Write a review
    $134.39

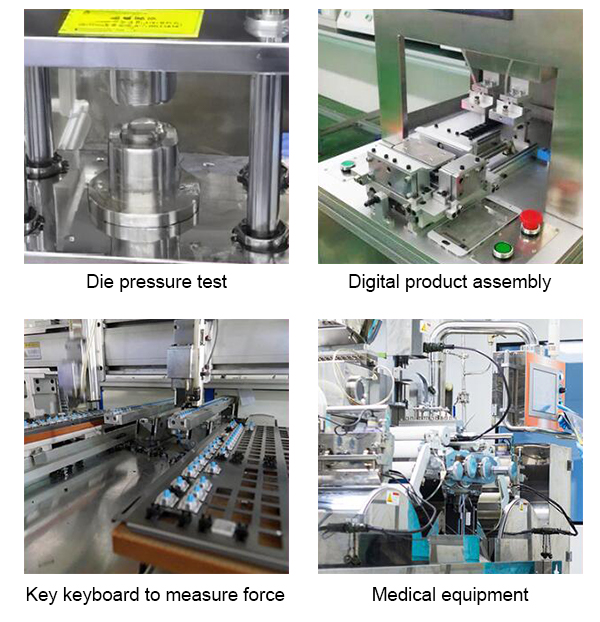

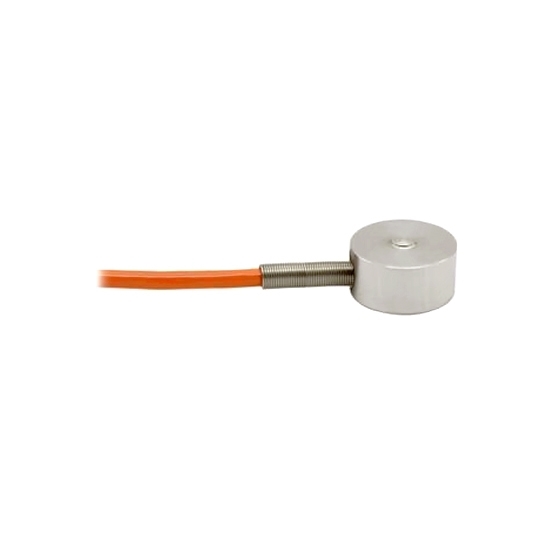

    Compression load cell has a capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. It has a button type structure, miniature diameter 13mm and height 7mm, cable Φ2*2m. Compression load cell can be used in pressure testers, automotive installation, automated assembly line, robotics, etc.
    *
    *
    SKU: ATO-LC-BU03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

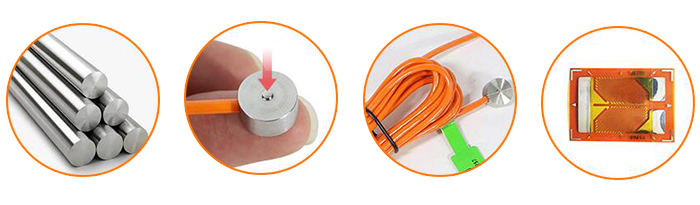

    The miniature button cload cell is a high-precision measuring device that can measure very small changes in weight or pressure. When an external force acts on the sensor, the metal structure will undergo slight deformation, which will cause the strain gauge to output a weak electrical signal. This electrical signal is then amplified, filtered and analyzed by a data acquisition system, and ultimately converted into a readable numerical or graphical display.

    Miniature compression load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

    Specification:

    Model ATO-LCBU-DYHW-113
    Shipping weight 1kg
    Capacity range * 0~100kg
    Matched Display Controller ATO-DDC5-CHB
    Accuracy 0.5%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±10%mV/V (Low range variations may differ)
    Creep ±0.1%F.S/30min
    Zero output ±2%F.S
    Temperature effect on zero ±0.2%F.S/10℃
    Temperature effect on output ±0.2%F.S/10℃
    Operating temperature -20℃~+80℃
    Input impedance 500Ω
    Output impedance 1000Ω
    Insulation resistance ≥5000MΩ
    Safety overload 150%F.S
    Bridge voltage (excitation voltage) DC 5-10V
    Material Stainless steel
    Protection class IP66
    Cable length 2m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

    Miniature compression load cell dimension (unit: mm):

    Capacity Dimension (mm)
    Φ
    5~20kg 2
    30~100kg 3

    Miniature compression load cell 5kg/10kg/30kg/50kg/100kg dimension
    Tips

    In this video, ATO will show you how to wire a strain gauge load cell with a display controller.

    Low Profile Micro Compression Button Load Cell 100kg
    This video introduces the specs, design features and applications of a low profile miniature button load cell DYHW-110 that's intended for compression force measurement. The maximum load capacity it can bear is 100kg. It can achieve 0.5%F.S accuracy with 150%F.S safety overload and temperature compensation.

    Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells
    The shear beam load cell is a common load cell. Its working principle is based on the deformation of the elastomer when it is acted upon by an external force. This deformation will cause the resistance of the elastomer to change, thereby achieving the measurement of the external force. It is typically used to measure forces in the small to medium range and its working principle is based on the shear effect of elastically deforming materials. This type of force measuring element is usually made of metal or polymer materials. Because of its high elastic modulus and shear modulus, it can produce stable shear deformation when subjected to external forces.

    Existing reviews of Miniature Compression Load Cell 5kg/10kg/30kg/50kg/100kg
    Information about the miniature compression load cell
    What happens if the load exceeds 100%F.S? For example, can I operate the load cell at 125%F.S? Or 150%?
    From: Utkarsh | Date: 02/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Within 150% of the range, the components inside the sensor may be damaged, and more than 150% of the sensor capacity, may cause deformation.
    Does the load cell need to be calibrated?
    If the load cell permanently mounted. Does it need to be calibrated once in while because of the creep?
    From: Jfinva | Date: 30/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    When sensor reading has a large error (measured value is not accurate), the calibration is required, but calibration is not determined according to usage time.
    Selection of miniature compression load cell
    Does the "load cell transmitter, output 0-5V/0-10V/4-20mA/0-20mA" output, so I can choose in site?
    From: Branco | Date: 27/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You can choose while ordering which output signale you will be needing not on site, it should be one value "factory selected option".
    Unit of miniature compression load cell
    I want to buy a load cell controller, but needs to get weight in ton not kg, is it possible?
    From: Denise | Date: 20/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, it possible. You can use the controller to measure tons unit. There are 4 options for unit setting (0=ton, 1=kg, 2=g, 3=kn).
    Load more reviews...
    Write your review for Miniature Compression Load Cell 5kg/10kg/30kg/50kg/100kg
    • Only registered users can write reviews
    • Bad
    • Excellent
