    How to Select a Gear Motor?

    A gear motor is a power transmission machinery, which is used by all levels of gear transmission to achieve the purpose of speed reduction. Many transmission equipments want to achieve the effect of low speed and high torque is used is the gear reducer, the use of gear speed converter to decelerate the number of revolutions of the motor to the required number of revolutions, and get a larger torque mechanism.

    3W ~ 3.7kW gear motor can increase the output torque while decelerating, and the torque output ratio of the gear reducer is obtained by multiplying the motor output by the deceleration ratio, but it is important to note that the rated torque cannot be exceeded.

    How to choose the right gear motor?

    Geared motors are widely used, and there are many models, so how to choose the most suitable one? First, determine what kind of gear motor the motor is used in, and then consider the following:

    • Determine the required motor power and number of stages.
    • Ambient temperature around the geared motor
    • It is necessary to provide the axial force and radial force of the geared motor.
    • Know the working hours of the geared motor per day and the number of starts and stops per hour.
    • Determine the torque and speed ratio of the product.

    Speed ratio = motor output revolutions/reducer output revolutions (speed ratio is also called rotation ratio)
    Torque=9550×motor power/motor power input revolutions×speed ratio×use factor
    Motor power=torque/9550×motor power input revolutions/speed ratio/use factor

    There are two types of gear motors on the ATO website. AC gear motors and DC gear motors have various gear voltage and ratios for selection. small vibration and low noise, total adaptability, and compact design, which ensures that you will get a perfect solution for your needs. The table below lists the prices of high-precision geared motors.

    AC Gear Motor Price List

    Product SKU Power Ratio Price

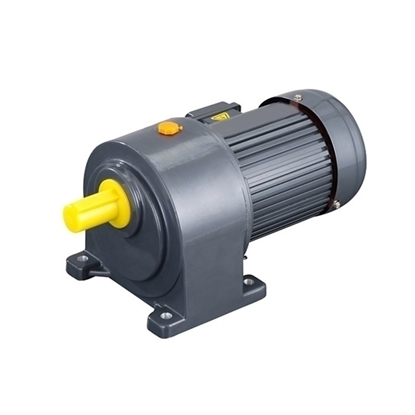

     ac gear motor ATO-GEAR-HV100 100W 3-100 362.62
    ATO-GEAR-HV200 200W 405.69
    ATO-GEAR-HV400 400W 498.15
    ATO-GEAR-HV750 750W 611.69

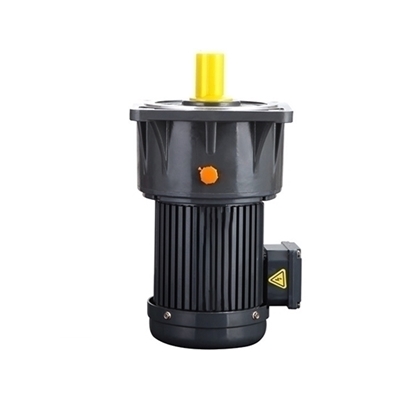

     ac gear motor vertical GEAR-HV1500 1500W 3-100 952.31
    GEAR-HV2200 2200W 952.31
    GEAR-HV3700 3700W 3-60 1615.23

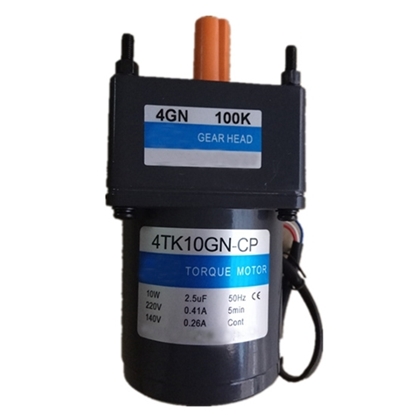

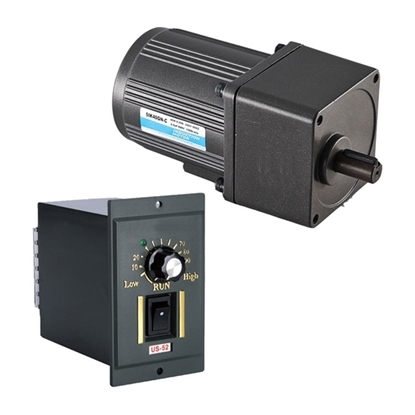

     ac gear motor ATO-GEAR-TM3 3W 3-200 128.41
    ATO-GEAR-TM6 6W 154.68
    ATO-GEAR-TM10 10W 156.99
    ATO-GEAR-TM20 20W 233.69
     ac gear motor GEAR-5IK25W 25W 3-200 264.36
    GEAR-5IK40W 40W 305.79
    GEAR-5IK60W 60W 328.63
    GEAR-5IK90W 90W 398.15
    GEAR-5IK120W 120W 420.16
    GEAR-6IK140W 140W 475.39
    GEAR-6IK200W 200W 538.41

    DC Gear Motor Price List

    Product SKU Power Ratio Price

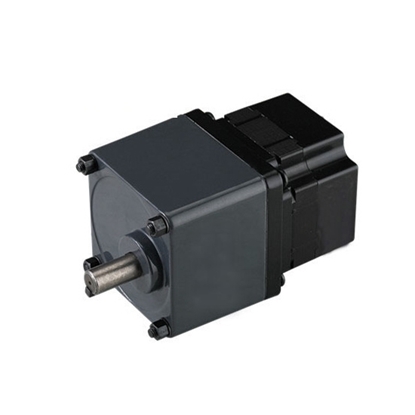

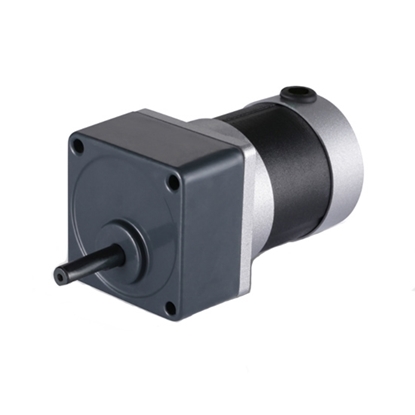

    dc gear motor ATO-GEAR-30 30W 3-200 $127.94
    ATO-GEAR-50 50W $155.03
    dc gear motor ATO-GEAR-90 90W 3-200 $193.25
    ATO-GEAR-150 150W $215.36
    ATO-GEAR-200 200W $262.48
    ATO-GEAR-300 300W $300.48
    ATO-GEAR-450 450W $326.35
    ATO-GEAR-750 750W 3-200 $354.23

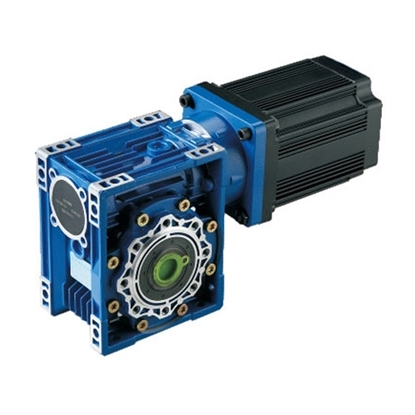

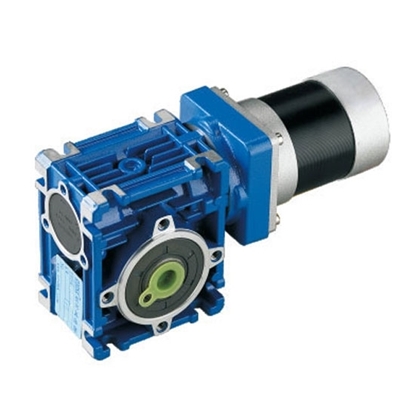

    dc worm gear motor ATO-GEAR-W50 50W 7.5-60 $459.36
    ATO-GEAR-W100 100W 7.5-60 $484.27
    ATO-GEAR-W150 150W 7.5-80 $509.25
    dc gear motor ATO-GEAR-W90 90W 7.5-60 $509.25
    ATO-GEAR-W200 200W 7.5-100 $620.62
    ATO-GEAR-W300 300W $662.75
    ATO-GEAR-W450 450W $709.66
    ATO-GEAR-W600 600W $759.88
    ATO-GEAR-W750 750W $819.56
    ATO-GEAR-W1000 1000W $961.81
    ATO-GEAR-W1500 1500W $978.32
    ATO-GEAR-W2000 2000W $1,028.99

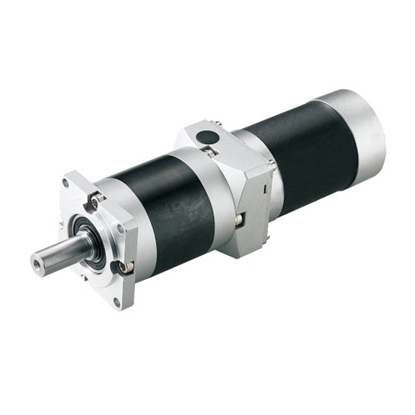

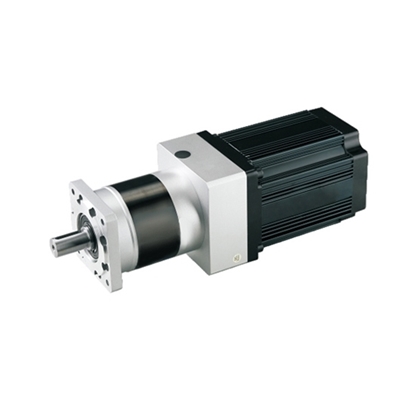

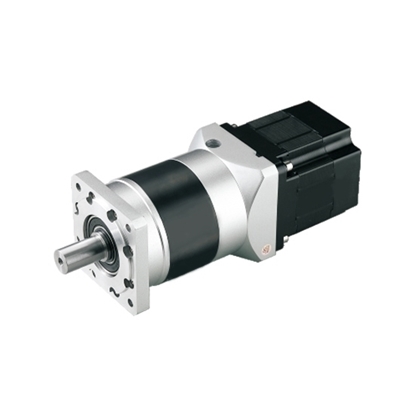

    dc gear motor ATO-GEAR-P75 75W 4-250 $417.86
    ATO-GEAR-P100 100W $438.81
    ATO-GEAR-P150 150W $463.79
    dc gear motor ATO-GEAR-P90 90W 4-250 $426.86
    ATO-GEAR-P200 200W $530.62
    ATO-GEAR-P350 300W $572.75
    ATO-GEAR-P450 450W $622.98
    ATO-GEAR-P750 750W 4-250 $735.61
    dc gear motor ATO-GEAR-P600 600W 4-250 $679.83
    ATO-GEAR-P1000 1000W 3-250 $903.57
    ATO-GEAR-P1500 1500W 3-250 $920.08
    ATO-GEAR-P2000 2000W 3-250 $957.86

    Note: The above geared motor models are available. The prices in the table are for reference. If you want to know more specific information or better prices, please feel free to contact us.
