How to Increase DC Voltage with Boost Converter?
In various applications, you may find the need to power devices that require higher voltages than what your current power supply can provide. A DC-DC boost converter is a device that steps up a lower DC voltage (like 12V) to a higher DC voltage (such as 24V). This type of converter is essential in various applications, especially when powering high-voltage devices from low-voltage sources.
Boost converters operate by storing and releasing energy to increase voltage. They use inductors, switching elements, and control circuits to elevate the input voltage. By adjusting the switching frequency, the converter can effectively regulate the output voltage. In this tutorial, ATO online shop will guide you through setting up a 12V to 24V DC-DC boost converter, perfect for controlling the voltage output to power a 24V device, such as a vibration motor.
Components Needed
Adjustable DC Power Supply: Set to 12V to match the input requirement of the boost converter.

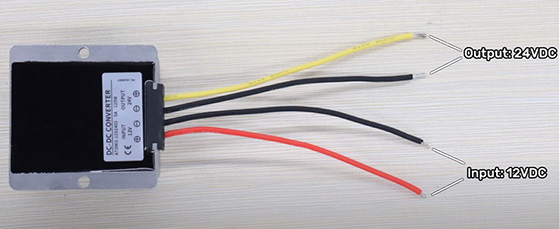

12V to 24V DC-DC Boost Converter: This device comes with four connecting wires:
- Yellow Wire: 24V DC output
- Upper Black Wire: 24V DC output
- Lower Black Wire: 12V DC input
- Red Wire: 12V DC input
Load: A 15 Watt, 24V DC vibration motor with a built-in speed controller.

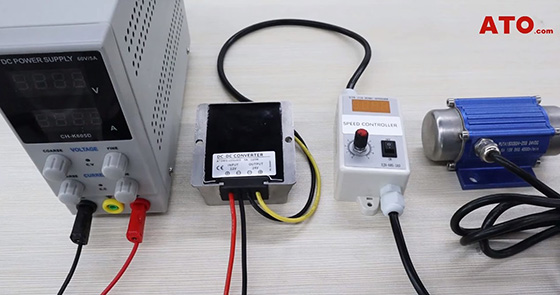

Wiring Instructions
Connect the Power Supply: Use the lower black and red wires to connect the 12V DC power source to the input side of the DC-DC boost converter.
Connect the Load: Attach the yellow and upper black wires from the boost converter to the 24V DC input of the vibration motor. Ensure the speed controller is placed between the boost converter output and the vibration motor.
Operating the Setup
Power On: Turn on the adjustable DC power supply to provide 12V to the boost converter.
Activate the Motor: Flip the switch on the speed controller to activate the vibration motor.
Adjust Voltage: The boost converter will step up the voltage from 12V to 24V, supplying the necessary power to the vibration motor.
Control Speed: Use the speed control knob to adjust the motor speed as desired.
Conclusion
Using a DC-DC boost converter is an effective way to increase your voltage supply from 12V to 24V, making it suitable for various applications. Whether you're working on a DIY project or a more complex setup, this solution provides efficiency and reliability. With the right components, you can easily power devices that require higher voltages and enjoy the flexibility of adjustable output.
If you’re looking for a reliable boost converter, consider options that offer robust performance and user-friendly features, ensuring a smooth experience in your projects. Watching the video below will help you learn more.
