How to Convert a Three-Phase Motor to Single-Phase?
In many cases, we may need to run three-phase motors on a single-phase power source, especially in residential or small industrial environments without a three-phase power source. Although three-phase motors are more efficient and powerful, simply making some changes to the wiring and adding the correct components can make them suitable for single-phase 220V power supply. In this guide, ATO online store will guide you through the necessary steps to convert a three-phase motor to a single-phase power source for operation.
Step 1: Change the Wiring from Star to Delta Connection
The first step is to rewire the motor from a star connection to a delta connection. In the star connection, the terminals are arranged horizontally, while in the delta configuration, they are placed vertically. This adjustment ensures that the motor can operate properly with single-phase power.
Step 2: Select the Right Capacitor

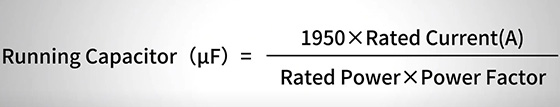

A capacitor is essential for helping the motor start and run on a single-phase supply. To determine the correct capacitor size, you need to know the motor’s rated current, rated voltage, and power factor, which are typically listed on the motor's nameplate. You can then use the following formula to calculate the required capacitor size:
For example, if the motor has a rated current of 4.3A, a rated voltage of 380V, and a power factor of 0.85, the calculated capacitor size would be around 26 µF.
Step 3: Wiring the Capacitor and Adding a Start Capacitor (For Higher-Power Motors)
Once you've selected the correct capacitor, connect one terminal of the capacitor to the V1 terminal and the other to the W1 terminal. Then, connect the neutral wire to the U1 terminal. This wiring setup allows the motor to start and run properly on single-phase power.

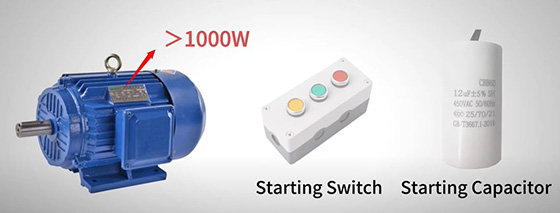

For motors exceeding 1000W, it is advisable to include a starting push button switch and a starting capacitor. The start capacitor provides additional torque during the motor’s startup, ensuring smooth operation. Typically, the start capacitor should be 1 to 4 times the size of the run capacitor.
Step 4: Test the Motor
After wiring the capacitor, it’s time to test the motor. Connect the live wire to V1 for forward rotation and to W1 for reverse rotation. Once tested, the motor should run smoothly on the single-phase 220V supply.
By following these steps, you can successfully convert a three-phase motor to run on a single-phase 220V power supply. This is a cost-effective solution when three-phase power is not available, ensuring the motor operates efficiently with single-phase electricity. You can watch the video below for further understanding.
