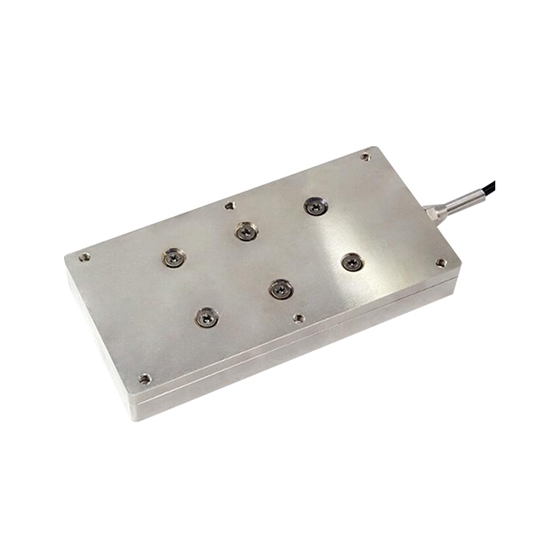

Flat Plate Force Sensor for Battery Equipment, 0-5 ton

5 out of 5 based on 1 reviews | Write a review

$336.89

Flat plate force sensor for battery equipment with measuring range of 0-1/2/3/5 ton, has a sensitivity range of 1.5-2.0 mV/V and a non-linearity of ±0.5% F.S. The load cell has a full scale of ±0.5% F.S., with a drift of ±0.3% and zero output accuracy of ±1% F.S. It operates between -20°C and 80°C, with an input resistance of 750 ± 20 Ω and output resistance of 700 ± 5 Ω. Widely used in battery equipment force measurement, new energy projects and various engineering devices force measurement system.

Measuring Range *

With Transmitter

Yes [+$81.27]

SKU: ATO-FS-PB001

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Flat plate force sensor for battery equipment measures 0-5 tons with a sensitivity of 1.5-2.0 mV/V and non-linearity of ±0.5% F.S. It operates within a temperature range of -20°C to 80°C and requires an excitation voltage of 10-15V. With input resistance of 750 ± 20 Ω and output resistance of 700 ± 5 Ω, it's ideal for battery equipment, new energy projects, and engineering systems.

After purchasing one flat plate force sensor, you can buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

Model	ATP-DYPB-001
Measuring Range	0-5 ton
Sensitivity	1.5-2.0 mV/V
Matched Transmitter	ATO-LCTR-OA
Non-linearity	±0.5%F.S.
Full Scale	±0.5%F.S.
Hysteresis	±0.5%F.S.
Drift	±0.3%F.S.
Zero Output	±1%F.S.
Zero Temperature Sensitivity	±0.1%F.S./10°C
Sensitivity Temperature Sensitivity	±0.3%F.S./10°C
Operating Temperature Range	-20°C to 80°C
Input Resistance	750±20Ω
Output Resistance	700±5Ω
Safety Load	≤150%F.S.
Insulation Resistance	≥5000 MΩ (50V DC)
Recommended Excitation Voltage	10-15V

Feature

Wide Measurement Range: The flat plate force sensor has a broad force measurement range, ensuring high precision and stability with excellent output consistency.
Ideal for Battery Equipment and Energy Projects: Suitable for use in battery equipment, new energy projects, and various power measurement systems.
Durable 40Cr Alloy Steel Construction: Made from 40Cr alloy steel, known for its excellent resistance to mechanical fatigue, high strength, and good weldability. The surface is resistant to corrosion and rust, with optional stainless steel material for enhanced durability.
Reliable Performance with Factory Testing: The force sensor from the factory have been subjected to aging tests and are guaranteed to be durable and of high quality.
High Precision and Large Force Area: Designed with high precision and a large force measurement area, this sensor is particularly suitable for battery pressure testing and applications requiring precise force measurement.

Dimension (unit: mm)

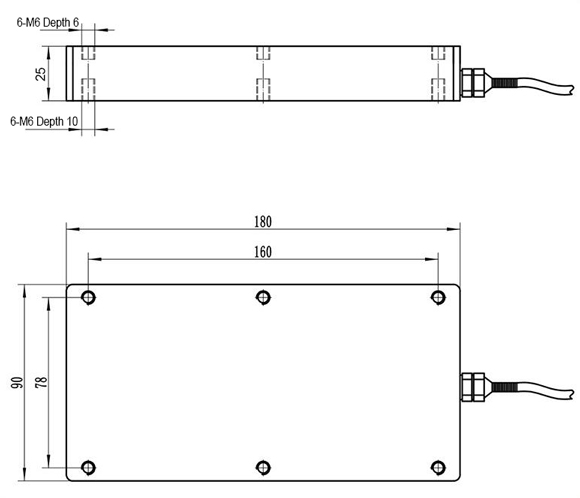

Flat plate force sensor dimension

Wiring Instructions

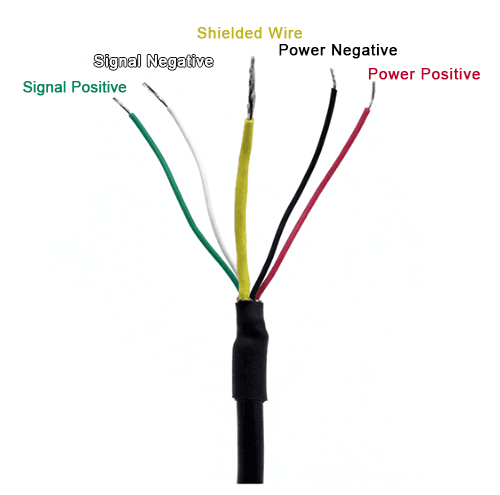

Flat plate force sensor wiring instructions

Application

Flat plate force sensor used in battery press fitting and other fields, with large force area and high precision.

Flat plate force sensor application

Tips: What industries benefit from using this force sensor?

The Flat Plate Force Sensor is highly versatile and can be used across various industries, particularly those involving battery equipment, new energy systems, and engineering projects. In the battery industry, the sensor plays a key role in monitoring the forces involved in battery assembly, pressure testing, and material handling. In new energy projects, such as solar and wind energy, the sensor is used for monitoring structural loads, ensuring the durability of installations like solar panels or wind turbines. Manufacturing and engineering sectors also benefit from the sensor’s precision in force measurement during equipment testing, product development, and quality control. Its use extends to fields like telecommunications (measuring cable tension), automotive manufacturing, and construction (monitoring load on machinery), making it an invaluable tool for a wide range of industrial applications.
