    Electromagnetic Clutch, DC 24V, 6Nm/400Nm

    5 out of 5 based on 1 reviews | Write a review
    $283.07
    Shaft mounted electromagnetic clutch rated voltage DC 24V, static torque 400Nm, 200Nm, 100Nm, 50Nm, 25Nm, 15Nm, 6Nm is available, smooth operation, low vibration, fast response and overload protection.
    *
    SKU: ATO-EC-MCS1
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DC magnetic powder clutch has a good heat dissipation function and durability, max speed 1800r/min, widely used in a variety of processing machine tools and mechanical transmission systems.

    Specification:

    Model ATO-MCS-1-006 ATO-MCS-1-015 ATO-MCS-1-025 ATO-MCS-1-050 ATO-MCS-1-100 ATO-MCS-1-200 ATO-MCS-1-400
    Static Torque[kgf-m](N-m) 0.6 (6) 1.5 (15) 2.5 (25) 5.0 (50) 10 (100) 20 (200) 40 (400)
    Dynamic Torque[kgf-m](N-m) 0.5 (5) 1.0 (10) 2.0 (20) 4.0 (40) 8 (80) 16 (160) 32 (320)
    Rated Voltage DC 24V
    Power (W) at DC 24V, 20℃, no load 11 15 20 25 35 45 60
    Weight (kg) 0.7 1.23 2.18 3.93 8.1 12.3 23.5
    Maximum Speed (r/min) 1800
    Document Download Electromagnetic Brake Installation Manual

    Electromagnetic Clutch Dimension (Unit=mm)

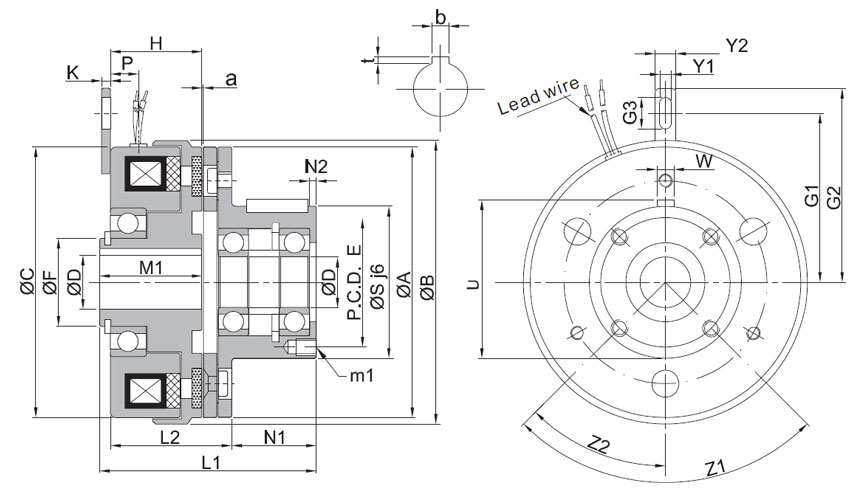

    DC electromagnetic clutch dimension

    Model ATO-MCS1-006 ATO-MCS1-015 ATO-MCS1-025 ATO-MCS1-050 ATO-MCS1-100 ATO-MCS1-200 ATO-MCS1-400
    Radius A 63 80 100 125 160 200 250
    B 67.5 85 106 133 169 158 264
    C 67.5 85 106 133 169 212.2 264
    D (Hole Dimension) 12 15 20 25 30 40 50
    E1 33 37 47 52 62 74.5 101.5
    F 20 25 30 40 50 65 80
    H 24 26.5 30 33.5 37.5 50 65
    K 2 2 2 2 3.2 3.2 4
    L1 55 64.5 75 90.5 108.5 131.5 165
    L2 31.5 35.5 41.5 46.5 54 64.5 75
    M1 27 29.5 34 37.5 42 50 54
    N1 20.5 26 30 40 50 60 70
    P 7.5 8 9 9 11.5 12.5 13
    S 38 45 55 64 75 90 115
    T 6 8 10 12 15 18 22
    a 0.2(±0.05) 0.3(+0.05-0.1) 0.5(-0-0.15)
    Shaft G1 42.5 57.5 62.5 77.5 100 115 140
    G2 50 65 70 85 112 135 160
    G3 9.5 10.5 11.5 11.5 18.5 20 20
    U 39.5 47 57 67 78 93.5 118.5
    W 4 5 5 7 7 10 12
    Y1 4.5 5.5 6.5 6.5 9 10.5 10.5
    Y2 14 16 16 16 25 35 40
    b 4 5 5 7 7 10 12
    t 1.8 2.3 2.3 3.3 3.3 3.8 3.8
    m1 3-M4*0.7P 4-M4*0.7P 6-M5*0.8P 6-M6*1.0P
    Z1 4-90°
    Z2 60° 45° 30° 45° 225°

    Electromagnetic Clutch applications


    Electromagnetic brake applications

    Tips: Electromagnetic clutch troubleshooting

    The electromagnetic clutch has a simple structure, so it is extremely convenient to install and maintain. However, during the use process, the electromagnetic clutch will have different failures due to various factors. What types of common faults in the electromagnetic clutch are generally used? The following is a brief introduction to the common faults of the electromagnetic clutch and the causes.

    Most of the electromagnetic clutch failures occur during start-up, idling, and load, but occur more during the start-up period. The main performance is that it cannot be started, or the voltage of the input electromagnetic clutch is too low. The conventional input voltage is DC24V. And the power is unstable, slipping or the temperature is too high. However, there are also special circumstances, so pay attention to the requirements when inputting the voltage. The elimination method is to detect whether the input voltage is the required voltage of the electromagnetic clutch. The coil is short-circuited. In case of such failure, it is usually replaced or repaired. It is recommended to modify or replace the modified electromagnetic clutch circuit.

    Unstable operation, it is very likely that the input voltage is unstable, the power of the detection power supply is greater than 1.5 times the rated power of the electromagnetic clutch, and the voltage fluctuation is in the range of +-5%. The solution to unstable operation is to check the voltage and stabilize the voltage. There is another case where the friction is raised, and the coil is burned out or short-circuited due to heat generation.
