Electric Chain Hoist Price List
Electric hoist is a common light and small lifting equipment, mainly composed of electric motor, transmission mechanism, drum or sprocket, hook, steel wire rope or chain. It is generally installed on top of overhead cranes and gantry cranes.

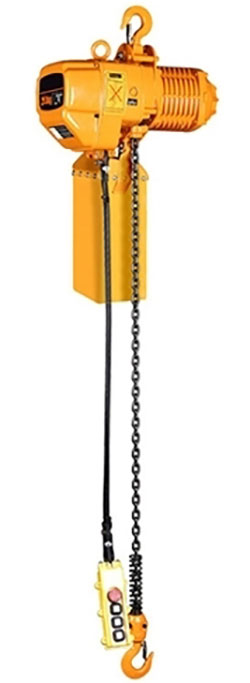

Traditional electric hoists can be divided into two types: wire rope electric hoists and electric chain hoists. The chain electric hoist is a type of electric hoist that uses a welded circular chain as its load-bearing device. Compared with wire rope electric hoists, the structure is lighter and the price is cheaper. Therefore, in this article, ATO industrial automation will list the prices of electric chain hoists with different capacities for you.
Electric Chain Hoist Price List
| Product | SKU | Capacity (ton) | N.W. / G.W. (kg) | Motor power (Kw) | Φ of Load Chain (mm) | Price (USD) |
 |
ATO-ECH-0D25 | 1/4 | 45 / 55 | 0.8 | 6.3 | 1545.69 - 1604.32 |
| ATO-ECH-0D5 | 1/2 | 47 / 58 | 0.8 | 6.3 | 2138.47 - 2194.14 | |
| ATO-ECH-01 | 1 | 61 / 72 | 1.5 | 7.1 | 2682.77 - 2738.44 | |
| ATO-ECH-02 | 2 | 73 - 115 / 85 - 127 | 1.5 - 3 | 7.1- 10 | 3802.85 - 3858.52 | |
| ATO-ECH-03 | 3 | 85 -131 / 95 - 143 | 1.5 - 3 | 7.7 - 11.2 | 4662.15 - 4717.82 | |
| ATO-ECH-05 | 5 | 151 / 163 | 3 | 11.2 | 5485.63 - 5541.30 | |
| ATO-ECH-10 | 10 | 300 / 320 | 3 * 2 | 11.2 | 11325.48 - 11381.15 |
Note: The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us. Generally, it's cheaper than the price in the table.
Advantages of Electric Chain Hoist:
- Compact structure with light weight
- Improve efficiency
- Easy to operate
- Maintenance free and cost-effective
With the continuous progress of technology, the performance and function of electric hoists are also constantly improving, providing more convenient and efficient solutions for industrial production, and there is a trend of large-scale popularization in the future. Energy saving, low noise, and low maintenance costs are all advantages of the electric chain hoist, which can cover most general industries and fields.
