    Digital Stepper Motor Driver, 2 phase , DC 24-70V

    5 out of 5 based on 1 reviews | Write a review
    $106.35
    ATODSP2806 is digital 2-phase stepper motor drive, it is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Capable of driving Nema 17, 23, 34 closed-loop hybrid stepper motors.
    *
    SKU: ATO-STEP-D2470
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2-phase digital stepper driver, 24-70V DC, 2.4-6A for Nema 16, 17, 23 2 phase stepper motor, manufacturer direct sale.
    Features:

    • 32-bit DSP digital control mode.
    • Low vibration, low noise, low power consumption.
    • Flexible subdivision runs more smoothly.
    • Automatic memory power phase.
    • Optically isolated input signal.
    • Space vector bipolar constant current drive.
    • Maximum output current 6A / phase.
    • Provide energy-saving automatic half-current lock function.
    • Maximum 25600 steps / turn of the 16 subdivision mode optional.

    Specifications

    Basics Information
    Model DS2806
    Size 135 x 77 x 46 mm
    Phase 2
    Weight 0.2 kg
    Supply Power 24-70V DC
    Capacity 0.2 kVA
    Output Current Peak 6.0A/Phase (Max.)
    Driver Method Space vector bipolar constant current drive
    Isolation Resistance >100 MΩ
    Dielectric Strength 1kV, 1Min
    Cooling Method Natural Convection
    Environment
    Operation Environment Temperature -5℃~+40℃
    Humidity <80% RH
    Vibration 5.9m/s(Max.)
    Storage Environment Temperature -40℃~+55℃
    Humidity <93% RH
    Function Description
    Functions Operation Instructions
    Signal Interface PUL PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
    DIR DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
    ENA ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
    Motor Interface A A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
    B B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
    When the A and B two phase windings are switched, the motor direction is reversed
    Indicator Light 1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
    Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

    Driver Wiring Diagram

    Dsp2806 wiringDriver Wiring Diagram

    driver circuit

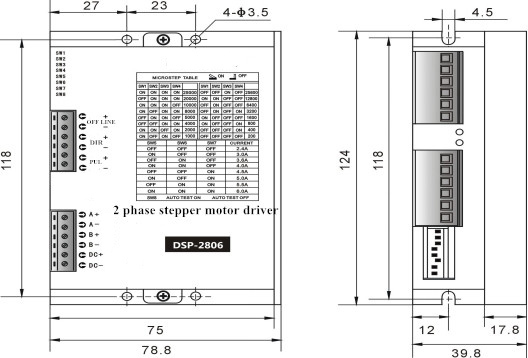

    Dimension (Unit: mm)
    dsp2806 dimension
    Tips: what circumstance is offline signal of hybrid stepper driver generally used?
    When the offline signal FREE is low level, the current output to the motor by the driver is cut off and the motor rotor is at free state (offline state). as for some automatic device, under the circumstance that the power of drive is not disconnected, it is required to directly rotate the motor shaft (manual mode) to put the signal FREE on the bottom, so that the motor is at offline state. As for manual operation or adjustment, after manual completion, the signal FREE can be put in higher position to realize continuous automatic control.
