    DC Reactor Price List

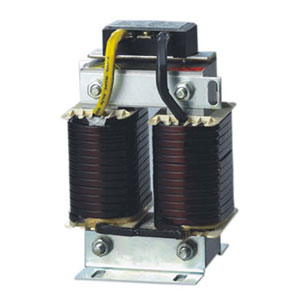

    The DC reactor, also known as the flat wave reactor, is mainly used on the DC side of the converter, and has more applications in general inverters. A DC current having an AC component flows DC reactorthrough the reactor. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current ripple value, improve the input power factor, and suppress the harmonics generated by the converter.
    ATO provides you a series of DC reactor for choice, 2 hp, 3 hp, 10 hp, 25 hp to 200 hp DC reactor. Here list some prices of DC reactor in the table below for your reference.

    ATO DC Reactor Price List

    Name SKU Price Rated Current
    2 hp (1.5kW) DC Reactor for VFD ATO-DCR-2 $92.89 8A
    3 hp (2.2kW) DC Reactor for VFD ATO-DCR-3 $95.79 10A
    5 hp (4kW) DC Reactor for VFD ATO-DCR-5 $117.84 10A
    7.5 hp (5.5kW) DC Reactor for VFD ATO-DCR-7B5 $128.92 15A
    10 hp (7.5kW) DC Reactor for VFD ATO-DCR-10 $149.72 20A
    15 hp (11kW) DC Reactor for VFD ATO-DCR-15 $169.32 30A
    20 hp (15kW) DC Reactor for VFD ATO-DCR-20 $169.32 40A
    25 hp (18kW) DC Reactor for VFD ATO-DCR-25 $277.06 50A
    30 hp (22kW) DC Reactor for VFD ATO-DCR-30 $290.98 60A
    40 hp (30kW) DC Reactor for VFD ATO-DCL-40 $317.69 80A
    50 hp (37kW) DC Reactor for VFD ATO-DCR-50 $352.92 110A
    60 hp (45kW) DC Reactor for VFD ATO-DCR-60 $395.07 120A
    75 hp (55kW) DC Reactor for VFD ATO-DCR-75 $421.87 150A
    100 hp (75kW) DC Reactor for VFD ATO-DCR-100 $526.17 200A
    125 hp (90kW) DC Reactor for VFD ATO-DCR-125 $578.46 250A
    150 hp (110kW) DC Reactor for VFD ATO-DCR-150 $625.46 280A
    200 hp (160kW) DC Reactor for VFD ATO-DCR-200 $692.39 400A

    Note: The prices in the table are just for your reference. If you want to get the latest quotation, please feel free to contact us. Generally, it's cheaper than the price in the table.

    The Role of DC Reactor

    A DC reactor is connected in series on each pole of the converter station. The inductance is about 0.4 ~ 1.0H. Its main functions are as follows:
    1. Prevent inverter commutation failure.
    2. Reduce the voltage and current harmonics in the DC line.
    3. Reduce the ripple factor.
    4. Limit the current in the rectifier when the line is shorted.
    However, it should be noted that the value of the inductor must ensure that the DC circuit does not resonate at the power frequency. The DC reactor can increase the power factor to above 0.9. Due to their small size, many inverters have installed DC reactors directly in the inverter. In addition to improving the power factor, the DC reactor can also reduce the impact immediately after the power is turned on. If equipped with both AC reactor and DC reactor, the power factor of the variable frequency speed control system can be increased to above 0.95.
