DC Contactors
800A High Voltage DC Contactor, 12V/24V coil
$258.59
SKU: ATO-DCCON-HV800
Buy high voltage DC contactor online, with 800 amps rated load current of contact circuit, 1NO or 1NC contact form, available with 6V/12V/24V/36V/48V/60V/72V/84V/120V/150V/220V DC, 220V AC coils. This magnetic HVDC contactor is widely used in the DC high voltage field and offers exceptional performance in an extremely small and lightweight device.
100A DC Reversing Contactor, 2 pole, 12V/24V/48V
$126.46
SKU: ATO-DCCON-R100
Low cost reversing contacor with two interlocked contacts, to prevent the motor from running forwards and backwards simultaneously. 2 pole DC contactor with 2NO and 2NC (DPST-NO, DPST-NC) contact form, coil rated voltage with 12V/24V/48V DC for choice.
125A DC Reversing Contactor, 2 pole, 12V/24V/48V
$132.41
SKU: ATO-DCCON-R125
Excellent conductivity reversing contacor is designed for demanding forward/reverse control of the motors. 2 pole DC contactor with 12V/24V/48V coil, 2NO and 2NC contact form, and is available with two optional auxiliary contacts.
200A DC Reversing Contactor, 2 pole, 12V/24V/48V
$164.46
SKU: ATO-DCCON-R200
Contact circuit rated current 200 amps, 2 pole DC contactor with 12V/24V/48V coil for choice, DPST-NO, DPST-NC contact form, two interlocked contacts are designed to prevent the motor from running forwards and backwards simultaneously.
300A DC Reversing Contactor, 2 pole, 12V/24V/48V
$127.79
SKU: ATO-DCCON-R300
2 pole DC reversing contactor with 2NO and 2NC contact form, 300 amps rated load current of contact circuit, coil rated voltage with 12V/24V/48V DC for selection. This DC reversing contactor is used to control the direction of current flow in a direct current circuit, allowing for the reversal of the motor or other load.
400A DC Reversing Contactor, 2 pole, 12V/24V/48V
$257.08
SKU: ATO-DCCON-R400
2 pole reversing contactor has been designed for direct current load, 2NO and 2NC ( DPST-NO, DPST-NC) contact form, rated load current is 400A. IP 50 protection, easy and quick installation, manufacturer direct sale.

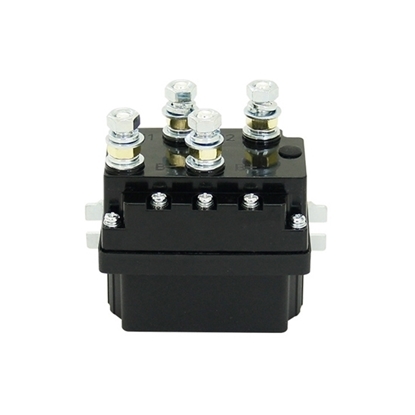

500A DC Reversing Contactor, 2 pole, 12V/24V/48V
$153.19
SKU: ATO-DCCON-R500
2 pole DC reversing contactor with 500 amps rated load current, 2NO and 2NC contact form, coil rated voltage with 12V/24V/48V DC available. This economical price DC reversing contactor prevents the motor from running forward and backward simultaneously.

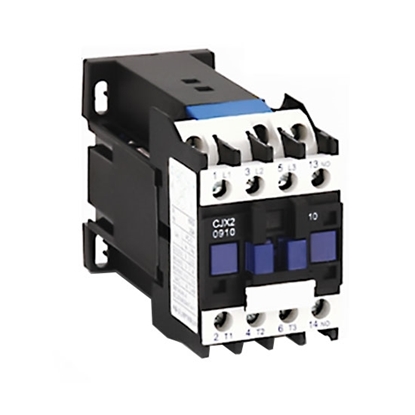

12 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$54.99
SKU: ATO-DCCON-12A
12 amp DC coil controlled AC contactor with 3 or 4 pole for sale at low price. 12V, 24V, 48V, 220V coil voltages are optional, rated power up to 7.5 kW (10HP). It is an electrical switching device widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

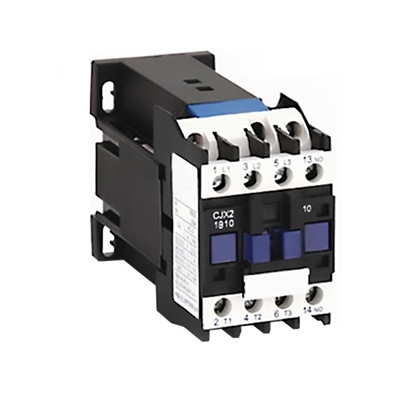

18 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$56.99
SKU: ATO-DCCON-18A
3 or 4 pole AC contactor with DC control is an electrical switching device to control electric motors, lighting and other electrical loads at 18 amp rated current. Rated power up to 10 kW, contact form 3 NO or 2NO+2NC, coil rated voltage of 12V, 24V, 36V, 48V, 110V, 220V for your choices.
25 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$64.79
SKU: ATO-DCCON-25A
Economical price 25 amp AC contactor with DC coil control 3 or 4 pole for sale. It is an electrical switching device used to connect and break of the circuit load. 12V, 24V, 48V, 220V coil voltages are optional, rated power up to 15 kW (20HP), can meet the special demand of electric locomotive, diesel locomotive and electric motor car group.
32 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$66.29
SKU: ATO-DCCON-32A
12V 24V 48V 220V AC contactor with DC control works to connect and break of the circuit load, which can fully meet the special demand of electric locomotive, diesel locomotive and electric motor car group. 3 pole (3NO) or 4 pole (2NO+2NC) contact form, 32 amp, high performance and low price.
40 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$90.89
SKU: ATO-DCCON-40A
3 or 4 pole AC contactor is a DC controlled electrical switching device to control electric motors, lighting and other electrical loads at 40 amp rated current. Rated power up to 30 kW, contact form 3 NO or 2NO+2NC, coil rated voltage of 12V, 24V, 36V, 48V, 110V, 220V for your choices.
50 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$98.19
SKU: ATO-DCCON-50A
50A 3 or 4 pole AC contactor is an electrical switching device with DC control to control electric motors, lighting and other electrical loads at 12V, 24V, 36V, 48V, 110V, 220V coil rated voltage. Rated power up to 37 kW, contact form 3 NO or 2NO+2NC for your choices.

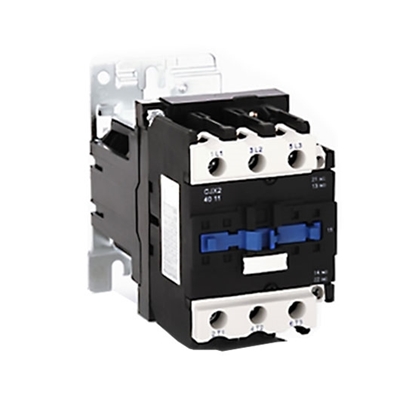

65 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$92.09
SKU: ATO-DCCON-65A
Low cost 65A AC contactor is an electrical switching device with DC control to control electric motors, lighting and other electrical loads at 12V, 24V, 36V, 48V, 110V, 220V coil rated voltage. Rated power up to 37 kW, contact form 3 pole (3NO) or 4 pole (2NO+2NC) for your choices.
80 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$116.29
SKU: ATO-DCCON-80A
12V ~ 220V 80A AC contactor with DC control works to connect and break of the circuit load, It is designed for DC adjustable speed drive circuits which require a combination contacts of normally open and normally closed. 3 pole (3NO) or 4 pole (2NO+2NC) contact form available, high performance and low price.
9 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$54.69
SKU: ATO-DCCON-9A
AC contactor is an DC controlled device used to switch current on and off, with 3 pole or 4 pole contact form, 9 amp rated current, making and breaking the connection between the power source and the load. 12V, 24V, 48V, 220V coil voltages are available.

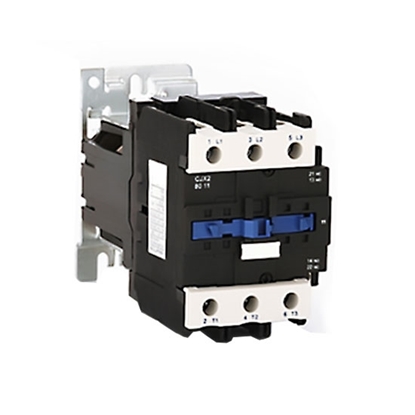

95 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil
$117.19
SKU: ATO-DCCON-95A
High performance AC contactor with DC control is an electrical controlled device used to switch current on and off, with 3 pole or 4 pole contact form, 95 amp rated current, making and breaking the connection between the power source and the load. 12V, 24V, 48V, 220V coil voltage are available.
The wide range of DC contactors from ATO will fit your automation requirement. Contactor relays rating current from 30 amps to 600 amps, available with 12 volt, 24 volt, 48 volt DC coil. We provide high voltage DC contactors with good performance in small size, 12-900V rated load voltage of contact circuit, particularly for DC high voltage field. We also offer single pole universal DC magnetic contactors and 2 pole DC reversing contactors for the industrial applications that requires the motor to run in reverse. Buy a 12V/ 24V/ 48V DC contactors online at best price on ATO.com, you will get a desired one to meet your needs.
