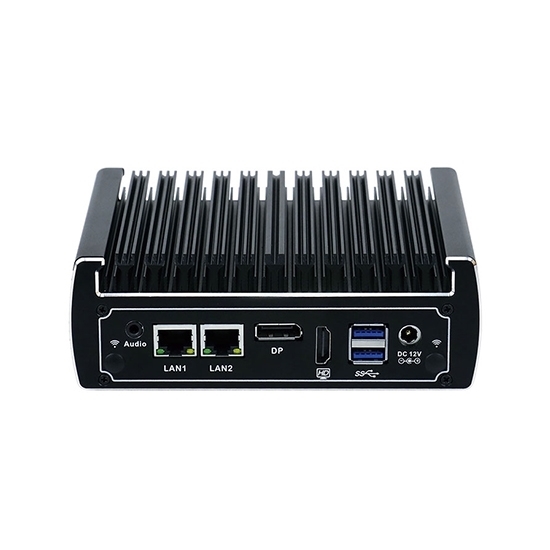

Fanless industrial PC has mini size, embedded installation. Optional CPU Intel Core i3 7100U or i5 7200U dual core quad threading, usable system Linux/Windows 7/Windows 10. Low price industrial computer from professional manufacturer, used in industrial automation, medical, logistics transportation, warehouse, electronic education, etc.
Specification
Model |
ATO-N13 L2 |
CPU |
Intel Core i3 7100U (dual core quad threading, 2.4GHz) |
Intel Core i5 7200U (dual core quad threading, 2.5GHz, max turbo 3.1GHz) |
CPU Architecture |
KabyLake-U |
Usable System |
Linux, Windows 7, Windows 10 |
RAM |
1*DDR4 1866/2133 MHz SODIMM RAM Slot, max. 16GB |
Display Chip |
Integrated Intel HD Graphics 620 |
Display Port |
1*HDMI, 1*DP |
Front I/O Interface |
4*USB 3.0 |
1*Power Switch |
2*COM |
Rear I/O Interface |
2*RJ45 LAN |
2*USB 2.0 |
1*HDMI |
1*DP |
1*Audio (supports Mic and Speaker at the same time) |
1*DC 12V input |
Expansion Slot |
1*M.2 2280 Slot (Compatible with PCIE X4 and SATA signal) 1*MINI PCIE Slot (WIFI/3G/4G optional, please contact us for configuration), embedded SIM slot on the back |
Network |
2*RTL8111E 10/100/1000M LAN |
Storage |
1*M.2 2280 slot, 1*2.5" HDD |
Input Voltage |
DC 12V |
Other Function |
Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0~255 level) (Standard version doesn't set these function) |
Working Temperature |
0 ~ +50℃ (Commercial HDD), -20℃ ~ +50℃ (Industrial SSD), Surface air flow |
Working Humidity |
5%~95% non-condensing |
Certification |
CE, CCC, FCC Class A, ROHS |
Color |
Black (Color can be customized) |
Material |
High-quality all aluminum, surface anodic oxidation |
Dimension |
155 * 126.5 * 52.5mm |
Net Weight |
1.6 kg |

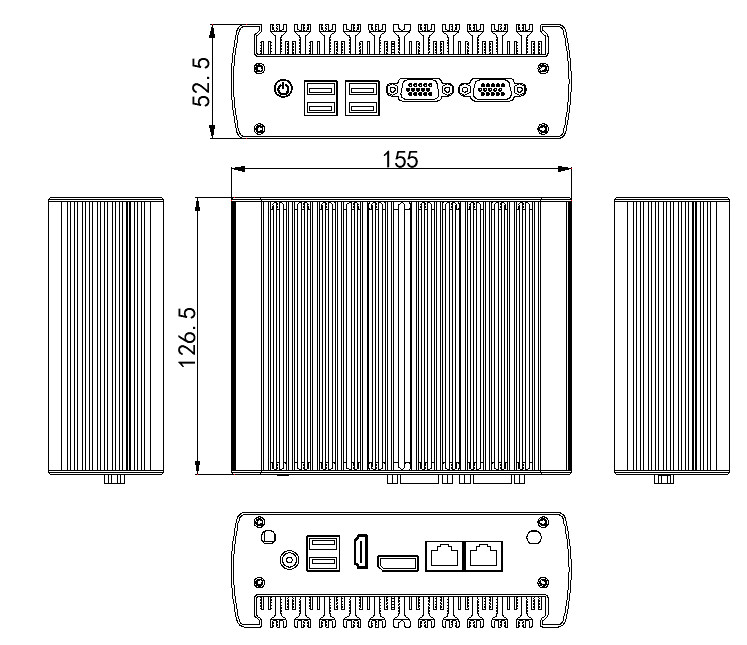

Mini Fanless Industrial PC Dimensions Diagram (Unit: mm)
Accessories List
Name |
Quantity |
Specification |
Power Adapter |
1 |
DC 12V, 5A |
Power Cord |
1 |
Any Plug Optional (US, EU, UK etc.) |
VESA Bracket |
1 |
Standard |
Tips: How to solve the noise of fanless industrial PC?
Reduce the noise of fanless industrial PC radiators
- Mute radiator. The principle of silent radiator is to increase the fan speed, speed up the air flow, increase the fan diameter, widen the air duct, increase the air area of radiator. Alternatively, the fan shape of radiator can be optimized, and drainage design can be used to avoid the flowing of surrounding airflow instead of forcing the air to flow.
- Make radiator and bottom to be integrated. Through various accessories of fanless industrial PC, the external cold air is sucked in by the radiator in front of bottom and the radiators on both sides of bottom. Part of the hot air passing through the CPU is exhausted from the radiator behind the bottom, and the other part of the hot air is exhausted through power radiator. This design can increase the air volume of radiator, increase the speed, effectively dissipate heat, reduce the noise, and extend the service life of fanless industrial PC.
Speed control
The main goal of a radiator fan is to meet the heat dissipation requirements of a high-load CPU. However, in actual use, fanless industrial PCs mostly use mid-, low-load and mid-end mainstream processors, and do not need to use a large speed to provide a large air volume. Therefore, the noise of fanless industrial PC radiator can be reduced by controlling the speed.
