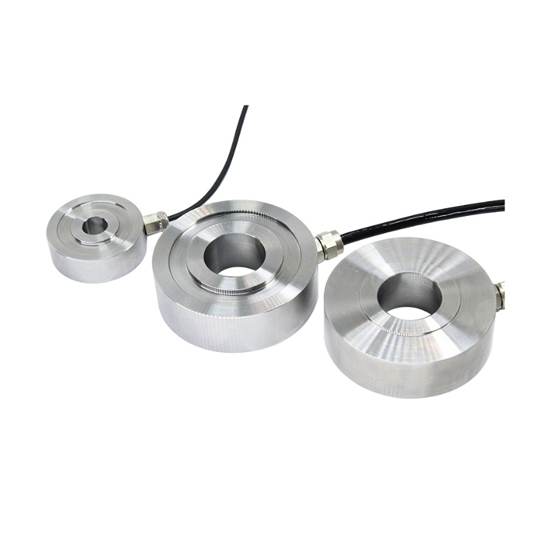

Compression Force Sensor, Ring Type, 0.5KN-200KN

The compression force sensor has a capacity range of 0.5-200kN, with optional capacities from 0.5kN to 200kN. It features a sensitivity of 1.0 ± 10% mV/V, zero output of ±2%F.S., and high accuracy with 0.3%F.S. non-linearity and hysteresis. With its hollow design, it is ideal for measuring extrusion force, assembly interference, and other industrial force control applications.

After purchasing compression force sensor, you can buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

Feature

• Material: Made from high-quality stainless steel, ensuring durability and resistance to corrosion.
• Sealed Design: Compression force sensor has tight welding and sealing for oil-proof, water-proof, and corrosion-resistant properties, making it suitable for harsh environments.
• High Strength: The use of premium stainless steel ensures excellent machine resistance, good heat dissipation, and a longer service life.
• Wide Range of Applications: Primarily used for measuring compressive force in hollow designs, such as pressure detection and control for various industrial forces.
• Versatile Measurement: Ideal for applications in extrusion force measurement, assembly interference detection, and other industrial force control systems.
• Customization Options: Available in a wide range of capacities from 0.5KN to 200KN, with customizable diameters (4-16mm or 7-30mm).

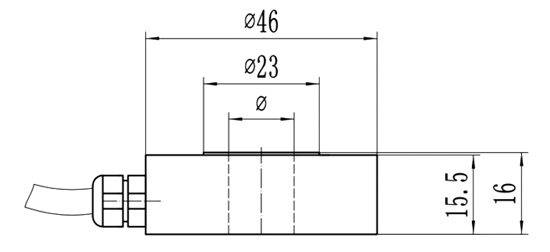

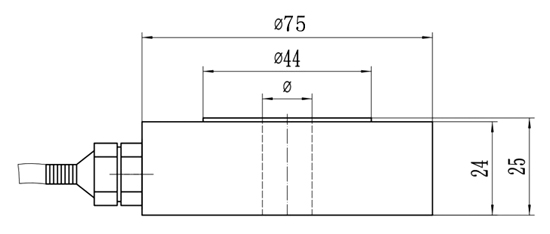

Dimension (unit: mm)

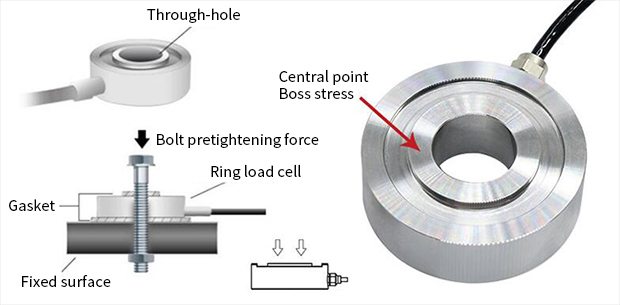

Force Mode

Wiring Method

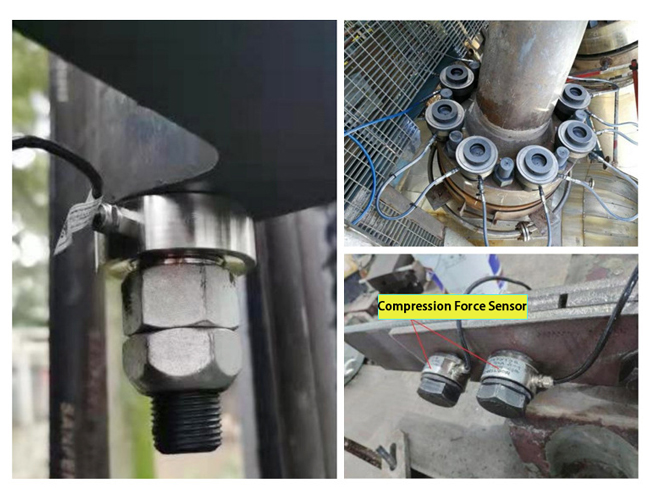

Installation Case

Tips: What are the advantages of using a ring-type sensor over other designs?

The ring-type compression force sensor offers unique advantages, particularly in applications where the force needs to be applied in a circular or cylindrical manner. One of the main benefits is its ability to be installed around cylindrical objects, making it ideal for measuring forces on shafts, pipes, or other circular components. This design also minimizes the need for additional mechanical attachments and provides a more uniform distribution of force across the sensor. Additionally, ring-type sensors are often easier to integrate into systems where space is limited or where the force measurement needs to be taken at a specific point around the object.
