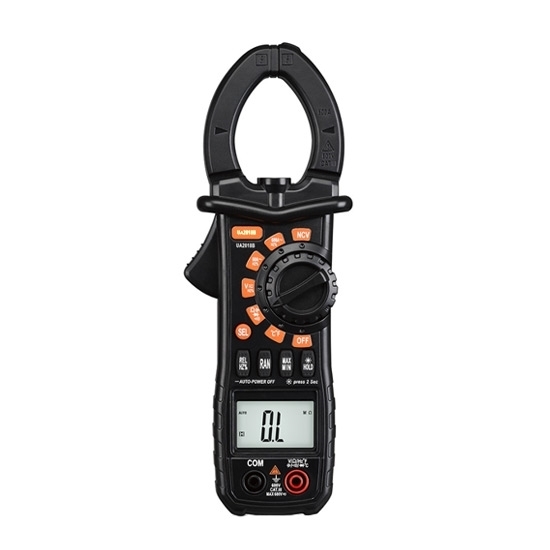

Clamp Meter with 600A AC Current/Capacitance/Temperature/TRMS/NCV

Write a review

$103.89

Old price: $115.43

Clamp meter with TRMS/NCV/LED torch functions has the measuring range of AC current 0-600A, AC/DC voltage 0-600V, resistance 0-20MΩ, frequency 0-100kHz, capacitance 0-100mF, temperature -40℃~+1000℃ (-40℉~1832℉) and duty ratio 0.1%~99.9%. The maximum jaw opening size is 36mm.

SKU: ATO-CLAM-2018B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Digital clamp meter has AC current range 0-600A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 36mm, 4 digit display and maximum value 5999.

Specification:

Basics	Model	ATO-UA2018B
	Weight	530g
	Size (LWH)	2107835mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	36mm
	Woring environment	Temperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a pair of temperature probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	AC current	600A	±(3.0%+10 digits)
	Inrush current	600A	±(5.0%+60 digits)
	DC voltage	600V	±(0.8%+5 digits)
	AC voltage	600V	±(1.5%+10 digits)
	Resistance	20MΩ	±(1.2%+3 digits)
	Frequency	100kHz	±(3.0%+10 digits)
	Capacitance	100mF	±(4.0%+3 digits)
	Temperature	-40℃~+1000℃ (-40℉~1832℉)	±(1.0%+3 digits)
	Duty ratio	0.1%~99.9%	±(3.0%+3 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	NCV	Non-contact voltage test, with buzzer and indicator
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic range selection and manual range selection
	Back light	Back light for LCD display
	Inspection light	Inspection light for clamp operation
	LED torch	A LED torch for night lighting

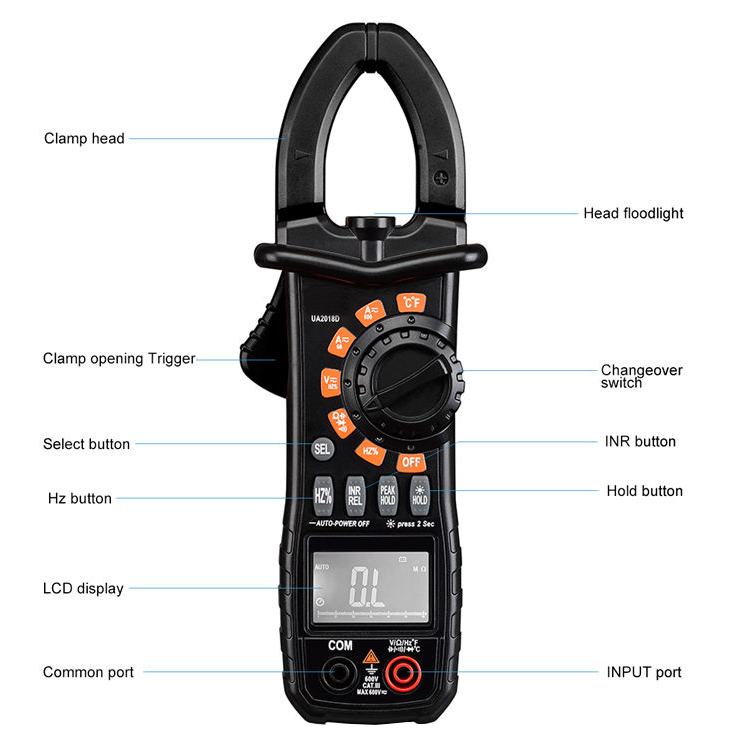

Details

Tips: How to measure the temperature by using a clamp meter?
Do not enter a voltage higher than 60V DC or 30V AC in temperature measurement function to avoid human body damage or clamp meter damage.

Turn the switch to the temperature measurement position and select (press 'SEL') Celsius or Fahrenheit as required.
Connect the negative terminal (black) and the positive terminal (red) of the K type thermocouple to the COM input jack and temperature input jack separately.
The other end of the thermocouple (test side) close to the surface of the measured object.
The measured temperature value will be read by the LCD display.

Note: The highest measurement temperature of K-type thermocouple in accessory is 250 ℃ (482℉).
