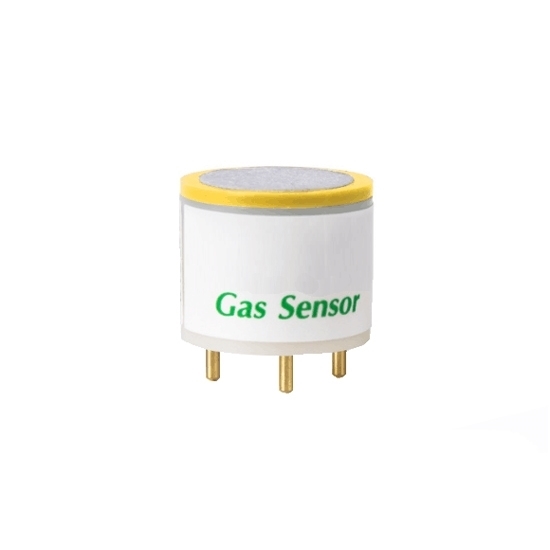

Vinyl Chloride (C2H3CL) Gas Sensor, 0~20ppm/0~100ppm

$145.95

Higher quality vinyl chloride (C2H3CL) gas sensor has two ranges to choose from 0~20ppm or 0~100ppm. This electrochemical three-electrode gas sensor has a maximum load concentration of 50 PPM, a sensitivity of 450±200 nA/PPM, a bias voltage of +300mV, a resolution of 0.5 PPM, and supports a load resistance of 5~30Ω.

Measuring Range *

SKU: ATO-GS-C2H3CL

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This low price vinyl chloride (C2H3Cl) gas sensor comes in 020 PPM or 0100 PPM options. Ideal for power plants, industries, medical use, smart cities, instruments, air monitoring, and firefighting.

Specification

Model	ATO-S4C₂H₃Cl-20
Detected Gas	C2H3Cl (Vinyl Chloride)
Detection Principle	Electrochemical Three-Electrode
Maximum Load Concentration	50 PPM
Detection Range	0~20PPM, 0~100ppm (optional)
Sensitivity	450±200 nA/PPM
Bias Voltage	+300mV
Resolution	0.5 PPM
Load Resistance	5~30Ω
Response Time	<70s
Temperature Range	-30°C~50°C
Humidity Range	15%RH to 90%RH (Non-condensing)
Repeatability	2% Output Signal
Long-term Stability	<2% Signal/Month
Linearity	Linear
Operating Pressure	90~110 KPa
Service Life	2 Years
Warranty	12 Months After Delivery

Feature

High Accuracy: Vinyl chloride gas sensor ensures precise detection of methanol gas concentrations.
Strong Anti-Interference: Effectively reduces the impact of external environmental factors.
Quality Assurance: C2H3CL gas sensor manufactured with high standards for reliability and durability.
Fast Response: Quickly detects and reports gas concentration changes for safety.

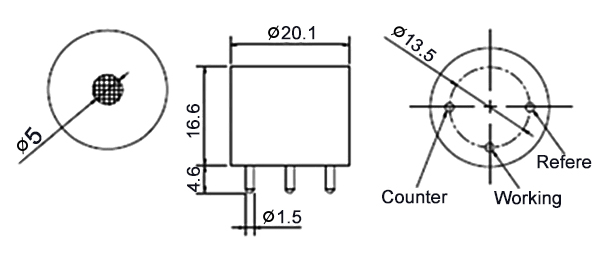

Dimension (Unit: mm)

Crossover Interference

The vinyl chloride sensor also responds to gases other than the target gas. For reference, the response characteristics of the sensor to several common interfering gases are listed in the table below. The data in the table are typical responses of interfering gases at a given concentration.

Interfering Gas	Test Concentration (ppm)	Displayed Value (ppm C2H3CL)
Ammonia (NH₃)	40	0
Carbon Monoxide (CO)	25	13
Sulfur Dioxide (SO₂)	5	3
Hydrogen Sulfide (H₂S)	20	32
Ammonia (NH₃)	40	0
Ethylene (C₂H₄)	50	60
Methanol (CH₃OH)	50	60
Acetylene (C₂H₂)	40	70

Basic Test Circuit

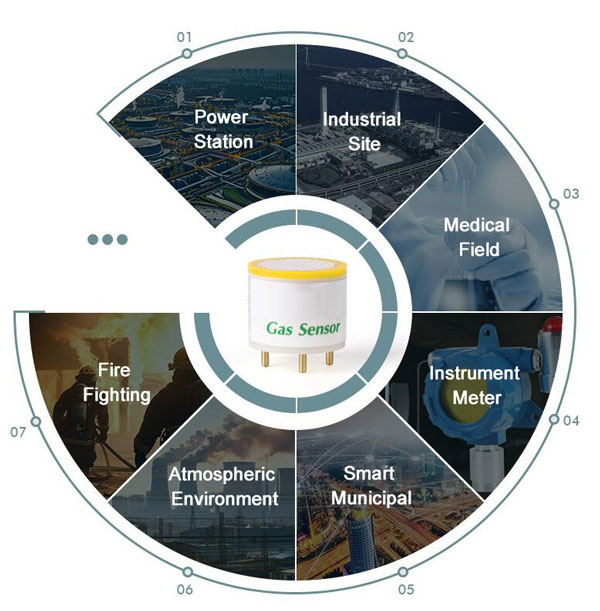

Application

Vinyl chloride (C2H3CL) gas sensor can be used in power plants, industrial sites, medical fields, smart municipalities, instrumentation, atmospheric environments, and fire fighting.

Tips: How does the sensor differentiate Vinyl Chloride from other gases?

The vinyl chloride (C2H3CL) gas sensor's electrochemical detection mechanism allows it to be highly selective to vinyl chloride gas by utilizing a specific electrode reaction that only responds to vinyl chloride molecules. Additionally, advanced signal processing and filtering techniques help minimize cross-sensitivity to other gases. While some gases may cause slight interference, the sensor is calibrated to prioritize vinyl chloride detection, ensuring high specificity and accuracy in environments where multiple gases are present.
