12V-56V Brushless DC Motor Controller for 12/24/36/48V BLDC Motor

5 out of 5 based on 3 reviews | Write a review

$196.98

Brushless DC motor controller drives motor under 120W, used for 12/24/36/48V BLDC worm gear motor or planetary gear motor to perform speed control, power supply range from 12V to 56V, typical power 48V DC. This motor driver is compact and easy to operate with an external potentiometer.

Voltage *

SKU: ATO-BLDC-C300B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Brushless DC motor driver works at 12V to 56V power supply and typical power is 48V DC. Its speed control is up to 20000 rpm, output current is up to 15A, used for worm and planetary gear motor.

Specification

Model	ATO-BLD300 (Click it to see more controller specs)
Power Supply	12V ~ 56V DC
Typical Power	48V DC
Rated Current	15A
Max. Output Current	15A
Over Voltage Protection	5V
Under Voltage Protection	12mA
External Potentiometer	10KΩ
Input Analog Voltage	5 VDC
Speed Control Range	20000rpm
*Limited by the maximum rated speed of the motor

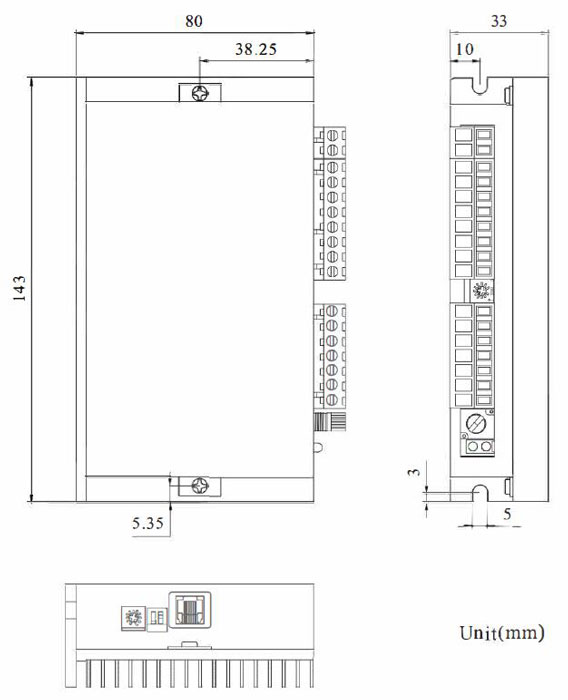

Dimensions (Unit: mm)

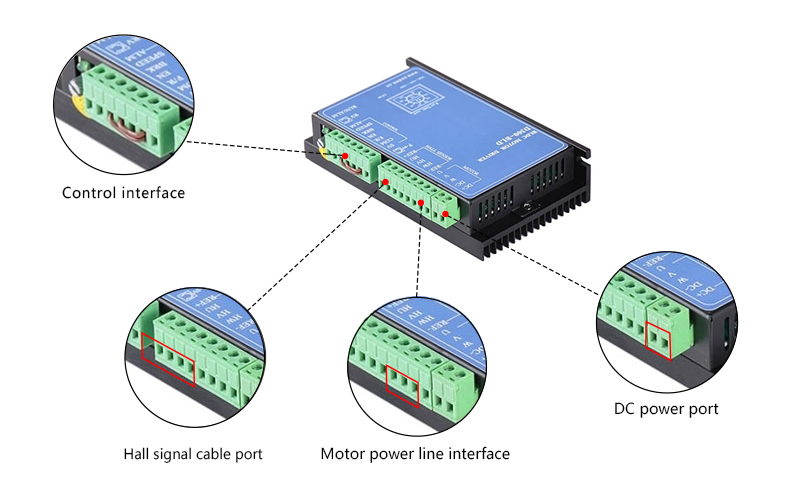

Details

Tips: Working principle of brushless DC motor controller

Brushless DC motor controller uses the voltage and frequency modulation technology in power electronics technology to modulate the DC power stored in the power battery into rectangular wave or sine wave AC power required to control the motor, and change the voltage, current amplitude or frequency of the output power. In turn, the motor speed and torque are changed to achieve the purpose of controlling the speed and acceleration of the entire vehicle.

Existing reviews of 12V-56V Brushless DC Motor Controller for 12/24/36/48V BLDC Motor

Need a data sheet

Can this brushless DC motor controller be used to control the winding current of the motor? Please send its data sheet.

From: Beahn | Date: 05/04/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Please see the data specification and manual in this one, maybe this product is more suitable:https://www.ato.com/Content/doc/digital-rotary-torque-sensor-user-manual-upgrade-version.pdf
You need to tell us: what is the measured maximum torque in Nm? Also what is the max rpm?

Excellent performance.

Very impressed so far. This BLDC motor controller worked great with DC worm gear motors. The speed, brakes, and direction change inputs all work and are responsive. Quite good especially considering the price. Will continue testing for longevity.

From: Alexander | Date: 19/05/2022

Was this review helpful? Yes No (0/0)

Very good motor speed controller

Good little speed controller! I used this motor controller to replace a bad one. It works perfectly! It can govern the speed very well. This brushless motor controller is easy to intall.

From: Peter | Date: 23/03/2022

Was this review helpful? Yes No (0/0)
