Hi, I'm looking for a 3 Axis Load Cell with a capacity range from 1 N up to 100 N.
Any recommendations?
Any recommendations?
1
Shopping cart
Search
Thursday, September 26, 2024 11:19:54 PM
Looking for a 3 Axis Load Cell for Linear Tribometer
Ellertson
- 5
ATO
- 77
You might want to check out the ATO-LC-MA02. It has a 100N capacity, and it costs around USD 1337.57. You can find more details, and specs, and place an order here: https://www.ato.com/3-axis-load-cell-50n-to-5000n. Delivery time is approximately 12 days with free shipping.
0
ATO.com
Ellertson
- 5
ATO wrote:
Thanks! I have a few questions about this load cell. Do they provide all the necessary cables to connect it?
Also, how can I visualize the signal?
You might want to check out the ATO-LC-MA02. It has a 100N capacity, and it costs around USD 1337.57. You can find more details, and specs, and place an order here: https://www.ato.com/3-axis-load-cell-50n-to-5000n. Delivery time is approximately 12 days with free shipping.
Thanks! I have a few questions about this load cell. Do they provide all the necessary cables to connect it?
Also, how can I visualize the signal?
0
ATO
- 77
Ellertson wrote:
Yes, the load cell comes with 3 sets of cables, each 2 meters long, for the X, Y, and Z force directions. Essentially, it works like three independent load cells. To visualize the signals, you'll need three digital display readouts, like the ATO-DPM-LC5D, which is a 5-digit display controller specifically for load cells. More details can be found here: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
Thanks! I have a few questions about this load cell. Do they provide all the necessary cables to connect it?
Also, how can I visualize the signal?
Also, how can I visualize the signal?
Yes, the load cell comes with 3 sets of cables, each 2 meters long, for the X, Y, and Z force directions. Essentially, it works like three independent load cells. To visualize the signals, you'll need three digital display readouts, like the ATO-DPM-LC5D, which is a 5-digit display controller specifically for load cells. More details can be found here: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
0
ATO.com
Ellertson
- 5
ATO wrote:
I'm designing a linear tribometer. The setup involves applying a constant force (Fz) and measuring the frictional force in the X (Fx) or Y (Fy) direction while the tribometer moves back and forth. I plan to connect the load cell to a DAQ system to visualize the frictional force, as shown in the image below.

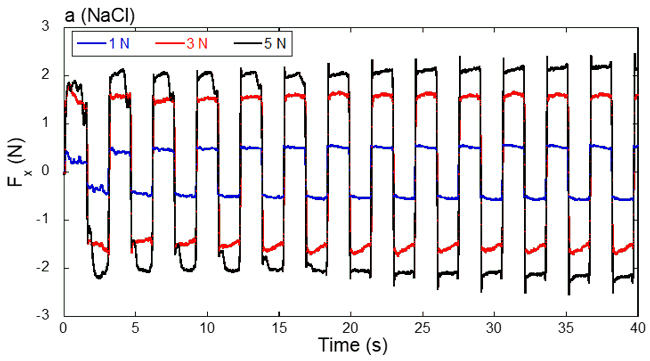

I applied a load of 1 N and recorded the friction force (Fx) during the movement. I repeated the process with 3 N and 5 N loads. Can I connect the load cell directly to a NI-DAQ system to visualize the data on my laptop using LabView?
Yes, the load cell comes with 3 sets of cables, each 2 meters long, for the X, Y, and Z force directions. Essentially, it works like three independent load cells. To visualize the signals, you'll need three digital display readouts, like the ATO-DPM-LC5D, which is a 5-digit display controller specifically for load cells. More details can be found here: https://www.ato.com/5-digit-display-controller-for-pressure-sensor
I'm designing a linear tribometer. The setup involves applying a constant force (Fz) and measuring the frictional force in the X (Fx) or Y (Fy) direction while the tribometer moves back and forth. I plan to connect the load cell to a DAQ system to visualize the frictional force, as shown in the image below.
I applied a load of 1 N and recorded the friction force (Fx) during the movement. I repeated the process with 3 N and 5 N loads. Can I connect the load cell directly to a NI-DAQ system to visualize the data on my laptop using LabView?
0
Stemmler
- 2
Ellertson wrote:
What signals does your NI-DAQ system support? Is it RS485, or analog signal 4-20mA or 0-10V? You might need an amplifier to transmit the output signals from the load cell. I found this Digital Load Cell Amplifier on ATO.com that you can try.
I'm designing a linear tribometer. The setup involves applying a constant force (Fz) and measuring the frictional force in the X (Fx) or Y (Fy) direction while the tribometer moves back and forth. I plan to connect the load cell to a DAQ system to visualize the frictional force, as shown in the image below.
I applied a load of 1 N and recorded the friction force (Fx) during the movement. I repeated the process with 3 N and 5 N loads. Can I connect the load cell directly to a NI-DAQ system to visualize the data on my laptop using LabView?
I applied a load of 1 N and recorded the friction force (Fx) during the movement. I repeated the process with 3 N and 5 N loads. Can I connect the load cell directly to a NI-DAQ system to visualize the data on my laptop using LabView?
What signals does your NI-DAQ system support? Is it RS485, or analog signal 4-20mA or 0-10V? You might need an amplifier to transmit the output signals from the load cell. I found this Digital Load Cell Amplifier on ATO.com that you can try.
0
Ellertson
- 5
Stemmler wrote:
The DAQ supports analog signals of +/-5 V or +/-10 V. Thanks for reminding me about the amplifier. Would I need three amplifiers for this sensor, or is one enough?
What signals does your NI-DAQ system support? Is it RS485, or analog signal 4-20mA or 0-10V? You might need an amplifier to transmit the output signals from the load cell. I found this Digital Load Cell Amplifier on ATO.com that you can try.
The DAQ supports analog signals of +/-5 V or +/-10 V. Thanks for reminding me about the amplifier. Would I need three amplifiers for this sensor, or is one enough?
0
Stemmler
- 2
Ellertson wrote:
Yes, you'll need three separate amplifiers, one for each axis of the load cell.
What signals does your NI-DAQ system support? Is it RS485, or analog signal 4-20mA or 0-10V? You might need an amplifier to transmit the output signals from the load cell. I found this Digital Load Cell Amplifier on ATO.com that you can try.
The DAQ supports analog signals of +/-5 V or +/-10 V. Thanks for reminding me about the amplifier. Would I need three amplifiers for this sensor, or is one enough?
The DAQ supports analog signals of +/-5 V or +/-10 V. Thanks for reminding me about the amplifier. Would I need three amplifiers for this sensor, or is one enough?
Yes, you'll need three separate amplifiers, one for each axis of the load cell.
0
Ellertson
- 5
Stemmler wrote:
Got it. So, just to summarize, I need one load cell and three amplifiers, and I can connect those amplifiers to the DAQ to visualize the force values in the X, Y, and Z axes. Is that correct? And do they provide the connection cables?
Yes, you'll need three separate amplifiers, one for each axis of the load cell.
Got it. So, just to summarize, I need one load cell and three amplifiers, and I can connect those amplifiers to the DAQ to visualize the force values in the X, Y, and Z axes. Is that correct? And do they provide the connection cables?
0
ATO
- 77
Ellertson wrote:
Yes, that’s correct. The cables you need should come with the load cell.
Yes, you'll need three separate amplifiers, one for each axis of the load cell.
Got it. So, just to summarize, I need one load cell and three amplifiers, and I can connect those amplifiers to the DAQ to visualize the force values in the X, Y, and Z axes. Is that correct? And do they provide the connection cables?
Got it. So, just to summarize, I need one load cell and three amplifiers, and I can connect those amplifiers to the DAQ to visualize the force values in the X, Y, and Z axes. Is that correct? And do they provide the connection cables?
Yes, that’s correct. The cables you need should come with the load cell.
