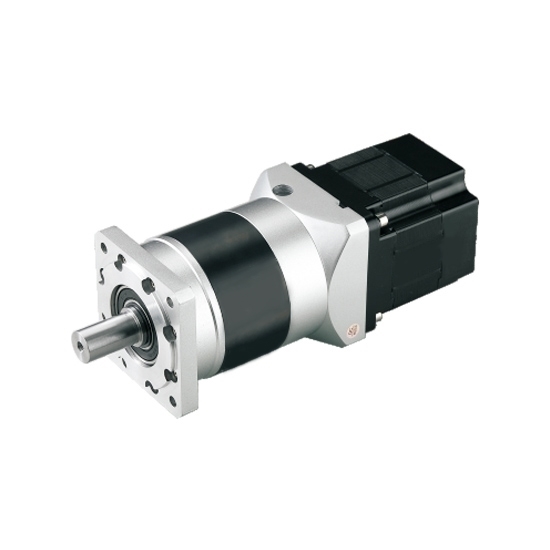

24V/36V/48V planetary gear motor for electric car, 750 watt, 3000rpm speed, comes with 86mm compact size, rated torque 2.39Nm & peak torque 7.16Nm. Three phase BLDC motor paired with a planetary gearbox is a perfect solution for motion control applications where high efficiency and high torque are required.
Features:
- 24V, 36V, 48V DC are available.
- The planetary gearbox ratio is up to 250:1.
- Power, voltage, speed, shaft, motor length and lead can be customized.
- BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
- Planetary gear motor provides high torque at low speeds.
- Easy for speed adjustment and reversible direction.
Specifications:
Motor Model |
D5BLD750-24A-30S |
D5BLD750-36A-30S |
D5BLD750-48A-30S |
Motor Type |
BLDC Motor |
Power |
750W |
Voltage |
24V DC |
36V DC |
48V DC |
Rated Current |
39.06A |
26.04A |
19.53A |
No Load Current |
<9.2A |
<8.13A |
<6.5A |
No Load Speed |
3300 rpm |
Rated Speed |
3000 rpm |
Rated Torque |
2.39 N·m |
Peak Torque |
7.16 N·m |
Motor Dimension |
86mm |
Shaft Diameter |
14mm |
Construction |
Permanent Magnet |
Direction of Rotation |
CW/CCW |
Certificate |
CCC, CE, ROSH, LVD, EMC |
Recommended drive model |
BLDC-100A |
BLDC-100A |
BLDC-100A |
Gear Head Model |
PLE060-口 Enter the gear ratio into the box (□) within the model name |
Gear Ratio |
4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250 |
What Parameters of ATO Planetary Gear Motor Can Be Customized? |
Power |
Yes |
Voltage |
Yes |
Speed |
Yes |
Shaft |
Yes |
Motor Length |
Yes |
Motor Lead |
Yes |

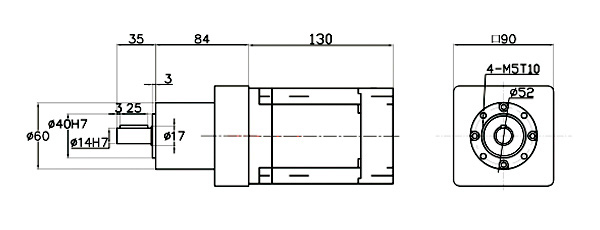

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

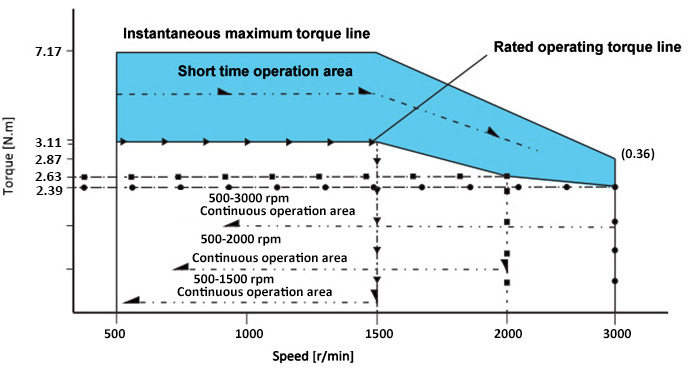

Speed-torque curve
- Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Tips: Difference between primary planetary reducer and secondary planetary reducer
The one-stage planetary reducer refers to a reducer with one set of planetary gear sets, and the two-stage planetary reducer refers to a reducer with two sets of planetary gear sets inside.
Different planetary gears number
The first-stage planetary reducer has only one set of planetary gear sets, and the second-stage planetary reducer has two sets of planetary gear sets.
Different gear ratio
First-level planetary reducer reduction ratio: 3, 4, 5, 7, 10. Two-stage planetary reducer reduction ratio: 12, 15, 20, 25, 35, 40, 50, 70, 100
Different length
Due to the increase in the number of planetary gear sets in the planetary reducer, the length of the two-stage planetary reducer is longer than that of the one-stage planetary reducer.
Different efficiency
The efficiency of the two-stage planetary reducer is lower than that of the one-stage planetary reducer.
Different transmission ratio
The transmission ratio of the two-stage planetary reducer is larger than that of the one-stage planetary reducer.
