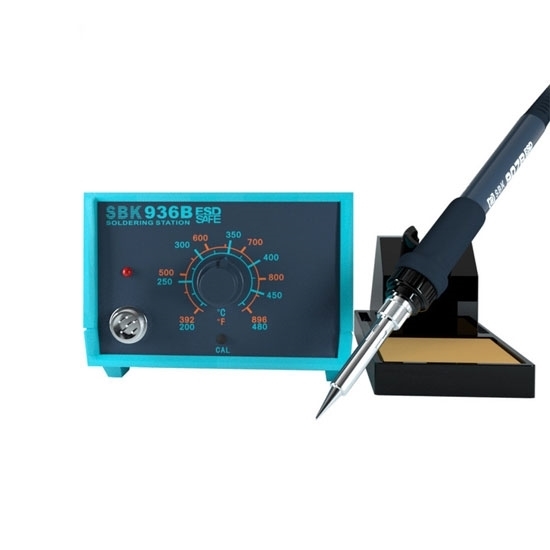

    65W Soldering Station, 110V/220V

    4.8 out of 5 based on 5 reviews | Write a review
    $186.79
    Highly efficient portable digital soldering iron with a maximum power of 65W, 220V/110V AC and 50/60Hz frequency, it is portable, mobile, anti-static, safe to use, and makes the perfect addition to any workspace.
    *
    SKU: ATO-SS-936B
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The 65W digital soldering stations are simple to use and the easy to read digital display shows the current temperature, which can be easily adjusted to the optimum temperature for your project. Whether you are a professional craftsman or a hobbyist, the digital soldering station is a must for anyone looking for accurate and reliable soldering!

    Specification:

    Model ATO-SS-936B
    AC Voltage 110V/220V
    Output Frequency 60Hz/50Hz
    Output Voltage 24V
    Max Power 65W
    Temperature Range 200~480°C
    Dimensions 170*120*93mm
    Weight 1.3kg
    Temperatur Stability ±2°C
    Tip to Ground Resistance <2Ω
    Tip to Ground Potential <2mV
    Length of Cord 1.3 m

    Soldering Station Features
    1. The soldering station rotates the temperature control, which is easy to use and the soldering iron is disassembled quickly.
    2. The handle is not only designed to withstand high temperatures, but also lasts longer and is lighter. It won't feel tired for long periods of use.
    3. The ceramic heater has stable temperature and small error.

    Tips: Use soldeing Station Notes

    • The soldering iron tip should be as close as possible to the component leads. Should not force the tip of the iron when welding, so as not to deform the tip.
    • When soldering large-area grounding or using lead-free solder components, the temperature can be adjusted to about 400-450 degrees, and the heating time can be slightly longer. After soldering such components, the temperature must be adjusted to about 300 to 400 degrees.
    • When black iron stains are found on the soldering iron tip, the dirt should be removed immediately to prevent oxidation of the soldering iron tip.
    • Once the head is dead, you can grind the tip several times in the place where the solder is much. This can reduce the area of the dead head, and the phenomenon of slowly dead will disappear.
    • When the temperature adjustment is not accurate, you can calibrate by adjusting the adjustable resistance of the small hole below the main knob.
