60W Single Phase AC Gear Motor, Speed Control

$328.63

Low RPM 60W AC motor adds mechanical gearbox to change the speed and torque of the motor for a particular application. Single phase 100V-230V rated voltage, 90-1650r/min speed control range, high velocity and energy saving. The speed and rotation direction of the motor can be adjusted using the speed controller.

Model Selection *
Gear Ratio *
With Speed Controller *

SKU: ATO-GEAR-60W

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

60W single phase adjust speed AC gear motor with easy to use speed controller adopts pure copper coil for smooth running and long service life, metal gear with good wear resistance can provide large transmission torque, widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.

Specifications

Model		ATO-5IK60R-A		ATO-5IK60R-E		ATO-5IK60R-C		ATO-5IK60R-H
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		60W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		1.0A	1.1A	0.8A	0.85A	0.5A	0.55A	0.5A	0.55A
Speed Control Range		90-1350r/min	90-1650r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	460mN.m	490mN.m	490mN.m		490mN.m		490mN.m
	90r/min	140mN.m	160mN.m	160mN.m		140mN.m		140mN.m
Starting Torque		265mN.m		265mN.m		265mN.m		265mN.m
Capacitor		20μF		12μF		4μF		4μF
Weight		Motor: 2.8kg, Gearhead: 1.35kg
Gearbox Model		5GN[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf. cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
ATO-5IK60R-A ATO-5IK60R-E ATO-5IK60R-C ATO-5IK60R-H	Gearbox 5GN[]K	50Hz	1.1	1.4	1.9	2.3	2.9	3.4	4.8	5.7	6.8	8.6	10	10	10	10	10	10	10	10	10	10	10
		50Hz	11.2	14.2	19.3	23.4	29.6	34.7	48.9	58.1	69.3	87.7	100	100	100	100	100	100	100	100	100	100	100
		60Hz	0.92	1.1	1.5	1.8	2.3	2.8	3.8	4.6	5.5	6.9	8.3	10	10	10	10	10	10	10	10	10	10
		60Hz	9.38	11.2	15.3	18.3	23.4	28.5	38.7	46.9	56.1	70.1	84.7	100	100	100	100	100	100	100	100	100	100

Gear Motor Dimension (Unit: mm)

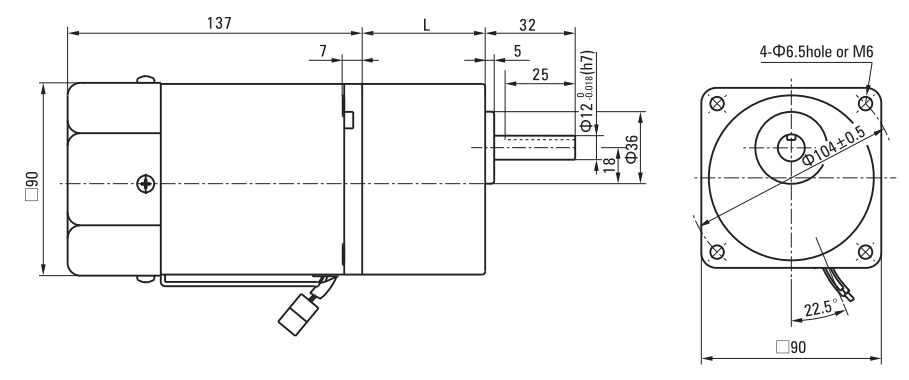

60W pinion shaft ac gear motor dimension

(Note: Gear ratio of 3~18, L=42mm; Gear ratio of 25~200, L=60mm)

Keyway Dimension of Gearhead (Unit: mm)

60W ac gear motor keyway dimension

Shaft Section Dimension of Round Shaft Type (Unit: mm)

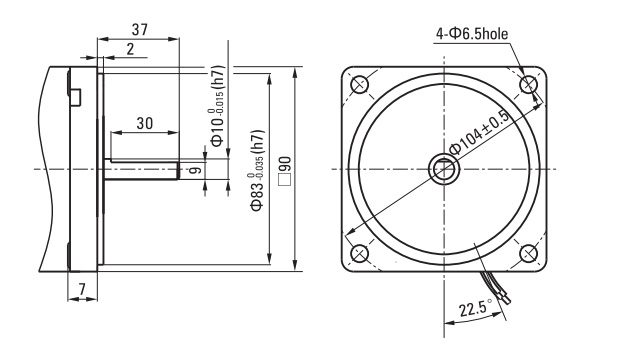

60W round shaft ac gear motor dimension

(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

AC gear motor speed controller dimension

Wiring Diagram

Details

60w Single Phase AC Gear Motor Details

Tips: What is a speed controller?

Automatic speed controller for reducing non-periodic speed fluctuations of some machines. The speed of gear motor can be maintained at or near the set value. Different from electric motors, water turbines, steam turbines, gas turbines, and internal combustion engines cannot automatically adapt to their own load changes, so when the load changes, the units driven by them will lose stability. This type of unit must be equipped with a speed controller so that it can establish an adaptive relationship between the load and the energy supply at any time as the load and other conditions change to ensure the unit's normal operation. The theory and design of speed controller is the research content of mechanical dynamics. There are many types of speed controllers. Among them, the mechanical centrifugal speed controller is widely used. Speed controllers using tachometer generators or other electronic devices as sensors have been widely used in various industrial sectors.
