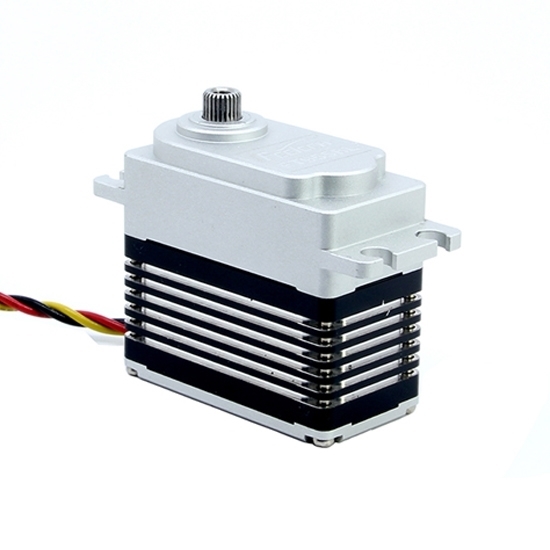

50 kg·cm (5 Nm) RC Servo Motor, 6V/ 7.4V/ 8.4V

5 out of 5 based on 1 reviews | Write a review

$238.19

Favorable price 50 kg·cm (5 Nm) radio control RC servo motor for sale, with 6V/ 7.4V/ 8.4V operating voltage. This micro remote control servo is a high-torque, precision control motor commonly used in robotics, RC cars, RC vehicles, and other automation applications requiring fine angular positioning.

Operating Voltage *

SKU: ATO-SERVO-RC50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

RC servo motor with 50 kg·cm (5 Nm) stall torque, working at 8.4V voltage, is a high torque and high precision radio control motor commonly used in robotics, automation, and remote-controlled cars.

Specification

Model	ATO-FT955BL
Electrical Specification	Operating Voltage		6V	7.4V	8.4V
	No Load Speed		0.167sec/60° (60 rpm)	0.135sec/60° (74 rpm)	0.119sec/60° (84 rpm)
	Running Current (No Load)		320mA	340mA	360mA
	Stall Torque (at Locked)		36kg·cm	45kg·cm	50kg·cm
			500.82oz. in	626.02oz. in	695.58oz. in
	Stall Current (at Locked)		5.5A	5.9A	6.4A
	Idle Current (at Stopped)		35mA	35mA	35mA
	Input Voltage		6V-8.4V
	Rated Torque		12kg·cm	15kg·cm	16.5kg·cm
	Rated Current		1800mA	1900mA	2100mA
Mechanical Specification	Size		43.722.339.8mm
	Limit Angle		No Limit
	Case Material		Aluminum
	Gear Material		Steel Gear
	Bearing Type		Ball Bearings
	Angle Sensor	Type	12 Bits Magnetic Coding
		Angle	360 °
		Life	No Limited
	Connector & Cable	Type	JR
		Material	Teflon
		Length	35cm
		Pin Definition	1: Signal; 2: Vcc; 3: GND
	Weight		95.1g ±1g
	Horn Type		25T/ 5.9mm
	Gear Ratio		1/451
	Back Lash		≤0.5°
	Rocker Phantom		0°
	Rocker Screw		M3*6
	Motor		Brushless Motor
	Storage Temperature Range		-30℃ ~ 80℃
	Operating Temperature Range		-20℃ ~ 60℃
	Temperature Range		25℃ ± 5 ℃
	Humidity Range		65% ± 10%
	Certificate		EMC, ROHS
Control Specification	Command Signal		Pulse Width Modification (PWM)
	Control System Type		Digital Comparator
	Operating Travel		180° ±5° (at 500 to 2500 μsec)
	Left & Right Travelling Angle deviation		≤5°
	Centering Deviation		≤1°
	Neutral Position		1500 μsec
	Dead Band Width		≤4 μsec
	Rotating Direction		Counterclockwise (at 1500 to 2000 μsec)
	Pulse Width Range		500 to 2500 μsec
	Electronic Protection		No
Reliability Testing	Life Test		＞200000 Times
	Motor Noises		45 ± 5dB
	Servo Noises		60 ± 5dB
	Waterproof Performance		IP66

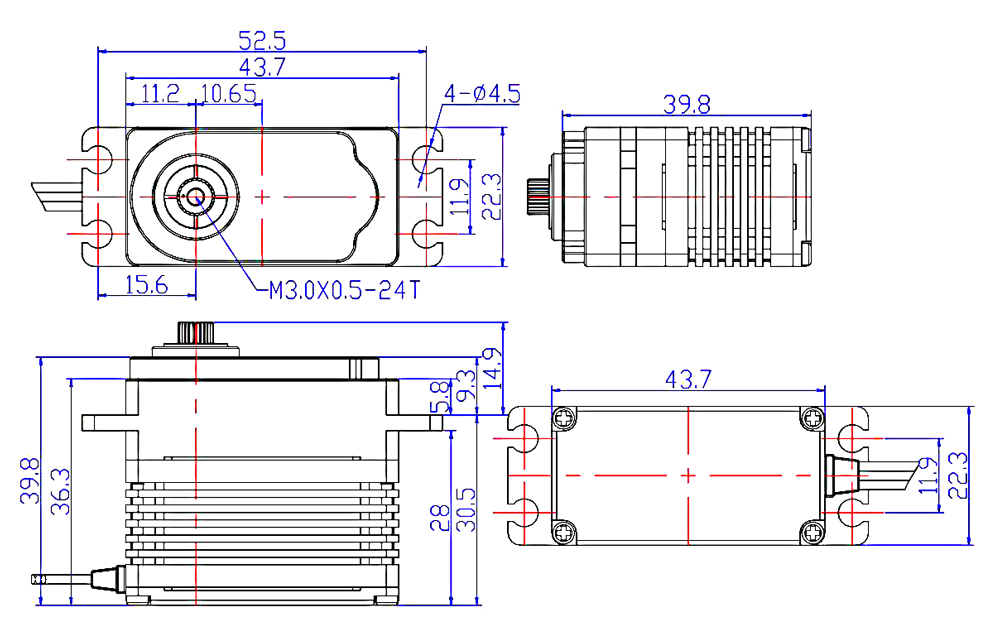

Dimensions (Unit: mm)

Tips: RC servo motor applications

RC servo motors are widely used in applications requiring precise control of angular position. Their primary advantage lies in their ability to rotate to a specific position and hold it there, making them ideal for tasks that demand accuracy and reliability.

Common applications include:

Robotics: Radio control servo motors are essential in robotic arms, legs, and grippers, where fine movement and precision are critical.
RC Vehicles: In remote-controlled cars, planes, and boats, servos control steering, throttle, and other movable parts.
Automated Systems: Servo motors are used in automation for controlling gates, shutters, or other mechanical systems that require positional accuracy.
Cameras and Drones: In-camera gimbals and drone, remote control servos enable smooth and precise adjustments for stabilization.
Modeling and Simulation: Hobbyists use servos for models like airplanes or moving structures, where they provide controlled movement.
