    50 W DC Worm Gear Motor, 12V/24V

    4.5 out of 5 based on 2 reviews | Write a review
    $459.36
    Low noise 50 W DC worm gear motor for electric car, renewable energy systems and industrial equipment, works with 2000 rpm high speed and 0.16N·m rated torque, selectable 12V, 24V or 36V power supply, gear ratio from 7.5:1 to 60:1.
    *
    *
    SKU: ATO-GEAR-W50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    50 W 3 phase BLDC motor is equipped with worm gearbox providing high torque and high efficiency at 12V, 24V or 36V power supply. Its power, voltage, speed, shaft, motor length and lead can be customized.

    Specification

    Motor Model ATOD2BLD50-12GN ATOD2BLD50-24GN ATOD2BLD50-36GN
    Motor Type BLDC Motor
    Power 50W
    Voltage 12V DC 24V DC 36V DC
    Rated Current 5.21A 2.60A 1.74A
    No Load Current <0.8A <0.4A <0.3A
    No Load Speed 2800 rpm
    Rated Speed 2000 rpm
    Rated Torque 0.16N·m
    Peak Torque 0.48N·m
    Motor Dimension 57mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 30, 40, 50, 60
    Recommended Drive Model ATO-BLD750 ATO-BLD300B ATO-BLD120A
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 30 40 50 60
    Rated Output Speed (rpm) 267 200 133 100 67 50 40 33
    Rated Output Torque (Nm) 1.4 1.9 2.9 3.7 5.3 6.7 7.8 9.3

    Note:

    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

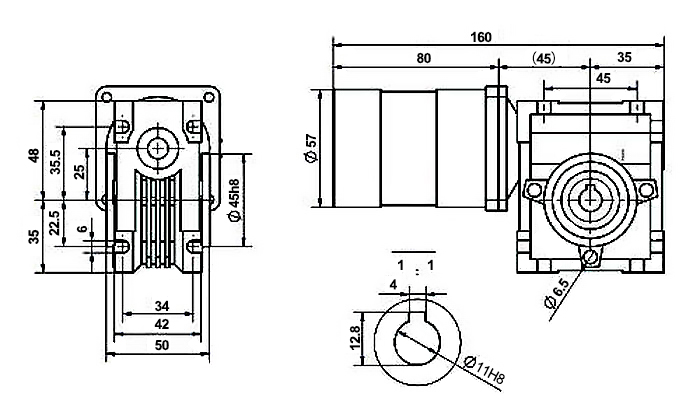

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 50W 12V/ 24V DC Worm Gear Motor

    Speed-Torque Curve

    50 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.

    Details

    100W DC Worm Gear Motor Details

    Tips: Advantages of DC worm gear motor

    • DC worm gear motor has compact mechanical structure, light volume, small and efficient.
    • Good heat exchange performance, fast heat dissipation.
    • Simple installation, flexible and light, superior performance, easy maintenance.
    • Large driving speed ratio, large torque, high overload capacity.
    • Smooth operation, low noise, durable.
    • Strong applicability, safety and reliability.
    • Long service life, allowing input speed range is very low, deceleration range is large.
    • It is with self-locking function suitable for lifting operations.
    Existing reviews of 50 W DC Worm Gear Motor, 12V/24V
    Strong worm gear motor
    My wife often and I complain if too much laundry at once home washing machine will stop working, I discussed with my good brother decided to change a more powerful worm gear engine, the replacement process is more complicated, but after the installation of the trial, the power to be much stronger, fast speed, noise in the acceptable range, the stability of the surprisingly good, it is not very recommended for newcomers to replace their own, always, good value for money.
    From: Angelinaa | Date: 28/04/2024
    Was this review helpful? Yes No (0/0)
    Is your gearmotor CE certified?
    Is your gearmotor CE certified?
    From: Ahmede | Date: 27/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Only the motor is CE certified.
