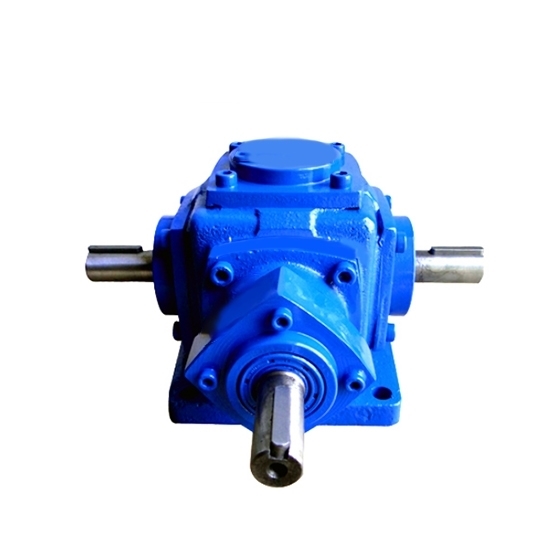

45 hp 1450 rpm Spiral Bevel Right Angle Gearbox, 1:1~5:1

5 out of 5 based on 1 reviews | Write a review

$1,319.69

Ideal manufacturer right angle gearbox with spiral bevel drives. Optional gear ratios from 1:1 to 5:1, input horsepower 0.02~45 hp, speed 10~1450 rpm, torque 69~361 N.m, 1/2/3/4 ways shafts, optional directions. Compact right angle reducer gearbox, 90°steering and reduction.

Gear Ratio *
Speed *
Shaft Direction Code *

SKU: ATO-RAGB-451450

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Gearbox Dimensions

Economic price spiral bevel right angle gearboxes for sale. Gear ratio 1:1 to 5:1 for selection, speed 10~1450 rpm, maximum input power 45 hp, 1/2/3/4 ways output shafts， various directions configurations. Right angle gearbox reducers are used in 90-degree steering and reduction. If you select a higher rpm, you will get a lower torque.

Features

The right angle gearbox uses spiral bevel gears inside. Gears are installed vertically to change the transmission direction at 90°.
Spiral bevel gear is made of alloy steel, which has been carburized and hardened, and has high rigidity and wear resistance.
The spiral bevel right angle gear box can change the transmission direction and steering in all directions, which can be used in any mechanical structure and application.
Compared with the traditional worm gear reducer, the spiral bevel right angle gearbox can provide smoother running ability and larger transmission torque.

Basic Specification

Model	ATO-RN-8M
Gear Ratio	1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1
Max. Horsepower	45 hp
Max. Speed	1450 rpm
Transmission Efficiency	95%
Gear Oil	HD320~680
Ambient Temperature	-20℃ ~ +80℃
Noise	＜ 80dB
Weight	41 kg

Transmission Specification

Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
1:1	1450	294	45
	1150	305	37.5
	870	312	29.0
	580	319	19.8
	400	326	14.0
	300	331	10.6
	200	338	7.2
	100	346	3.70
	10	361	0.386
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
1.5:1	1450	185	19.1
	1150	188	15.4
	870	191	11.8
	580	197	8.14
	400	200	5.70
	300	203	4.34
	200	204.0	2.91
	100	210	1.49
	10	218	0.155
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
2:1	1450	180	14.0
	1150	183	11.3
	870	187	8.70
	580	191	5.92
	400	194	4.15
	300	196	3.14
	200	198	2.12
	100	202	1.08
	10	209	0.112
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
2.5:1	1450	184	11.4
	1150	185	9.11
	870	188	7.00
	580	192	4.76
	400	195	3.34
	300	197	2.53
	200	200	1.71
	100	203	0.867
	10	208	0.089
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
3:1	1450	159	8.20
	1150	160	6.55
	870	163	5.04
	580	166	3.42
	400	168	2.39
	300	169	1.80
	200	171	1.22
	100	173	0.618
	10	179	0.064
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
4:1	1450	124	4.80
	1150	125	3.83
	870	127	2.95
	580	129	2.00
	400	131	1.40
	300	131	1.05
	200	134	0.71
	100	135	0.36
	10	140	0.04
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
5:1	1450	68.7	2.13
	1150	69.2	1.70
	870	70.4	1.31
	580	71.7	0.89
	400	72.6	0.62
	300	72.9	0.47
	200	74.1	0.32
	100	75.1	0.16
	10	77.8	0.02

Spiral Bevel Right Angle Gearbox Shafts Directions

Direction Code	Definition
I	Input shaft
L	Left output haft
R	Right output shaft
LR	Left and right output shaft
O	Opposite direction
D	Downward: input shaft is below the base
U	Upward: input shaft is above the base

Tips: How to store 45 hp spiral bevel right angle gearbox for a long time?

When the 45 hp spiral bevel right angle gearbox is stored, prior to initial installation, or following removal from service, the following steps are recommended:

Fill the 45 hp spiral bevel right angle gearbox completely with oil. Attach a prominent notice that the gear drive must be drained and refilled to the proper level prior to start-up.
Apply a rust preventive to the externally exposed shafts.
Store the 45 hp spiral bevel right angle gearbox in a temperature and humidity controlled area.
Periodically, rotate the shafts by hand. If the gear drive is in service but inactive for 60 days or more, periodically rotate the shafts by hand and check the oil level prior to start-up.

45 hp 1450 rpm Spiral Bevel Right Angle Gearbox Dimensions (Unit: mm)

A	B	C	D	E	F	G	X * Y	S	H	U	J	K	I
425.5	117.5	308	230	78	75	55	10*5	40	19	20	152	190	419
R	O	P	Q	L	M	N	W	V	T	Z	A1	A2	A3
260	221	106	115	195	235	20	14	4	81	15	423	414	193
