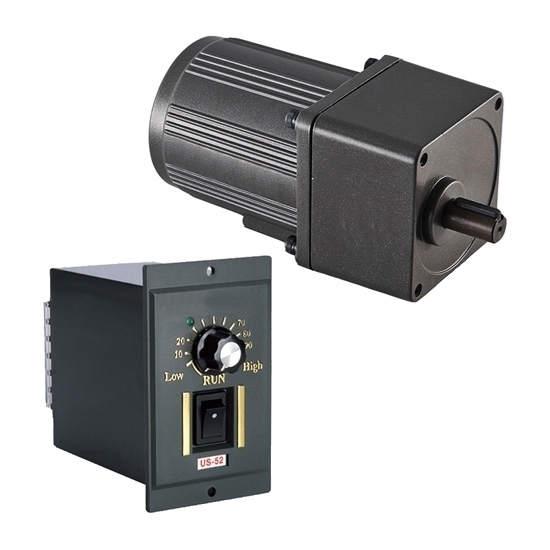

    40W Single Phase AC Gear Motor, Speed Control

    40W Single Phase AC Gear Motor, Speed Control

    5 out of 5 based on 1 reviews | Write a review
    $305.79
    High torque single phase AC gear motor is 40W output power, combined with an easy to use speed controller, speed control range from 90-1650r/min, supporting clockwise and counterclockwise rotation, high velocity and energy saving.
    *
    *
    *
    SKU: ATO-GEAR-5IK40W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    40W speed control 1-phase AC gear motor for sales, which has an extremely high torque and is speed adjustable with a speed controller, compact and cost effective, widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.

    Specifications

    Model ATO-5IK40R-A ATO-5IK40R-E ATO-5IK40R-C ATO-5IK40R-H
    Shaft Type Pinion shaft or Round shaft (Optional)
    Output Power 40W
    Phase Single Phase
    Voltage 100V 110V 120V 220V 230V 220V 230V
    Frequency 50Hz 60Hz 60Hz 50Hz 60Hz
    Current 0.65A 0.70A 0.55A 0.60A 0.35A 0.40A 0.35A 0.40A
    Speed Control Range 90-1350r/min 90-1650r/min 90-1650r/min 90-1350r/min 90-1650r/min
    Allowance Torque 1200r/min 260 mN.m 260mN.m 300mN.m 230mN.m
    90r/min 70mN.m 60mN.m 75mN.m 70mN.m
    Starting Torque 180mN.m 180mN.m 160mN.m 145mN.m
    Capacitor 12μF 8μF 2.5μF 2.5μF
    Weight Motor: 2.5kg, Gearhead: 1.35kg
    Gearbox Model 5GN[]K
    Gear Ratio 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200
    Enter the gear ratio into the box ([]) within the model name

    Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)

    Model Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
    Speed r/min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
    60Hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
    ATO-5IK40R-A
    ATO-5IK40R-E
    ATO-5IK40R-C
    ATO-5IK40R-H    		 Gearbox
    5GN[]K    		 50Hz 0.77 0.92 1.3 1.5 1.9 2.3 3.2 3.8 4.6 5.7 6.9 8.3 10 10 10 10 10 10 10 10 10
    7.85 9.38 13.2 15.3 19.4 23.4 32.6 38.7 46.9 58.1 70.4 84.7 100 100 100 100 100 100 100 100 100
    60Hz 0.63 0.76 1.1 1.3 1.6 1.9 2.6 3.2 3.8 4.7 5.7 6.8 8.6 10 10 10 10 10 10 10 10
    6.42 7.75 11.2 13.2 16.3 19.3 26.5 32.6 38.7 47.9 58.1 69.3 87.7 100 100 100 100 100 100 100 100

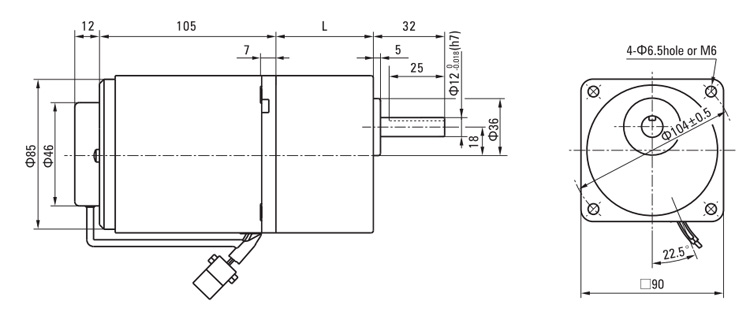

    Pinion Shaft Gear Motor Dimension (Unit: mm)

    40W AC gear motor dimension

    (Note: Gear ratio of 3~18, L=42mm; Gear ratio of 25~200, L=60mm)

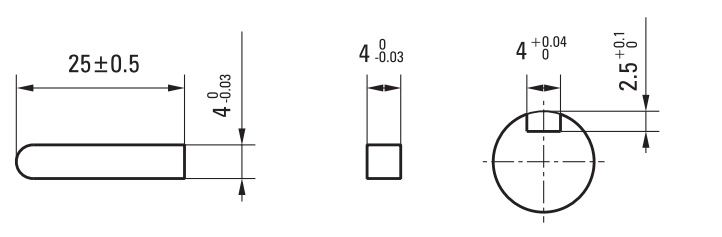

    Keyway Dimension of Gearhead (Unit: mm)

    40W ac gear motor keyway dimension

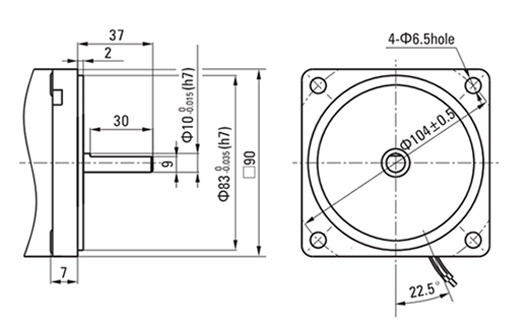

    Shaft Section Dimension of Round Shaft Type (Unit: mm)

    40w round shaft ac gear motor size

    (Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)

    Speed Controller Dimension (Unit: mm)

    AC gear motor speed controller dimension

    Wiring Diagram

    AC gear motor wiring diagram

    Details

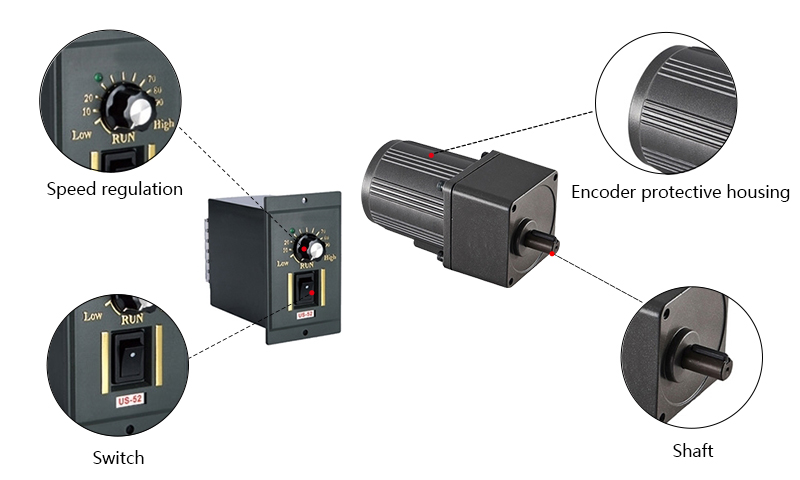

    40W Single Phase AC Gear Motor Details

    Tips: What is voltage regulation and speed regulation of speed control motor?

    When the stator voltage of the motor is changed, a set of different mechanical characteristic curves can be obtained, thereby obtaining different speeds. Because the torque of the motor is proportional to the square of the voltage, the larger the torque is, the lower the speed range is, which makes it difficult to apply the general cage motor. In order to expand the speed regulation range, a cage motor with a large rotor resistance value should be used for the voltage regulation and speed regulation, such as a torque motor dedicated to voltage regulation and speed regulation, or a frequency-sensitive resistor connected in series with a wound motor.

    In order to expand the stable running range, when speed is adjusted above 2: 1, feedback control should be adopted to achieve the purpose of automatic speed adjustment. The main device for voltage and speed regulation is a power supply that can provide voltage changes. Commonly used voltage regulation methods include series saturation reactors, autotransformers, and thyristor voltage regulation. The thyristor voltage adjustment method is preferred. Characteristics of voltage and speed regulation:

    1. The voltage and speed regulating circuit is simple and easy to realize automatic control.
    2. During the voltage adjustment process, the slip power is consumed in the rotor resistance in the form of heat generation, and the efficiency is low.
    3. Voltage and speed are generally applicable to production machinery below 100KW.
