3 Axis Load Cell, 5kg/10kg/20kg/30kg to 100kg

4 out of 5 based on 1 reviews | Write a review

$907.33

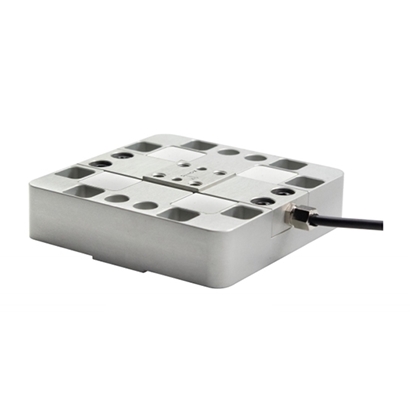

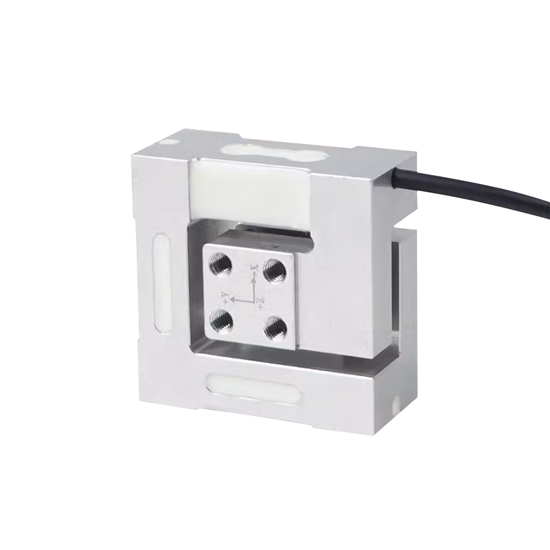

High performance 3-axis load cell sensor, multi axis load cell to measure force in X, Y and Z axes. Suitable for different load ranges from 5kg, 10kg, 20kg, 30kg to 100kg, small size for easy installation, accurate and reliable multi-dimensional force test to ensure accurate force measurement.

Capacity *
Display Controller *

SKU: ATO-LC-MA3A

Qty:

30-day Returns

Free Shipping

Delivery date: 7-10 days

Overview

A 3-axis load cell sensor that measures the component of force in the X, Y and Z axes. Multiple capacity options are available, including 5kg, 10kg, 20kg, 30kg to 100kg, suitable for a wide range of applications. High precision load cell with high stability can be widely used in industrial production, laboratory research and other fields to meet the needs of accurate force measurement in different scenarios.

Specification

Model	ATO-DYDW-004
Rated Capacity	5kg/10kg/20kg/30kg/50kg/100kg (optional)
Matched Display Controller	ATO-DDC5-CHB
Output Sensitivity	1.0-1.5mV/V
Zero Output	±2%F.S.
Non-linearity	0.3%F.S.
Hysteresis	1.0%F.S.
Repeatability	0.05%F.S.
Creep	0.05% F.S./30min
Temperature Sensitivity Drift	0.5%F.S./10℃
Zero Temperature Drift	0.05%F.S./10℃
Response Frequency	10kHz
Material	Alloy steel
Impedance	350Ω
Insulation Resistance	≥5000MQ/100V DC
Operating Voltage	5-15V
Operating Temperature Range	-20～80℃
Safety Overload	120%
Limit Overload	150%
Cable Wire Specification	φ3*2m
Ultimate Cable Pull	98N
TEDS	optional extras
Wiring Definition	Red～power supply +, Black～power supply -
	X: Green～Signal +, White～Signal -
	Y: Yellow～signal+, Brown～signal-
	Z: Blue～Signal +, Gray～Signal -

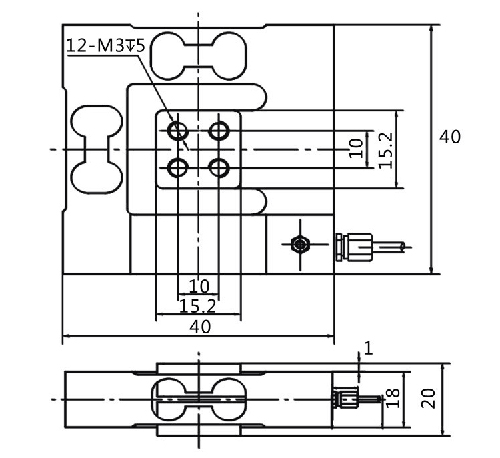

Dimension (unit: mm):

Force Direction Range
X	5kg	10kg	20kg	30kg	50kg	100kg
Y	5kg	10kg	20kg	30kg	50kg	100kg
Z	5kg	10kg	20kg	30kg	50kg	100kg

Feature

Highly stable and can be installed in tight spaces.
Miniature tensile pressure sensor, high precision processing elastomer.
Non-standard customization, anti-interference signal stability, high quality aluminum alloy.
Widely used in automotive press fitting, automation assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing field.

Application

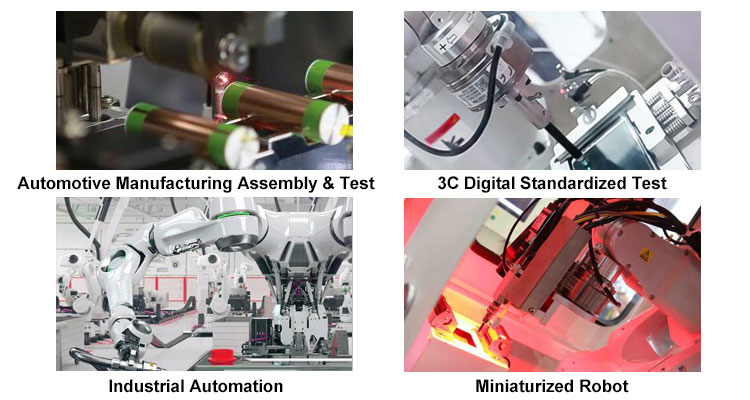

3 axis load cell for 5 to 100kg applications

Tips: How to Use 3-Axis Load Cell?

Connect the Power Supply: Connect the load cell sensor to a suitable power supply, making sure that the voltage and current meet the specifications.
Connect the Signal Cable: Connect the output signal cable of the 3-axis load cell to the reading device (e.g. data acquisition card or microcontroller).
Calibration: Perform the calibration of the load cell to ensure accuracy and precision before proceeding with the measurement.
Reading and Analysis: Activate the reading device, monitor and record the data output from the load cell weight sensor and analyze and process it as necessary.

Please note that the exact procedure may vary depending on the load cell model and manufacturer, it is recommended to refer to the relevant user manual or technical specifications.
