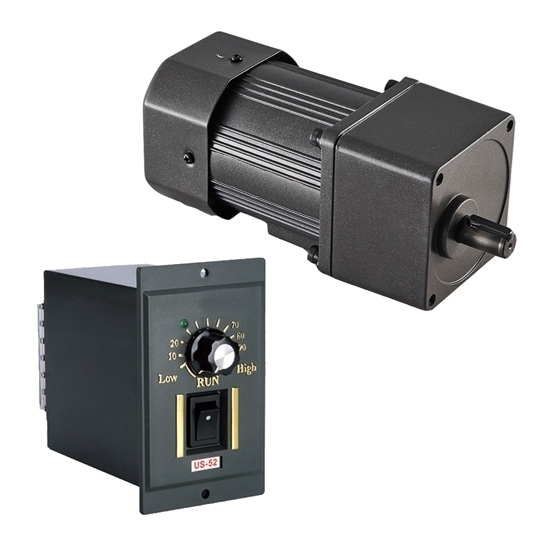

High torque single phase 200W AC gear motor with speed controller, rated voltage 220-230V, motor rotation direction: CW or CCW, support reversed. The direction of rotation of the motor can be controlled by the speed controller.
Specifications
Model |
ATO-6IK200R-CF |
ATO-6IK200R-HF |
Shaft Type |
Pinion shaft or Round shaft (Optional) |
Output Power |
200W |
Phase |
Single phase |
Voltage |
220V |
230V |
220V |
230V |
Frequency |
50Hz |
60Hz |
Current |
1.40A |
1.40A |
Speed Control Range |
90-1350r/min |
90-1650r/min |
Allowance Torque |
1200r/min |
920mN.m |
920mN.m |
90r/min |
500mN.m |
500mN.m |
Starting Torque |
1000mN.m |
1000mN.m |
Capacitor |
10μF |
10μF |
Weight |
Motor: 5.1kg, Gearhead: 2.1kg |
Gearbox Model |
6GU[]K |
Gear Ratio |
3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name |
Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)
Model |
Gear Ratio |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
Speed r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
144 |
120 |
100 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
ATO-6IK200R-CF ATO-6IK200R-HF |
Gearbox 6GU[]K |
50Hz |
3.71 |
4.46 |
6.19 |
7.43 |
9.28 |
11.1 |
13.9 |
16.7 |
20.1 |
25.2 |
30.3 |
36.3 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
37.9 |
45.5 |
63.1 |
75.8 |
94.7 |
114 |
142 |
171 |
205 |
257 |
309 |
370 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
60Hz |
2.99 |
3.59 |
4.99 |
5.99 |
7.49 |
8.89 |
11.2 |
13.5 |
16.2 |
20.3 |
24.4 |
29.3 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
30.6 |
36.7 |
50.9 |
61.1 |
76.4 |
91.7 |
115 |
138 |
165 |
207 |
249 |
299 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
Gear Motor Dimension (Unit: mm)
(Note: L1=72mm)
Keyway Dimension of Gearhead (Unit: mm)
Shaft Section Dimension of Round Shaft Type (Unit: mm)
(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)
Speed Controller Dimension (Unit: mm)
Wiring Diagram
Details
Tips: The speed controller must meet the stability conditions
When the speed of the unit deviates from the set value, the speed controller can respond accordingly, and at the same time, it must have a regular restoring force to restore the speed controller to its original state. The spring in the centrifugal speed controller is the part that generates the restoring force. Such a speed controller is called a static stable speed controller. However, a static stable speed controller may also have dynamic instability during the adjustment process. When the adjustment action is excessive and reverse adjustment occurs, the actual adjustment action will form an oscillating process. The speed controller that makes the oscillation quickly decay is called a dynamic stable speed controller, otherwise it is a dynamically unstable speed controller, which cannot guarantee the normal operation of the machine.
