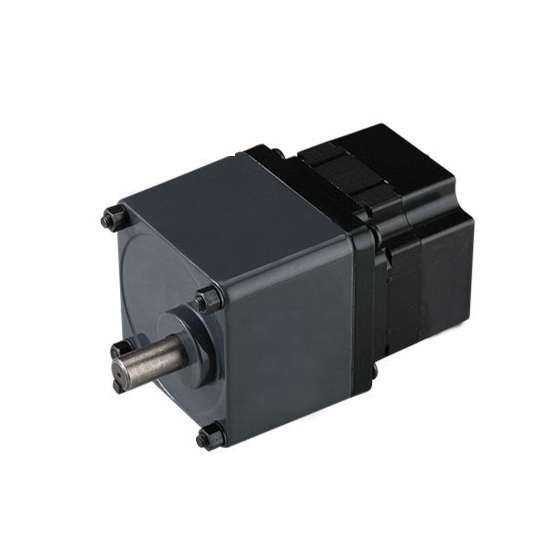

    150 W DC Gear Motor, 3000 rpm, 12V/24V/48V

    5 out of 5 based on 2 reviews | Write a review
    $215.36
    This 150W DC gear motor has 3000 rpm rated speed at DC 12 volt, 24 volt, 48 volt, brushless design of the DC motor provides high performance and long life. It with gear ratio ranging from 3:1 to 200:1, no-load speed is 3300 rpm and peak torque up to 1.43 Nm.
    *
    *
    *
    *
    *
    *
    SKU: ATO-BLDC-150
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Best quality DC brushless motor with gear head, 150W rated power and 3000 rpm speed, rated torque is 0.48 Nm, designed to operate with 12V, 24V, 48V. This affordable DC gear motor is generaly used in various industrial applications like food packing machine, robotics medical, instruments etc..

    150W DC gear motor specifications

    Model ATO-D5BLD150-12 ATO-D5BLD150-24 ATO-D5BLD150-48
    Power 150W 150W 150W
    Voltage 12V 24V 48V
    Rated Speed 3000 rpm 3000 rpm 3000 rpm
    No-load Speed 3300 rpm 3300 rpm 3300 rpm
    Rated Current 15.63A 7.81A 3.91A
    Rated Torque 0.48 N.m 0.48 N.m 0.48 N.m
    Peak Torque 1.43 N.m 1.43 N.m 1.43 N.m
    No-load Current < 5.2A < 3.13A < 1.61A
    Compatible Driver Model BLD-30A BLD-300B (Click it to the product page)
    Weight 3 Kg
    Protection Grade IP54
    Motor Lead Length 300mm
    Temperature 0~50℃
    Gearbox Model 5GN□K, Enter the gear ratio into the box (□) within the model name
    Gear Ratio 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

    Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

    The allowable torque with a gearbox

    Gear Ratio 3 5 7.5 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
    Speed (r/min) 1000 600 400 300 240 200 167 150 120 100 83.33 75 60 50 40 33 30 25 20 17 15
    Allowable Torque (N.m) 1.16 1.93 2.9 3.87 4.36 5.23 6.27 6.3 7.88 9.46 11.35 12.61 15.76 18.91 20 20 20 20 20 20 20
    Allowable Torque (kgf.cm) 11.6 19.34 29.01 38.68 43.57 52.29 62.74 63.03 78.79 94.55 113.5 126.1 157.6 189.1 200 200 200 200 200 200 200

    Note:

    • The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
    • When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

    Wiring Definition

    150W DC motor wiring explanation

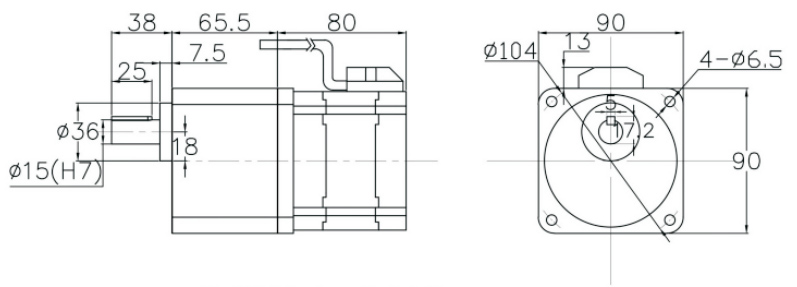

    Dimension (Unit: mm)

    150W gear motor dimension

    *Mounting screws are included with gearbox

    Details

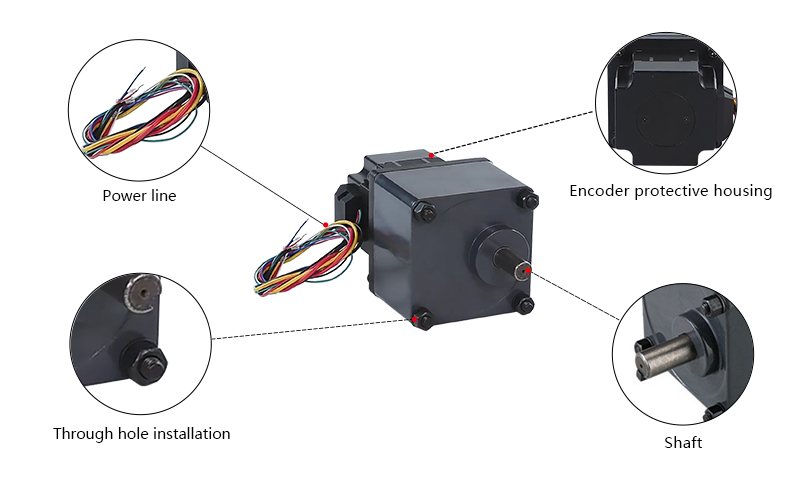

    150W DC Gear Motors Details

    Tips: How long should the gear motor replace the engine oil?

    The gear motor shall replace the engine oil for the first time after operating 200~300 hours, the oil quality shall be regularly inspected in following use. If any impurity or deteriorated oil is mixed in, the engine oil shall be replaced. Generally, the gear motor that continuously works for long term shall replace its engine oil every 5000 hours or every year, the gear motor that has stopped for a long term shall replace its engine oil before starting again.

    When replacing the engine oil, we shall note that the same oil shall be added into the gear motor, it’s not allowed to mix the oil in different brands, however, the oil in same brand but different viscosity is allowed. When replacing the engine oil, the gear motor shall be cooled down till there's no burning danger, however, the gear motor shall be warm because the oil viscosity increases in fully cool, oil discharge will be difficult.
