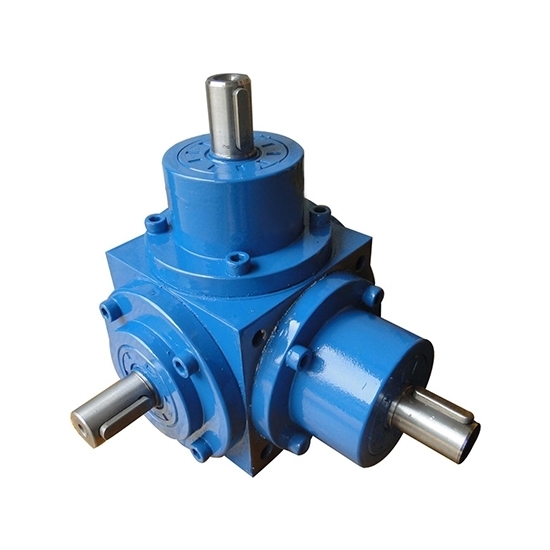

100 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

5 out of 5 based on 1 reviews | Write a review

$1,949.69

Buy spiral bevel right angle gearbox at affordable price. Gear ratio 1 to 1 or 2 to 1 for choose, max input power 100 hp, speed 50~1500 rpm, high torque 224.8~787.82 N.m, optional input/output shafts directions, 1/2/3/4 ways. Compact 90 degree reducer gearbox, 95% high efficiency, small size.

Gear Ratio *
Speed *
Installation Method *
Shaft Direction Code *

SKU: ATO-RAGB-1001500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Gearbox Dimensions

Professional manufacturer right angle gearbox for sale, spiral bevel gear drives. Optional ratio 1:1 or 2:1, speed 50~1500 rpm, input horsepower 2.76~100 hp, 1/2/3/4 ways shafts, flexible shaft direction. Right angle gearbox reducer has small size and compact structure, for 90° steering and reduction for machinery.

Features

Spiral bevel gears, bearings, gear box, input shaft, output shaft and other components consist the right angle gearbox.
The spiral bevel right angle gearbox is also a steering gear box, which 90° changes the transmission direction. Small mounting size, high torque, high speed.
Spiral bevel gears are made of alloy steel, which is hardened by carburizing, and has high rigidity and wear resistance. The bearing is a tapered roller bearing, which can withstand greater torque.
The gear box material is cast iron. The input shaft and output shaft are made of #45 steel, which has been carburized and heat treated.
Spiral bevel 90 degree gearbox are used in textile industry, food processing machinery, conveying machinery, packaging machinery, automation machinery, etc.

Basic Specification

Model	ATO-RNV-200
Gear Ratio	1:1, 2:1
Max. Horsepower	100 hp
Max. Speed	1500 rpm
Transmission Efficiency	95%
Gear Oil	HD320~680
Ambient Temperature	-20℃ ~ +80℃
Noise	＜ 80dB
Weight	61 kg

Transmission Specification

Input Speed 1500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	99.2	476
2:1	46.8	224.8
Input Speed 1000 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	74.9	536.43
2:1	36.7	262.85
Input Speed 750 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	61	582.51
2:1	29.7	283.62
Input Speed 500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	45.5	651.74
2:1	22.4	320.86
Input Speed 250 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	26	744.85
2:1	12.5	358.1
Input Speed 50 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	5.5	787.82
2:1	2.76	395.34

Spiral Bevel Right Angle Gearbox Installation Methods

RNV series Spiral Bevel Right Angle Gearbox installation methods

Spiral Bevel Right Angle Gearbox Shafts Directions

Direction Code	Definition
I-LR	1 input shaft + 1 left output shaft + 1 right output shaft
I-R	1 input shaft + 1 right output shaft
I-L	1 input shaft + 1 left output shaft
I-LR-O	1 input shaft + 1 left output shaft + 1 right output shaft, opposite direction
I-R-O	1 input shaft + 1 right output shaft, opposite direction
I-L-O	1 input shaft + 1 left output shaft, opposite direction
I-I-LR	2 input shafts + 1 left output shaft + 1 right output shaft
I-I-R	2 input shafts + 1 right output shaft
I-I-L	2 input shafts + 1 left output shaft
I-I-LR-O	2 input shafts + 1 left output shaft + 1 right output shaft, opposite direction
I-I-R-O	2 input shafts + 1 right output shaft, opposite direction
I-I-L-O	2 input shafts + 1 left output shaft, opposite direction

Tips: Precautions for using 100 hp spiral bevel right angle gearbox.

When installing external rotating parts, couplers or shaft extensions on the 100 hp spiral bevel right angle gearbox, protective covers are required. Users must wear goggles and protective clothing during operation.
The initial operation should be carried out under no-load conditions. Before starting the 100 hp spiral bevel right angle gearbox, please check the following:
Check the tightness of mounting bolts.
Check whether the oil level of 100 hp spiral bevel right angle gearbox is proper.
Make sure that there are no debris on the rotating parts.
Rotate the shafts by hand. If they cannot rotate freely, check whether the installation is uneven, whether the coupling is misaligned or whether the belt tension is excessive.
If all the above tests are passed and all safety devices are in place, you can start running the 100 hp spiral bevel right angle gearbox.

100 hp 1500 rpm Spiral Bevel Right Angle Gearbox Dimensions (Unit: mm)

A	B	C	D	P	E	F	G	H	X * Y	φ S	φ I
373	217	74	200	120	82	80	12*10	100	12*6	42	120
J	Q	L	M	K	N	O	V	R	T	U	W
200	100	160	200	M12	406	86	234	120	406	234	546
