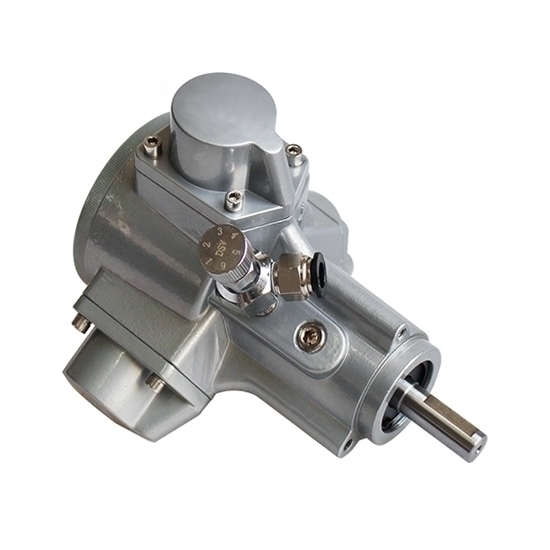

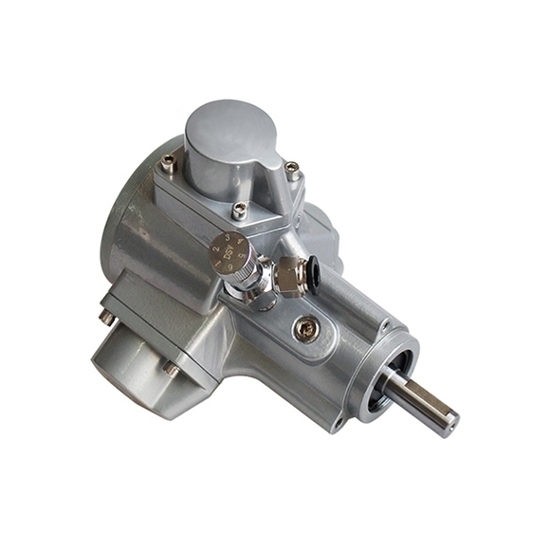

1.5 hp Piston Air Motor, 360 rpm, 985 L/min

Write a review

$2,214.29

Cost-effective piston air motor with rated power 1.5 hp, air consumption 985 L/min, rated speed 360 rpm, max. no-load speed 560 rpm, rated torque 44.7 Nm, three installation types can be chosen. Pneumatic piston motor is mainly used in mining machinery, and it also can be used as drive motors for conveyor belts, etc.

Installation *
Parameter Shaft *

SKU: ATO-DAM7

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

1.5 hp piston air motor with gear ratio 1:1, starting torque 44.7 Nm, stopping torque 54.1 Nm. The piston type air motor has the advantages of simple structure, small size, light weight, large horsepower, easy operation and long service life.

Specification

Model	ATO-DAM7
Power	1.5 hp
Gear ratio	1:1
Rated speed	360 rpm
Rated torque	28 Nm
Max. no-load speed	560 rpm
Air consumption	985 L/min
Starting torque	44.7 Nm
Stopping torque	54.1 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

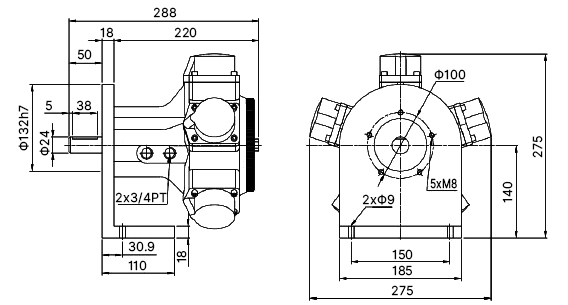

Dimension

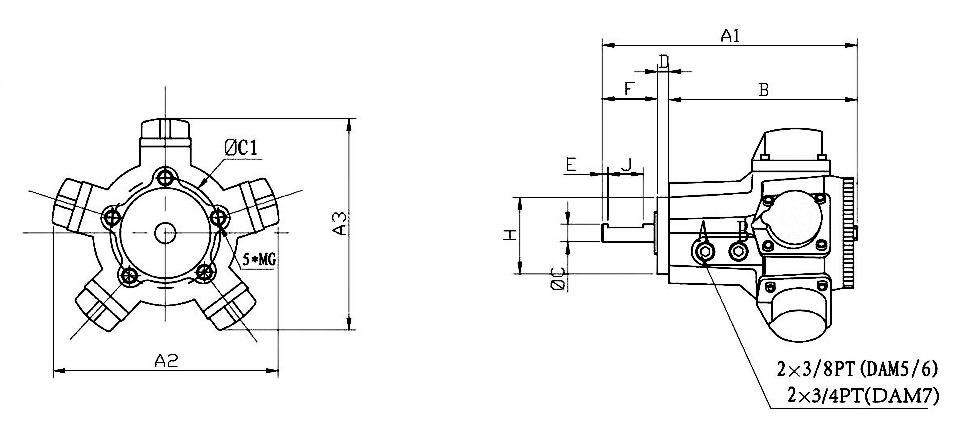

Basic type

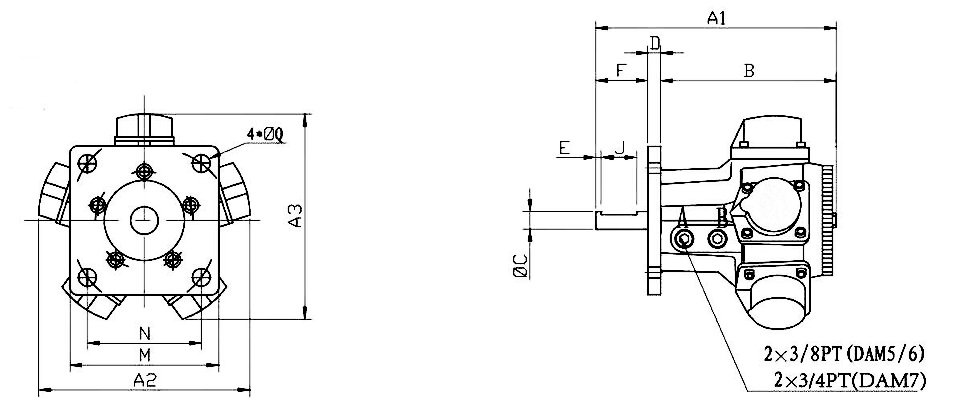

Flange type

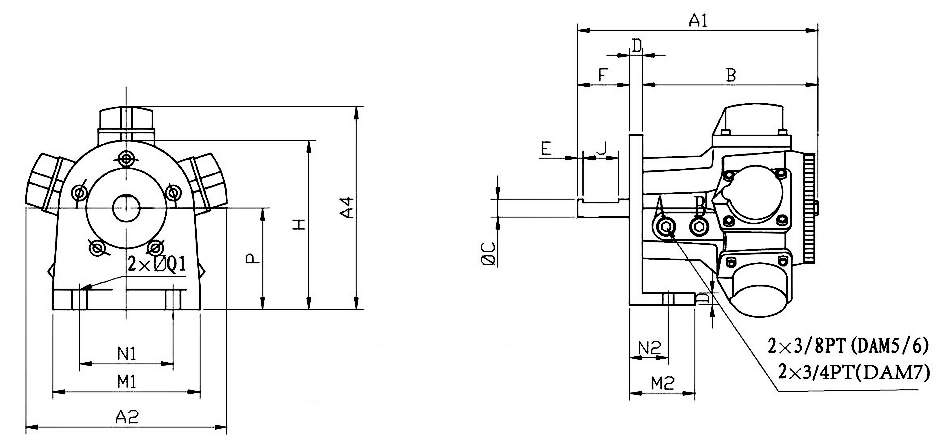

Foot type

Model

Dimension (mm)

ATO-DAM7

288

275

260

275

220

24/19

100

80h7

200

165

185

150

110

30.9

140

Details

Tips: Faults and troubleshooting methods of Piston Air Motor.

Increased air consumption.
1. Reason analysis.
(1) The cylinder, piston ring, and valve sleeve are worn.
(2) Air leakage in the piping system.
2. Elimination method.
(1) Replace parts.
(2) Check and repair the gas circuit.
