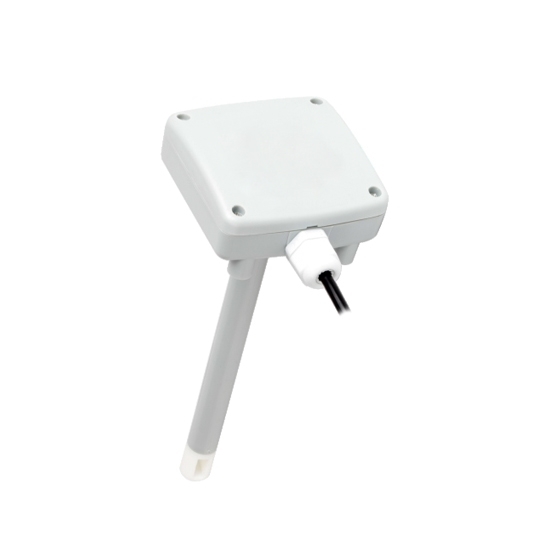

Wind Speed Anemometer Sensor, 0~30 m/s, Duct Mounted

Factory price duct mounted wind speed anemometer sensor is used for wind speed measurement in fields such as HVAC, power plant flue gas treatment, pipeline air flow, variable air volume system, operating room, purification room, biological laboratory, electronics and medical environment.

Specification

• Model: ATO-BRW200-206
• Supply Voltage: 12~24V DC
• Average Power Consumption: ＜1W
• Display Resolution (OLED): 128*64
• Signal Output (Optional): 4-20mA/0-5VDC/0-10VDC/RS485
• Measuring Range (Optional): 0~15m/s, 0~20m/s, 0~30m/s (Set by Software)
• Measuring Resolution: 0.01m/s
• Measuring Media: Air, N₂, Oil Fume Exhaust Gas
• Measuring Accuracy: ±(0.2+2%FS) m/s
• Working Temperature: -10℃~+50℃

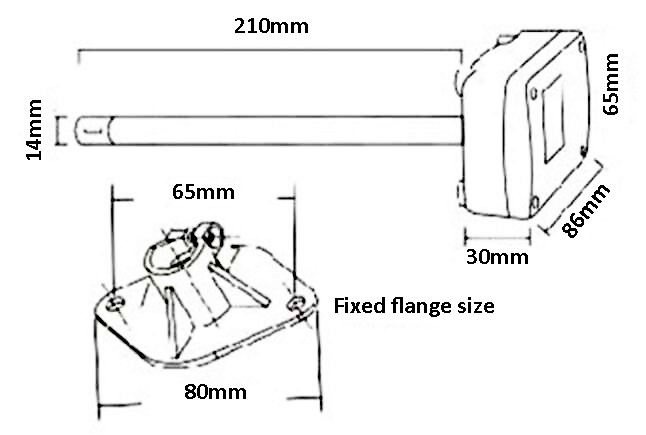

Installation Diagram

Note: When installing, the arrow should be consistent with the wind direction.

Tips: What is a duct mounted wind speed anemometer?

The duct mounted wind speed anemometer is mainly used for wind speed measurement in pipes, oil fume pipes and other harsh environments. It has good anti-erosion, anti-corrosion, anti-condensation and other characteristics. At the same time, it is used together with the internal smooth bearing system to effectively ensure the accuracy of information collection. It is an intelligent instrument with convenient use, good performance and high reliability.

The pressure measurement of the gas in the air duct should be carried out in the pipe section where the air flow is relatively stable. During the test, the static pressure, dynamic pressure and total pressure of the gas need to be measured. The orifice for measuring the full pressure of the gas should face the direction of the airflow in the air duct, and the orifice for measuring the static pressure should be perpendicular to the direction of the airflow. When using a U-shaped pressure gauge to measure total pressure and static pressure, the other end should be open to the atmosphere. Therefore, the pressure read on the pressure gauge is the pressure difference between the gas pressure in the air duct and the atmospheric pressure. Atmospheric pressure is generally measured with an atmospheric pressure gauge. Since the total pressure is equal to the algebraic sum of the dynamic pressure and the static pressure, only two of the values can be measured, and the other value can be obtained by calculation.
