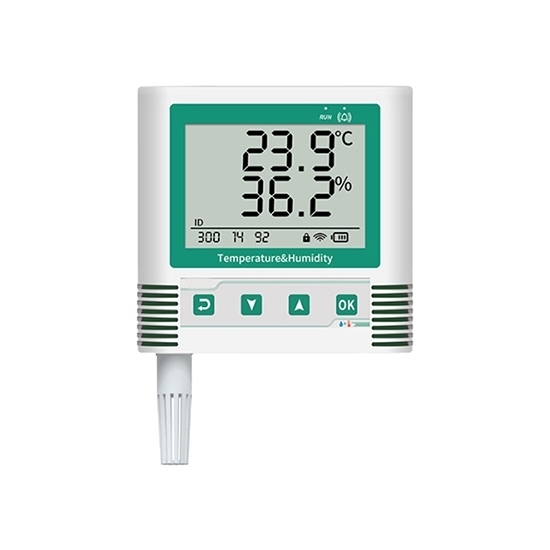

WIFI Temperature and Humidity Sensor with Display

$186.98

WIFI temperature and humidity sensors are designed for high accuracy and are suitable for a wide range of applications requiring environmental monitoring. Provides smart measurement of temperature and humidity with optional humidity accuracy of ±2%RH or ±3%RH. It supports 10~30V DC power supply, has a digital display for real-time monitoring of temperature and humidity data, and integrates a dual-band 2.4GHz and 5GHz WIFI interface to ensure efficient data transmission.

Humidity Accuracy *

SKU: ATO-TAHS-WIFI

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Favourable WIFI temperature and humidity sensor for sale has a clear display and is suitable for places with strict requirements on ambient temperature and humidity. It supports 10~30V DC power supply and is equipped with dual-frequency WIFI communication interface, compatible with 2.4GHz and 5GHz wireless network to achieve stable data transmission. Temperature and humidity are displayed at a high resolution of 0.1°C and 0.1%RH, and the data is updated once per second to ensure instant response to environmental changes.

Specification

Model	ATO-SN-3006-WS-WIFI
Power Supply	10~30V DC
Communication Interface	Standard WIFI wireless (2.4GHz/5GHz)
IP Address	Supports static IP address, IP address auto-acquisition function, cross-gateway, domain name resolution, and WAN connectivity
WIFI Communication Parameters	Support 802.11b/g/n wireless standard
WIFI Encryption Performance	Supports WPA/WPA2 security mode
A Quasi Accuracy	Humidity: ±2%RH (60%RH,25℃)
A Quasi Accuracy	Temperature: ±0.4℃ (25℃)
B Quasi Accuracy	Humidity: ±3%RH (60%RH,25℃)
B Quasi Accuracy	Temperature: ±0.5℃ (25℃)
Transmitter Circuit Operating Temperature	-20℃~+60℃, 0%RH~80%RH
Probe Working Temperature	-40°C~+120°C, default-40°C~+80°C
Probe Working Humidity	0%RH-100%RH
Temperature Display Resolution	0.1℃
Humidity Display Resolution	0.1%RH
Temperature and Humidity Refresh Time	1s
Long-term Stability	Humidity: ≤1%RH/y
Long-term Stability	Temperature: ≤0.1℃/y
Response Time¹	Humidity: ≤25s (1m/s wind speed²)
Response Time¹	Temperature: ≤8s (1m/s wind speed²)
Data Upload Time	Default 20s/time, 1s~10000s can be set
Internal Storage	Recording period 1min-1h can be set, recording capacity: 65000 groups

Features

Large LCD Real-time Display: This wireless temperature and humidity sensor comes with a large LCD screen, which can display the real-time temperature and humidity values and temperature and humidity extremes, and the temperature unit of Celsius and Fahrenheit temperature can be freely selected.
Strong Endurance: Built-in high-capacity lithium battery, a charging endurance of 120 days, can be used for long-term charging of the battery without loss.
Equipment Alarm: Built-in buzzer can be set directly on the humidity sensor upper and lower limit values, but also through a quick button to open or close the buzzer alarm.

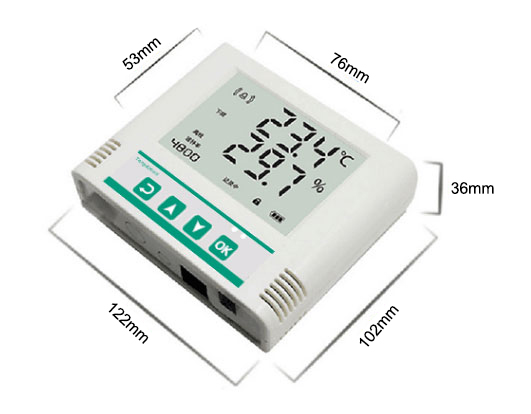

Dimensional Drawing (unit: mm)

WIFI temperature and humidity sensor size

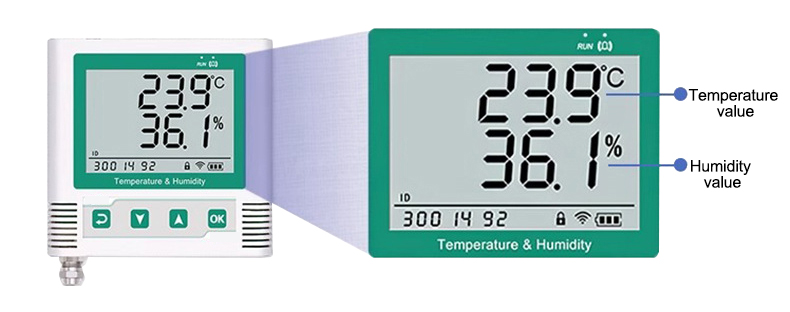

Details

WIFI temperature and humidity sensor detail

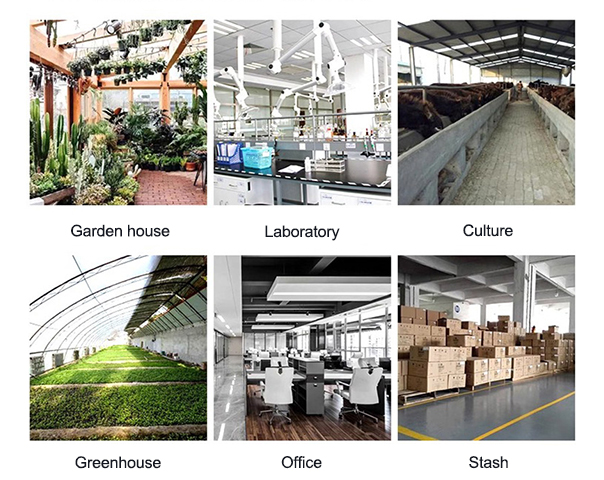

Application

Tips: How does this WiFi temperature and humidity sensor connect to the internet?

The WiFi temperature and humidity sensor connects via a wireless WiFi network, eliminating the need for an additional gateway device. Firstly, ensure that the sensor is within range of a WiFi signal and configure it using the mobile app provided. Once the app is open, follow the instructions to connect to the WiFi network where the sensor is located, which typically supports the 2.4GHz band. After the connection is complete, you can view temperature and humidity data in real time on your mobile phone for temperature humidity sensor management and alarm settings.
