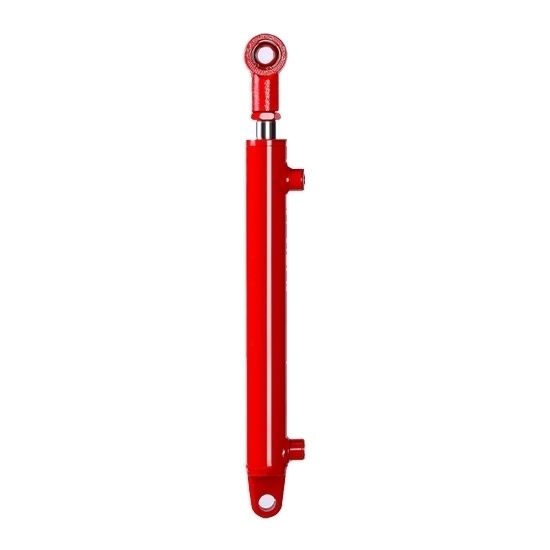

    Double Acting Welded Hydraulic Cylinder, 24 inch (600mm) Stroke

    $238.69
    24 inch (600mm) stroke double acting welded hydralic cylinder is avaliable in bore diameters of 40mm, 50mm, 63mm, 80mm and 100mm, load capacity 2/ 3/ 5/ 8/ 12 ton. This welded clevis hydraulic cylinder operates in both directions, providing precise control over the extension and retraction of a piston rod.
    *
    SKU: ATO-WHC-600MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The price of the double acting welded hydraulic cylinders depend on bore diameters and stokes, making them suitable for a wide range of applications. Whether it's lifting heavy loads in a car repair shop or powering the hydraulic system of a dump truck, these welded clevis hydraulic cylinders are essential components for efficient and reliable mechanical operations.

    Specification

    Model ATO-HSG40600 ATO-HSG50600 ATO-HSG63600 ATO-HSG80600 ATO-HSG100600
    Acting Type Double Acting
    Stroke 24 inch (600mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    ATO-HSG40600

    40mm bore welded hydraulic cylinder dimension

    ATO-HSG50600

    50mm bore welded hydraulic cylinder dimension

    ATO-HSG63600

    63mm bore welded hydraulic cylinder dimension

    ATO-HSG80600

    80mm bore welded hydraulic cylinder dimension

    ATO-HSG100600

    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40600 40 50 25 600 18*1.5 20 830 880
    ATO-HSG50600 50 60 28 600 18*1.5 20 840 890
    ATO-HSG63600 63 73 35 600 18*1.5 30 870 940
    ATO-HSG80600 80 90 50 600 18*1.5 40 900 980
    ATO-HSG100600 100 112 63 600 22*1.5 50 970 1060

    Tips: Hydraulic cylinder for press machine

    A hydraulic cylinder is a crucial component in press machines, serving as the primary actuator responsible for generating force and motion. It operates based on the principles of fluid mechanics, utilizing pressurized hydraulic fluid to produce linear motion and apply force. When pressurized fluid is introduced into one side of the cylinder, it pushes a piston, which, in turn, moves a rod or plunger. This movement can be precisely controlled, allowing for the application of substantial force over a small area. Hydraulic cylinders are favored for press machines due to their efficiency, reliability, and ability to deliver consistent force across a wide range of applications. They are essential in various manufacturing processes, such as metal forming, stamping, and forging, ensuring the successful production of a wide array of products with precision and consistency.
