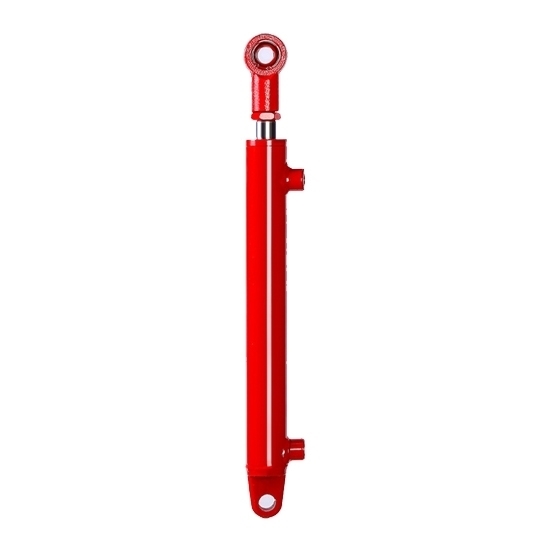

    Double Acting Welded Hydraulic Cylinder, 12 inch (300mm) Stroke

    $170.99
    ATO double acting welded clevis hydraulic cylinder with 12 inch (300mm) stroke is used in various hydraulic systems and applications, including mini excavators, robots, log splitters, dump trucks, press machine and dump trailers. Available in bore diameter of 40mm, 50mm, 63mm, 80mm and 100mm, load capacity 2/ 3/ 5/ 8/ 12 ton.
    *
    SKU: ATO-WHC-300MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Double acting welded hydraulic cylinder is a type of hydraulic cylinder used in various hydraulic systems to provide linear motion. Hydraulic cylinders are essential components in many industrial and mobile applications, such as mini excavators, robots, log splitters, dump trucks, press machine and dump trailers.

    Specification

    Model ATO-HSG40300 ATO-HSG50300 ATO-HSG63300 ATO-HSG80300 ATO-HSG100300
    Acting Type Double Acting
    Stroke 12 inch (300mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    ATO-HSG40300

    40mm bore welded hydraulic cylinder dimension

    ATO-HSG50300

    50mm bore welded hydraulic cylinder dimension

    ATO-HSG63300

    63mm bore welded hydraulic cylinder dimension

    ATO-HSG80300

    80mm bore welded hydraulic cylinder dimension

    ATO-HSG100300

    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40300 40 50 25 300 18*1.5 20 530 580
    ATO-HSG50300 50 60 28 300 18*1.5 20 540 590
    ATO-HSG63300 63 73 35 300 18*1.5 30 570 640
    ATO-HSG80300 80 90 50 300 18*1.5 40 600 680
    ATO-HSG100300 100 112 63 300 22*1.5 50 670 760

    Tips: Are welded hydraulic cylinders stronger pushing or pulling?

    Welded hydraulic cylinders are designed to handle both pushing and pulling forces effectively. The strength of a hydraulic cylinder is determined by its construction, materials, and the welding process. The critical factor in their strength is the quality of the welds. If properly welded, the cylinder's strength in pushing and pulling should be nearly equal, as the internal pressure and external load both act on the cylinder's housing and end caps.

    However, in practical applications, pulling forces can sometimes create additional stress due to factors like side loading or misalignment. It's important to ensure that the cylinder is installed and used correctly to prevent any potential issues. Regular maintenance and inspection are crucial to identify and address any signs of wear, fatigue, or damage that may compromise the cylinder's performance. In summary, welded hydraulic cylinders should be strong for both pushing and pulling, but their performance depends on proper construction, materials, and usage.
