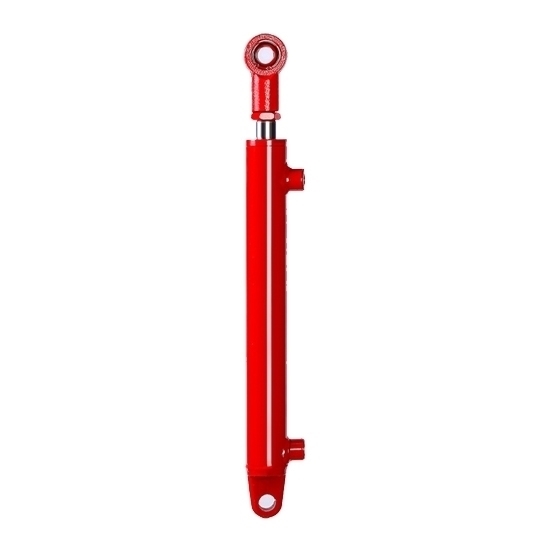

    Double Acting Welded Hydraulic Cylinder, 10 inch (250mm) Stroke

    $152.39
    Low price double acting welding hydraulic cylinder with 10 inch (250mm) stroke is used to convert fluid power into mechanical force or motion, bore diameters are available in 40mm, 50mm, 80mm and 100mm, load capacity 2/ 3/ 8/ 12 ton. This small welded clevis hydraulic cylinder is a key component in the hydraulic system and is suitable for small excavators, robots, and log splitters.
    *
    SKU: ATO-WHC-250MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Small double acting welded hydraulic cylinder consists of a cylindrical barrel, piston and end cover, all firmly welded together. These welded clevis hydraulic cylinders are available in various bore sizes and strokes and can be used in a wide range of industrial and mobile equipment, including mini excavators, robots, log splitters, dump trucks, press machine, dump trailers, etc.

    Specification

    Model ATO-HSG40250 ATO-HSG50250 ATO-HSG80250 ATO-HSG100250
    Acting Type Double Acting
    Stroke 10 inch (250mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    ATO-HSG40250

    40mm bore welded hydraulic cylinder dimension

    ATO-HSG50250

    50mm bore welded hydraulic cylinder dimension

    ATO-HSG80250

    80mm bore welded hydraulic cylinder dimension

    ATO-HSG100250

    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40250 40 50 25 250 18*1.5 20 480 530
    ATO-HSG50250 50 60 28 250 18*1.5 20 490 540
    ATO-HSG80250 80 90 50 250 18*1.5 40 550 630
    ATO-HSG100250 100 112 63 250 22*1.5 50 620 710

    Tips: How much weight can a welded hydraulic cylinder lift?

    The weight a welded hydraulic cylinder can lift depends on various factors, including its design, size, operating pressure, and construction quality. Hydraulic cylinders are used to convert hydraulic pressure into mechanical force, making them powerful tools for lifting heavy loads. A cylinder's lifting capacity is determined by its bore size (the diameter of the piston), the operating pressure of the hydraulic system, and the effective area of the piston.

    For example, if you have a hydraulic cylinder with a 4-inch bore and it operates at a pressure of 3,000 PSI, the effective force it can generate would be around 6 ton (4 square inches x 3,000 PSI). This is a simplified calculation and doesn't account for factors like friction, inefficiencies, or the strength of the cylinder's materials.

    It's essential to consult the manufacturer's specifications and engineering calculations to ensure safety and optimal performance, as improper use or exceeding the cylinder's rated capacity can lead to failure or accidents.
