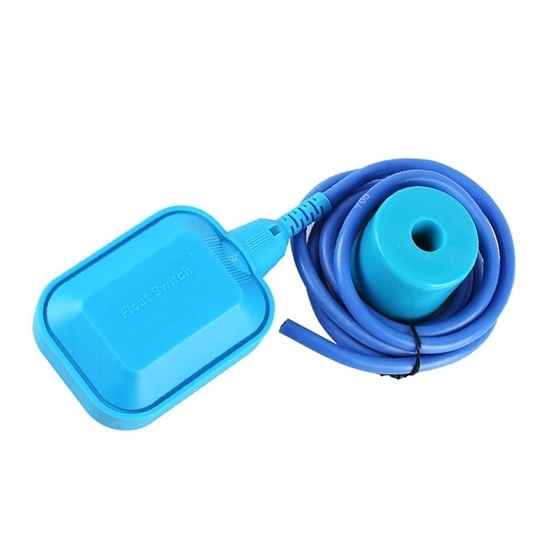

Water Level Float Switch, 220V

High quality cable float switch for sale online. It is a water level float sensor equipped with 2m~10m cable length, AC 220V operating voltage, 1100W rated power, strong corrosion resistance, and good insulation.

Specifications

• Model: ATO-EM15-2
• Working Voltage: AC 220V
• Measuring Medium: Water
• Working Temperature: 0~80°C
• Rated Power: 1100W
• Lead Length: 2m/3m/4m/5m/6m/7m/8m/10m
• Spherical Size: 129.5x78mm
• Liquid Contact Material: Silicone
• Installation Method: Vertical Installation

Dimension

Applications

Tips: What is a water level float switch?

A water level float switch is a device designed to monitor and control the liquid level in a container, such as a tank or a reservoir. It consists of a buoyant float connected to an electrical switch mechanism. As the liquid level rises or falls, the float moves with it. When the float reaches a predetermined level, it activates or deactivates the switch, triggering electrical signals.

Commonly used in industrial, commercial, and residential applications, water level float switches play a crucial role in automating processes like filling or draining tanks, controlling pumps, and preventing overflow or dry running. The two main types of float switches are vertical and horizontal, each suitable for specific applications. Vertical float switches are ideal for vertical mounting inside tanks, while horizontal float switches work well in narrow spaces.

The simplicity, reliability, and cost-effectiveness of water-level float switches make them valuable components in various liquid-level control systems, contributing to efficient and safe operations in diverse industries.
