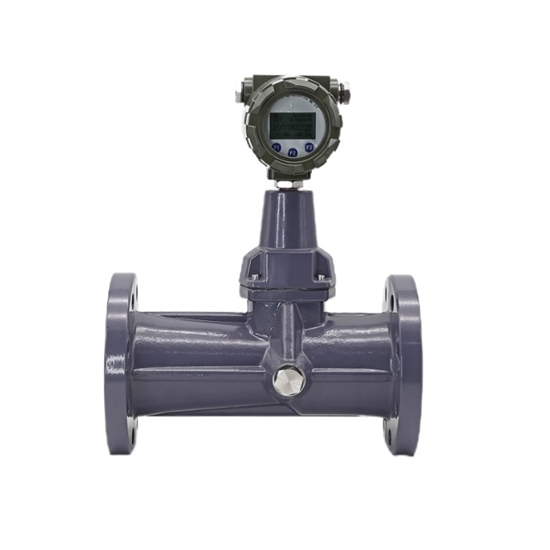

Vortex Flow Meter for Gas, Biogas/Air/Propane/Argon

Write a review

$1,089.84

Selling low price vortex flow meter for gas. Vortex flow measurement natural gas, biogas, propane, air, argon, etc. The gas flow meter has available calibers DN15-DN200, available output signal 4~20mA, 0-5V, 0-10V, 1.6Mpa work pressure. Vortex flowmeter focus on flammable and explosive gas flow measurement, suitable for petroleum, chemical, gas supply industry.

Nominal Diameter *
Output Signal *

SKU: ATO-FLOW-VFM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Affordable vortex flow meter is designed for measuring gas flow, including natural gas, biogas, propane, air, and argon. Vortex flow meter supports sizes from DN15 to DN200 and offers output signals like 4-20mA, 0-5V, and 0-10V. With a working pressure of 1.6 MPa, 1.5 accuracy class, vortex flow meter is ideal for measuring flammable and explosive gases in industries like petroleum, chemicals, and gas supply.

Specification

Nominal Diameter	DN15-DN200
Output Signal	4~20mA, 0-5V, 0-10V (optional)
Standard Conditions	P=101.325 kPa, T=293.15 K
Work Pressure	1.6 Mpa
Operating Conditions	Ambient Temp: -20~80°C, Pressure: 86~106 kPa, Environment Temp: -30°C~65°C, Relative Humidity: 5%~95%
Material	Aluminum Alloy (Stainless steel 304 available, contact customer service)
Accuracy Class	1.5
Range	1:25
External Power Supply	A. +24VDC±15%, ripple<5%, suitable for 4~20mA output, alarm output, RS485 etc.
External Power Supply	B. Internal: 1.2V 3.6V rechargeable battery
Power Consumption	A. External Power: <2W
Power Consumption	B. Internal: Average power <1mW, continuous use for more than one year
Display Function	A. Real-time display for temperature, pressure, flow, and alarm
Display Function	B. Alarm outputs: Flow rise/fall, Temperature rise/fall
Explosion Protection	Ex ib II BT4 (Safety)
Protection Grade	IP65
Electrical Interface	Internal thread M20*1.5 (order before delivery notice)
Applicable Medium	Gaseous Media (Biogas, air, propane, argon, etc.)

Feature

Stable Durability and Long Life: The vortex type flow meter features an integrated design with no moving parts, ensuring high durability and resistance to wear, requiring minimal maintenance for long-term operation.
High-Performance Integrated Circuit: Equipped with high-quality integrated circuits, the product offers exceptional precision and strong functionality in a compact design.
Intelligent Anti-Vibration Technology: With advanced domestic anti-vibration technology, this gas flow meter effectively suppresses vibrations and pressure-induced signals, offering robust resistance to external disturbances.
Multiple Output Options with Clear Display: The vortex flow meter supports 4-20mA analog signal output and an RS485 interface, allowing for easy connection to computers and networks, with data transmission capabilities of up to 1.2 km.

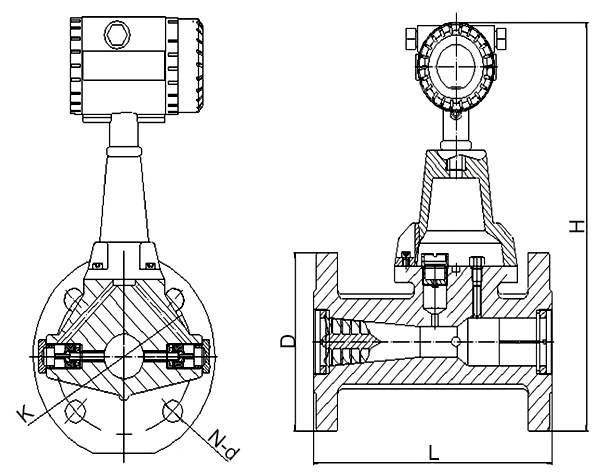

Dimension (Unit:mm)

Diameter (mm)	Max Pressure (MPa)	L	H	D	K	N-d
DN15	4	162	320	95	65	4-M12
DN20	4	162	325	105	75	4-M12
DN25	4	182	335	115	85	4-φ14
DN32	4	200	350	140	100	4-φ18
DN40	4	234	360	150	110	4-φ18
DN50	4	234	365	165	125	4-φ18
DN65	1.6	286	390	185	145	4-φ18
DN80	1.6	330	405	200	160	8-φ18
DN100	1.6	410	425	220	180	8-φ18
DN125	1.6	516	450	250	210	8-φ18
DN150	1.6	585	470	285	240	8-φ22
DN200	1.6	690	525	340	295	12-φ22

Component Display

Application

Tips: what is the vortex flow meter working principle?

The flow sensor has a flow profile similar to that of a venturi (figure below). In the inlet side of a set of spiral guide vane, when the fluid into the flow sensor, the guide vane forcing the fluid to produce intense vortex flow. When the fluid enters the diffusion section, the vortex flow by the role of reflux, began to make the second rotation, the formation of gyroscopic vortex into the phenomenon. The feed frequency and flow size is proportional to the size of the fluid is not affected by the physical properties and density of the fluid, the detection element to measure the frequency of the second rotation of the fluid into the frequency can be obtained in a wide range of flow rate within a good degree of linearity.

Signal amplified by the preamplifier, filtering, shaping converted to a pulse signal proportional to the flow rate, and then with the temperature, pressure and other detection signals are sent to the microprocessor for the cumulative processing, and finally in the LCD display shows the results of the measurements (instantaneous flow rate, cumulative flow rate and temperature, pressure data).
